Features & Details

Ensure the horsepower(HP) and the specifications on the nameplate for a precise match.It is important to match the required horsepower and specifications for your motor.Installing a lower horsepower motor can result in overheating and improper functioning.While the replacement parts are compatible with major brands, always verify the fitment with your specific application.

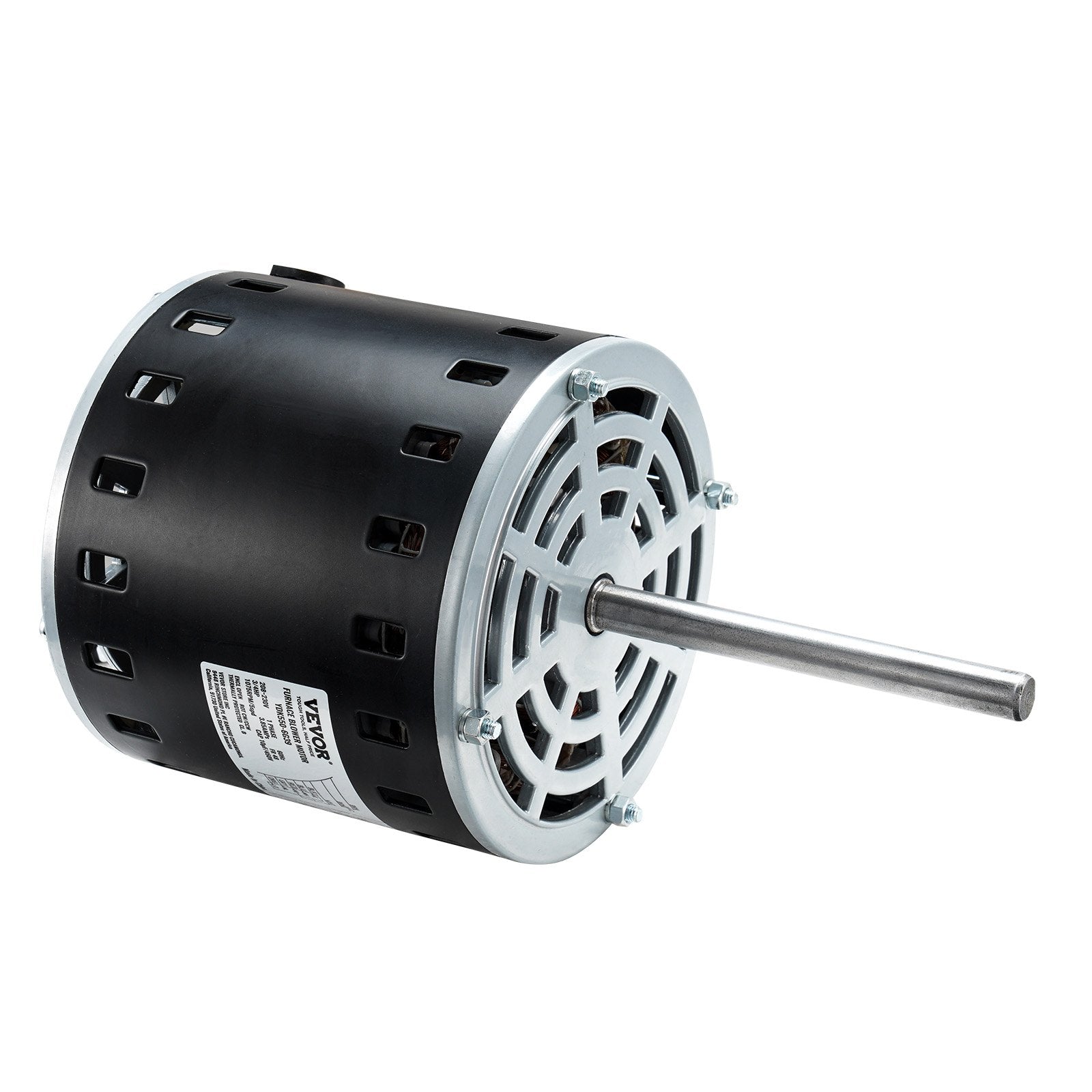

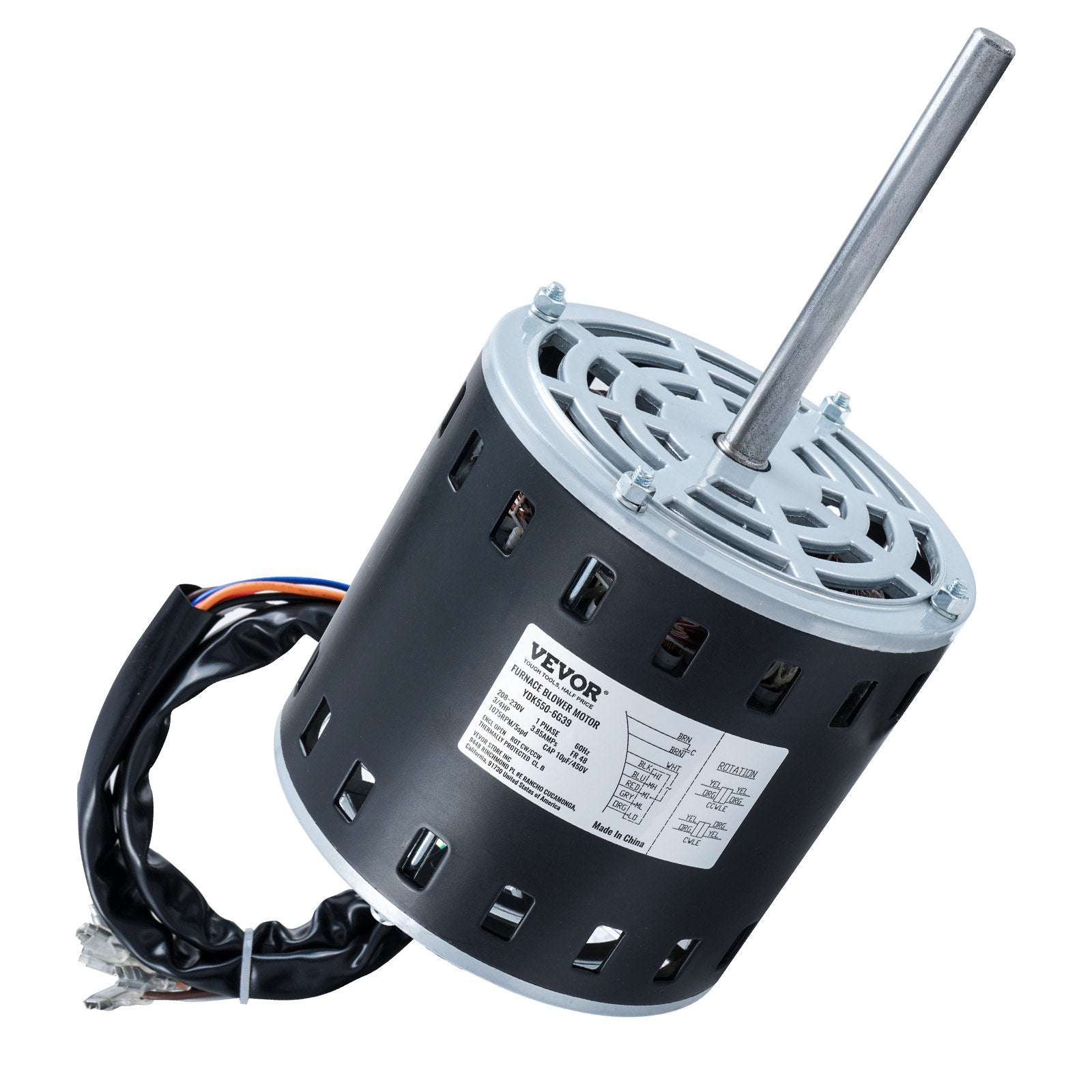

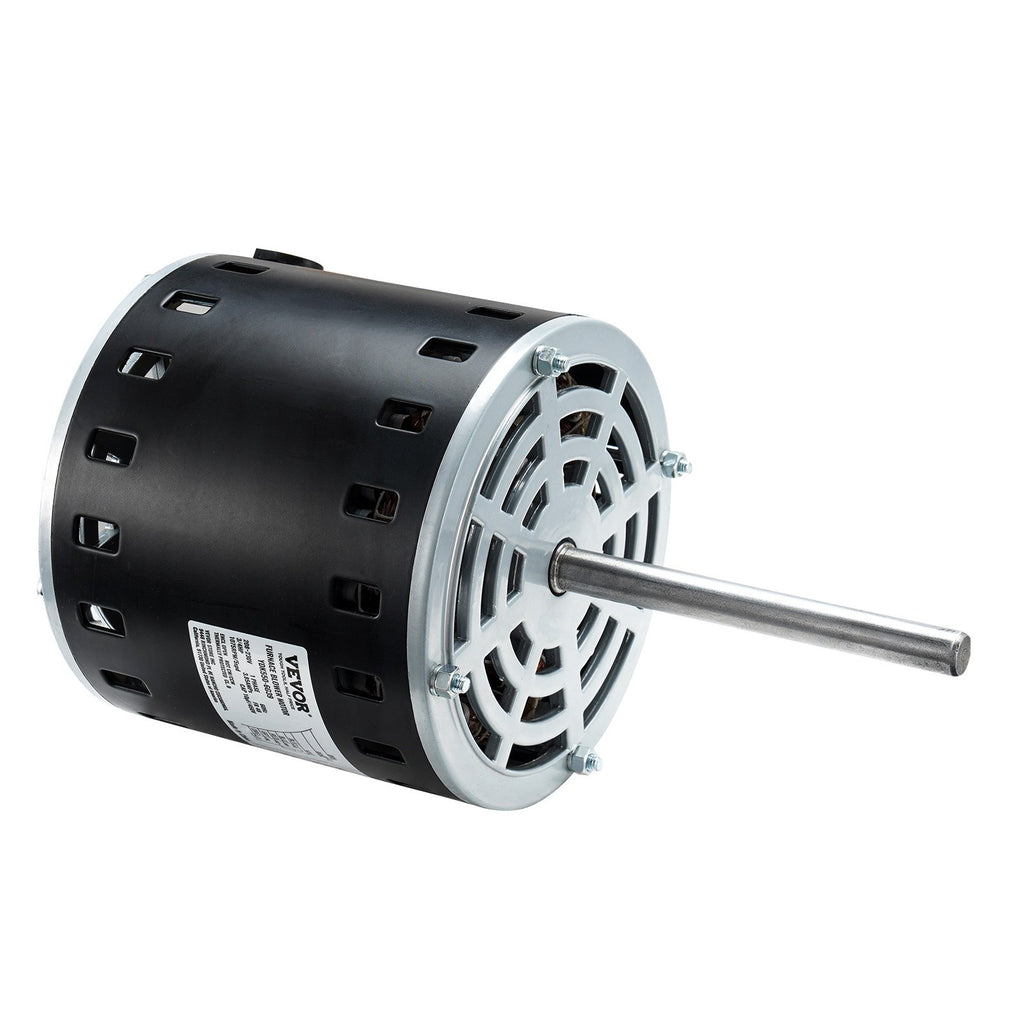

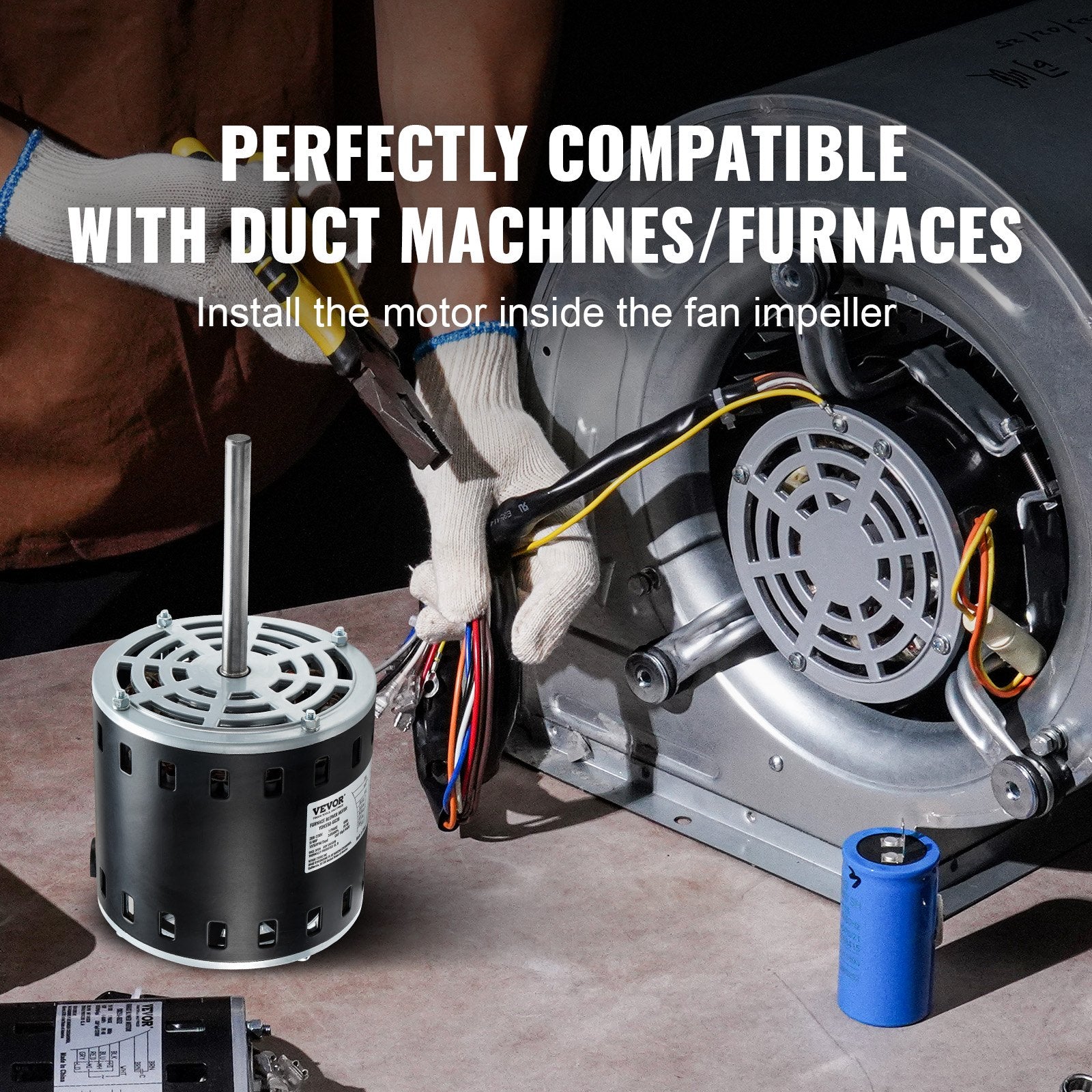

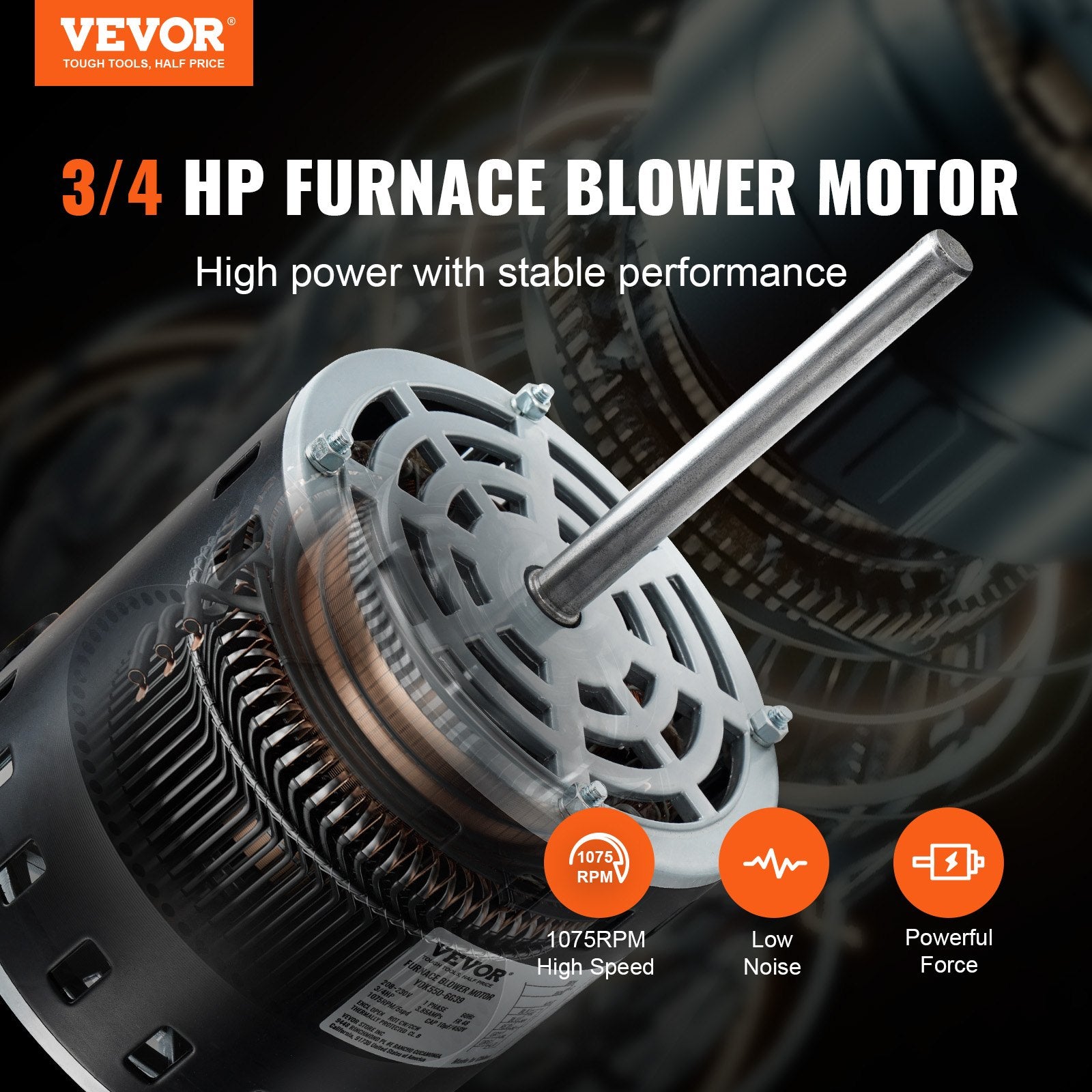

3/4HP Furnace Blower Motor: This motor has a power rating of 3/4 HP and operates at 1075 RPM with 5 different speeds.It requires a Full Load Amps of 3.85A and operates on a power supply of 208-230V.It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.

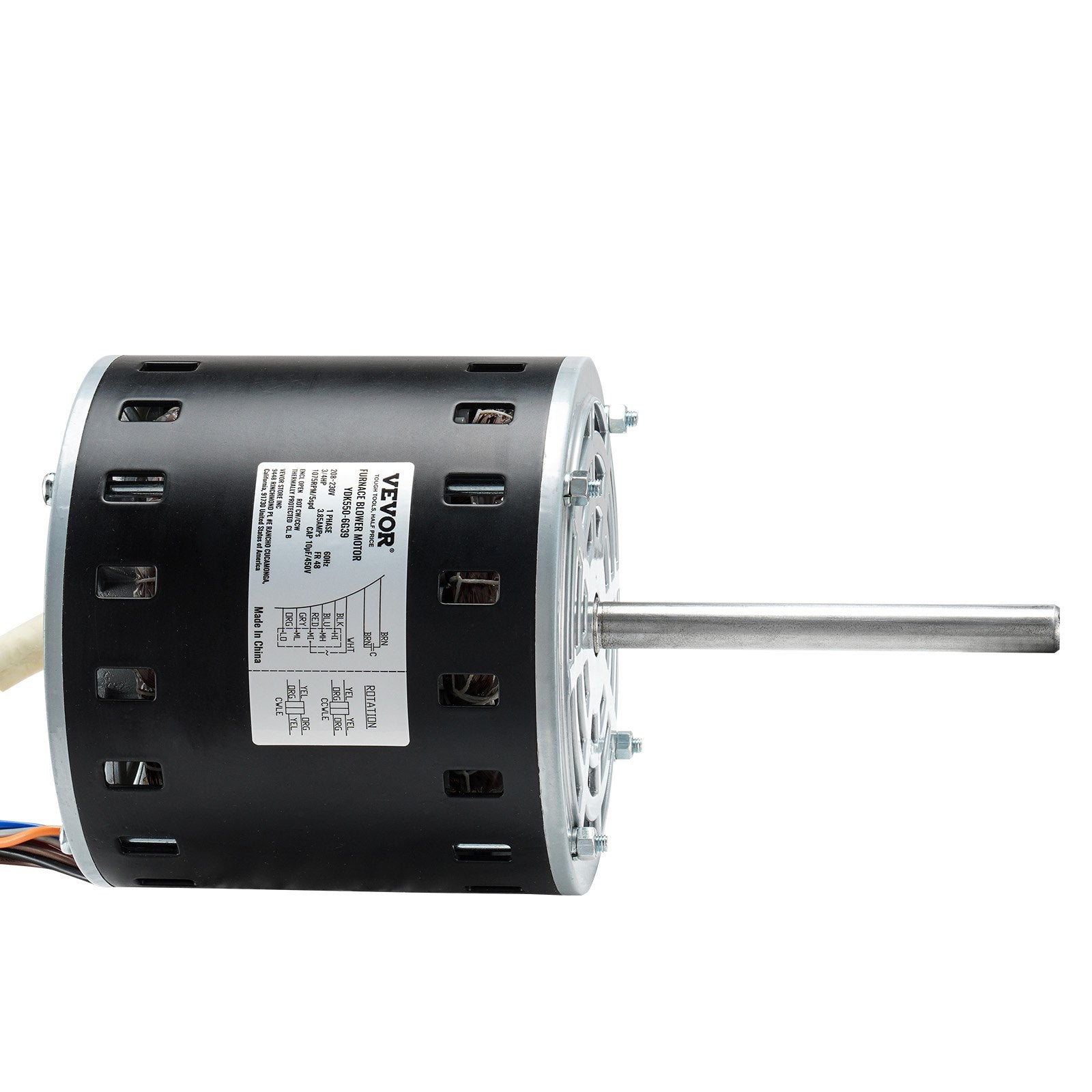

Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 4.8".It operates with strong and powerful performance, running at high speed while maintaining low noise levels.

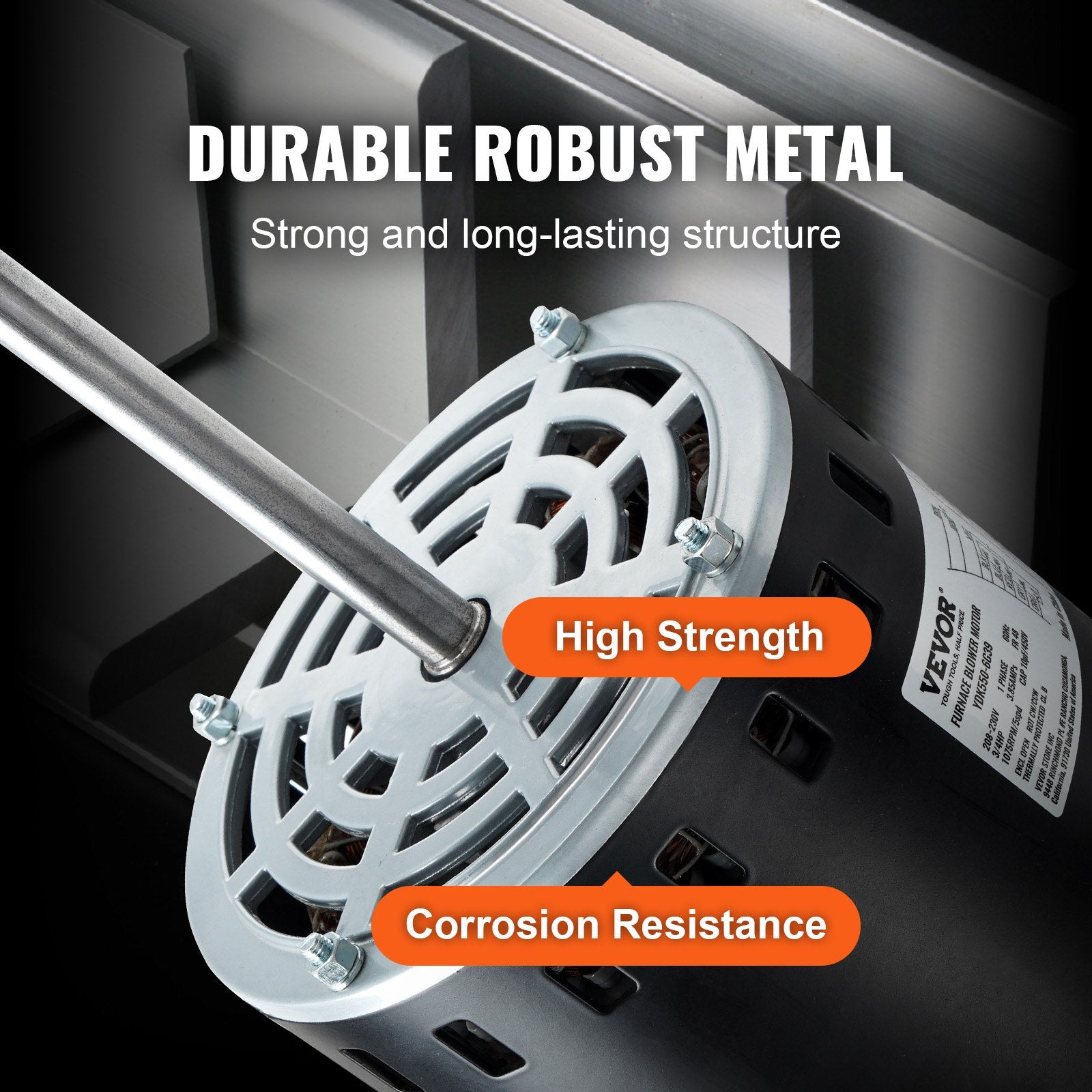

Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance.This robust construction effectively protects the engine, ensuring a longer service life.

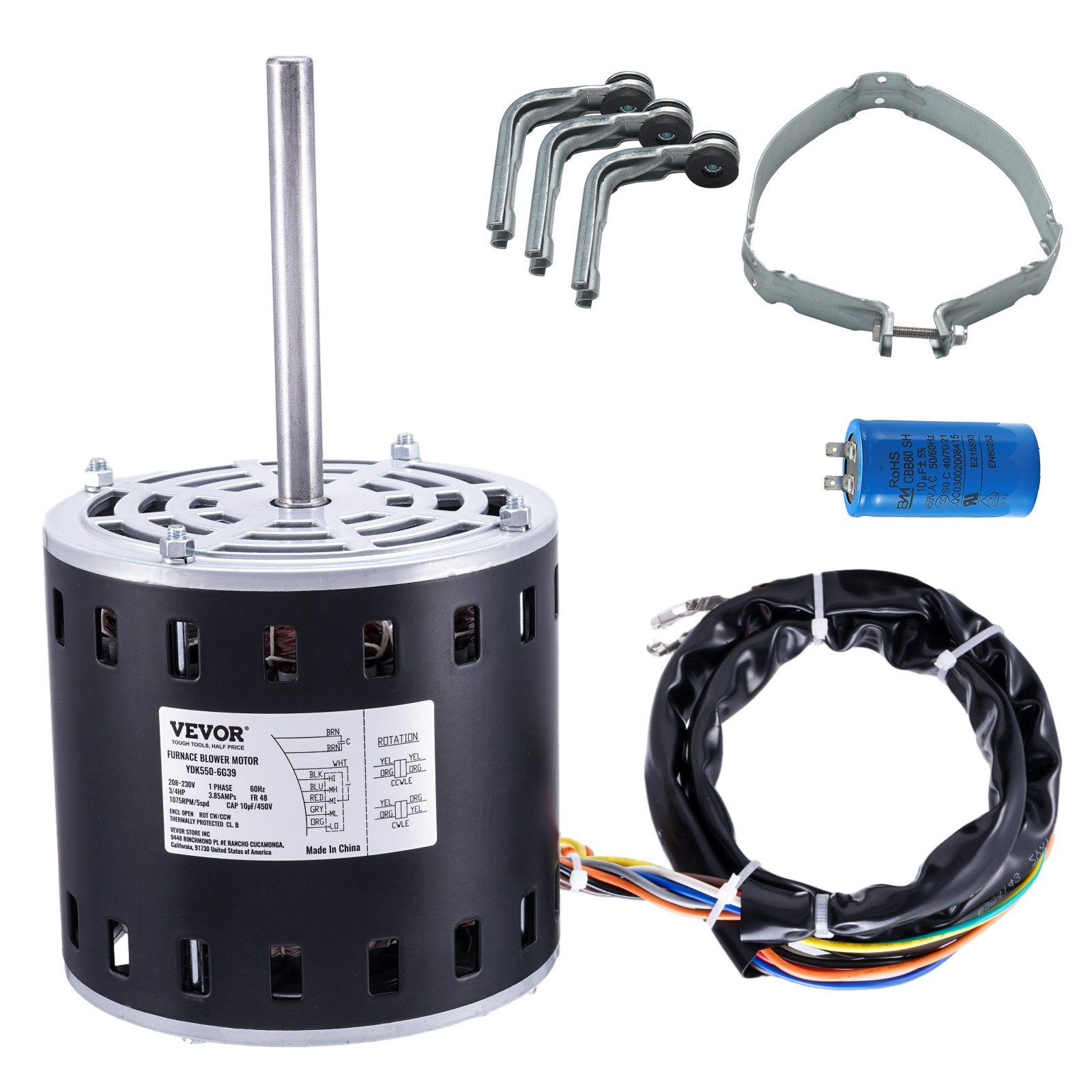

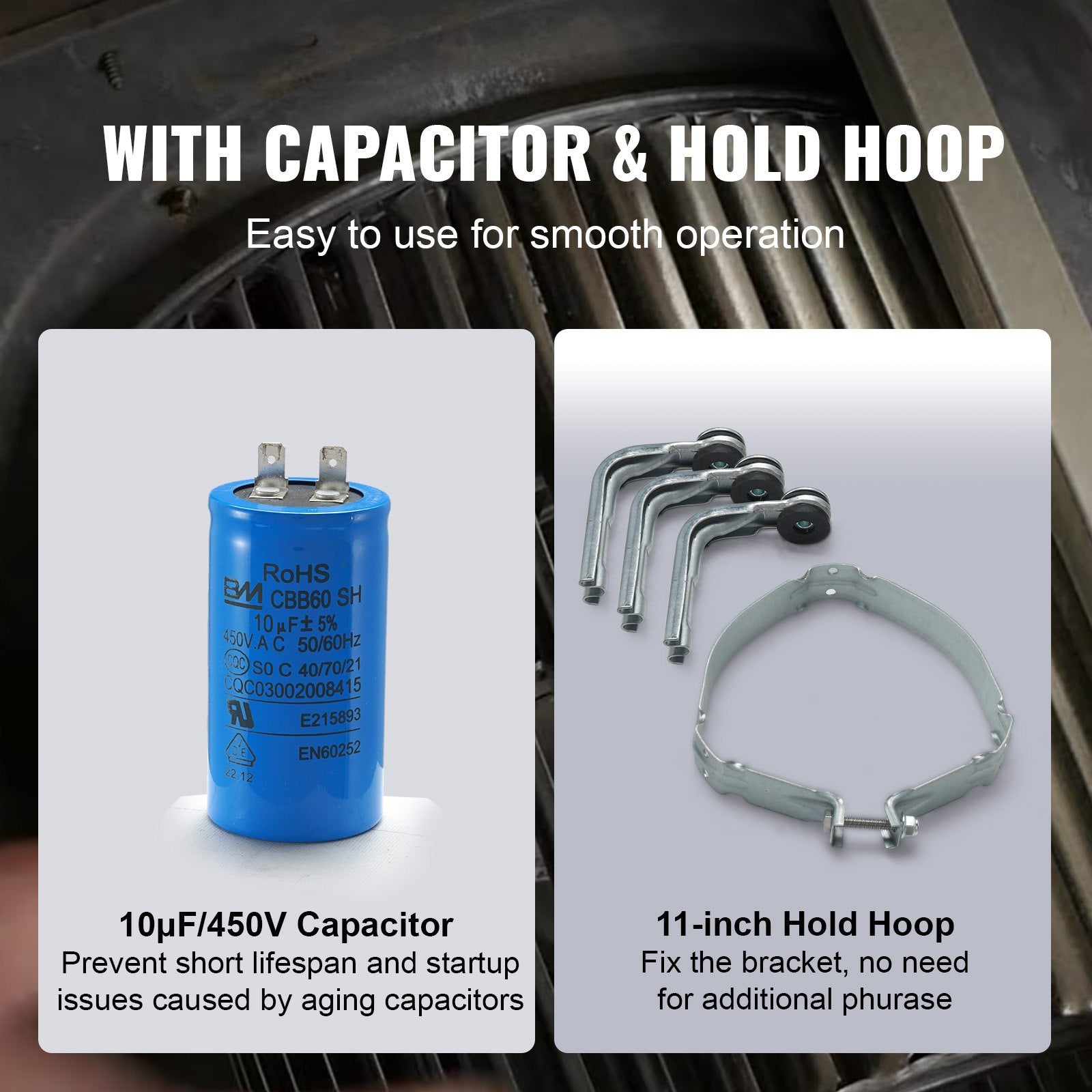

Convenient Accessories Included: The motor comes with convenient accessories, including the CBB60 10μF/450V capacitor.This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor.Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.

VEVOR 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10μF/450V Capacitor + 11" Hold Hoop
3/4HP Furnace Blower Motor
Convenient Accessories
Durable Material

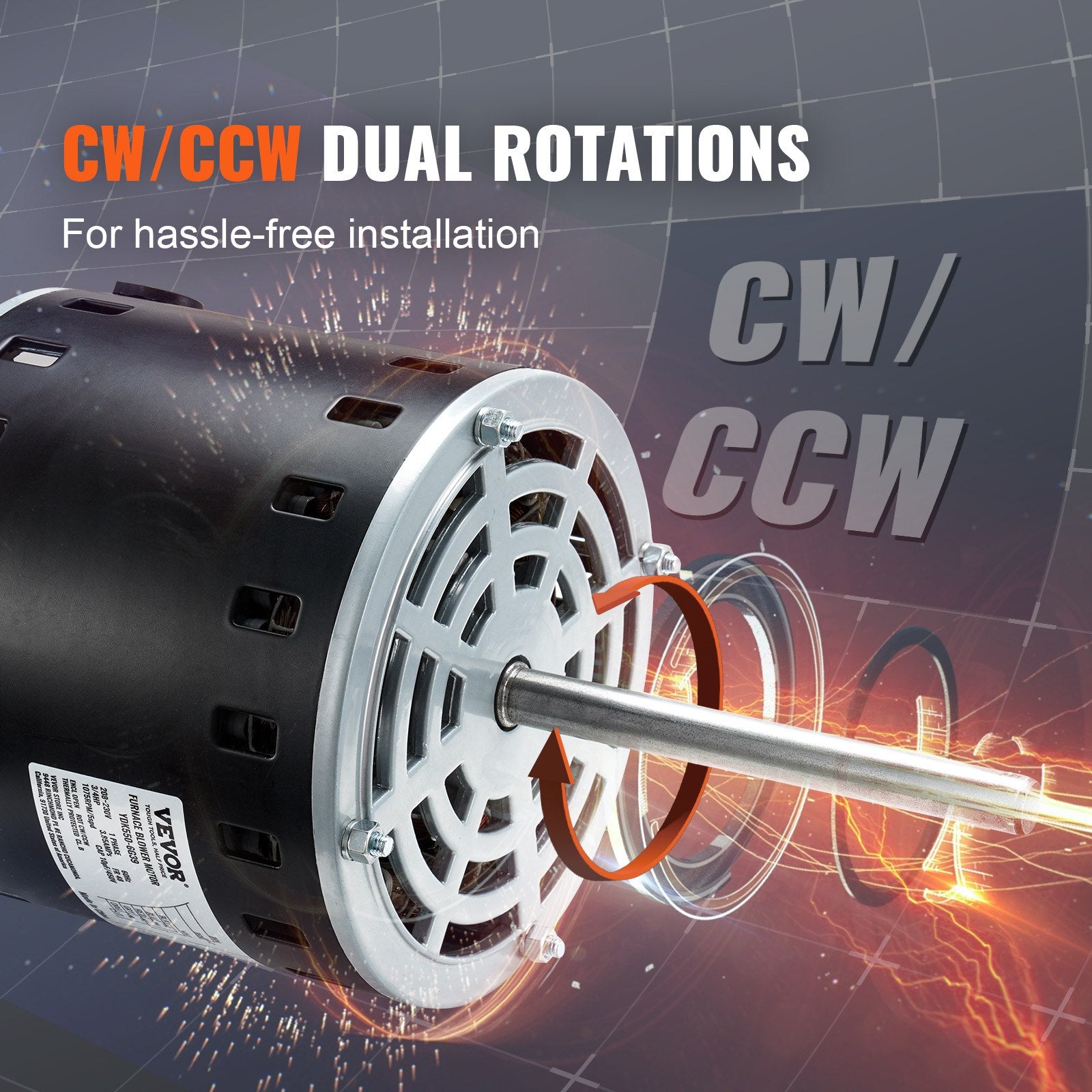

Dual Rotation
Wide Applications
10μF/450V Capacitor
Shaft Length: 4.8",Horsepower: 3/4HP,Voltage: 208-230V,Frequency: 60Hz,Shaft Diameter: 0.5",Rated Current: 3.85A,Number of Speeds: 5,Rotation: CW / CCW,Rotation Speed: 1075RPM,Frame Size: 48
