Features & Details

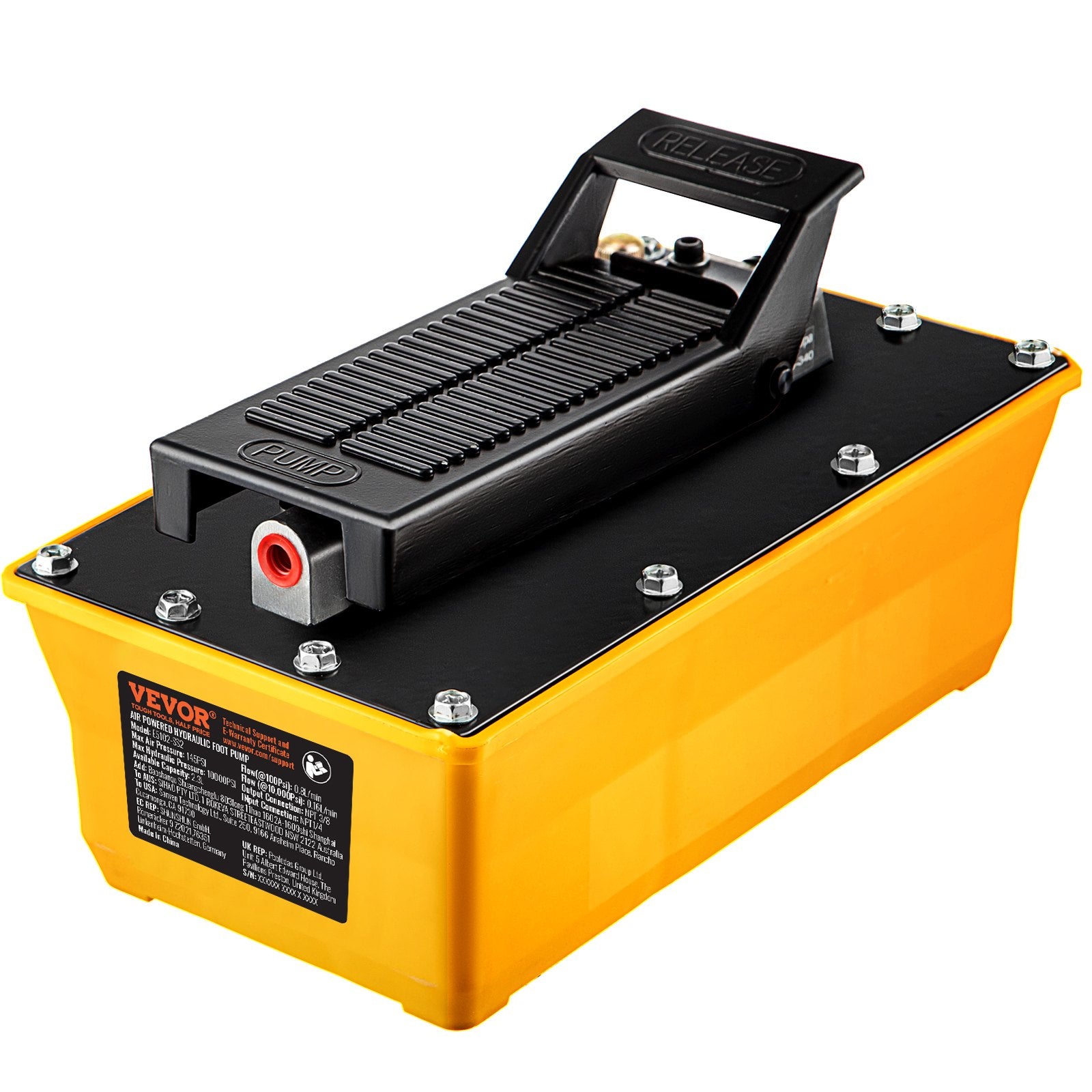

VEVOR Air Hydraulic Pump, 10,000 PSI Hydraulic Foot Pump, 0.6 Gal Reservoir Foot Operated Air/Hydraulic Pump, with Hose and Spray Gun for Heavy Machinery Rigging, Auto Repair, Auto Body Frame Machines

Key Features

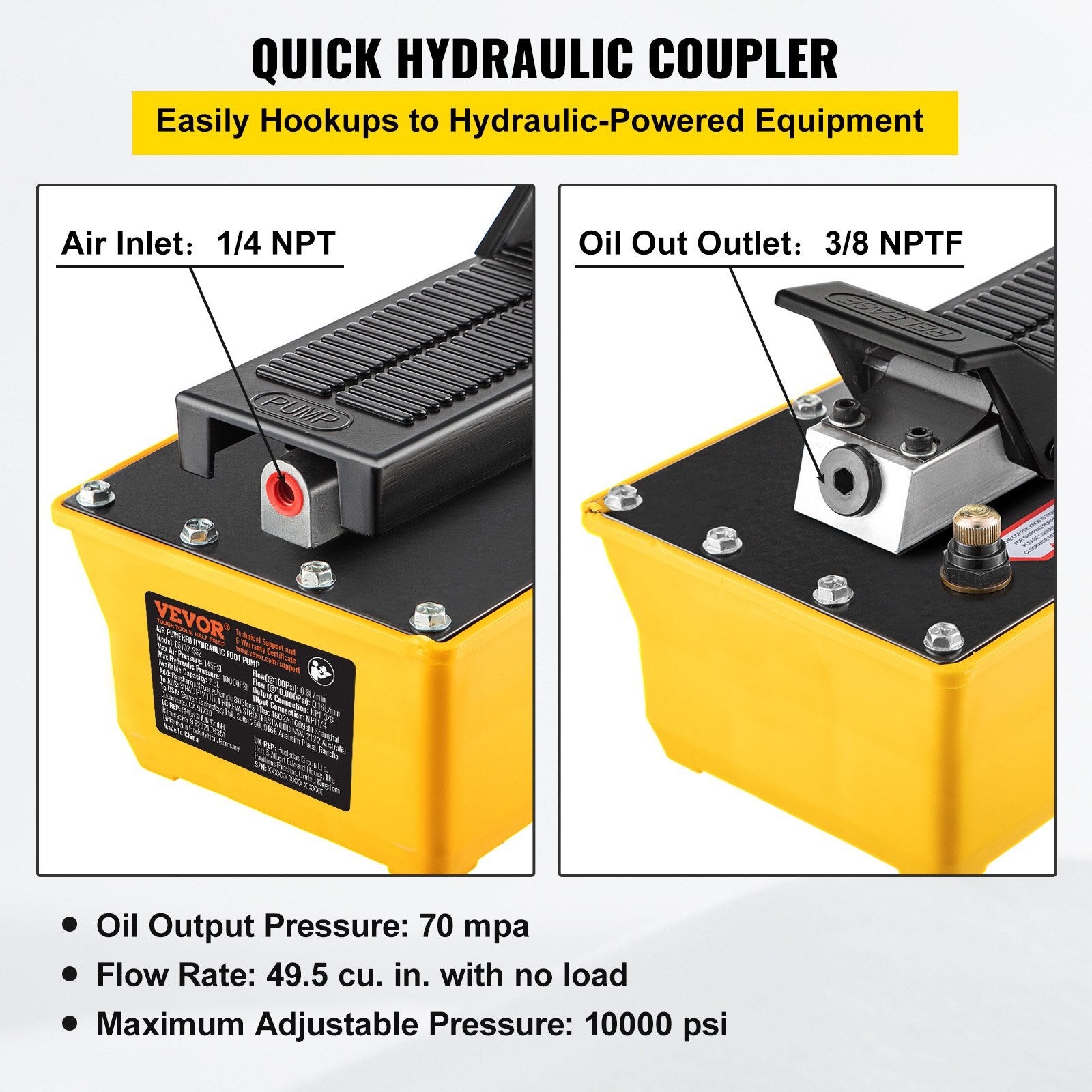

• Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI, which can be used for all 10-ton applications. Output oil hole: 3/8NPTF connection; Intake: 1/4NPT connection; Oil Output Pressure: 70mpa; Pressure Range: 0.7-1MPa.

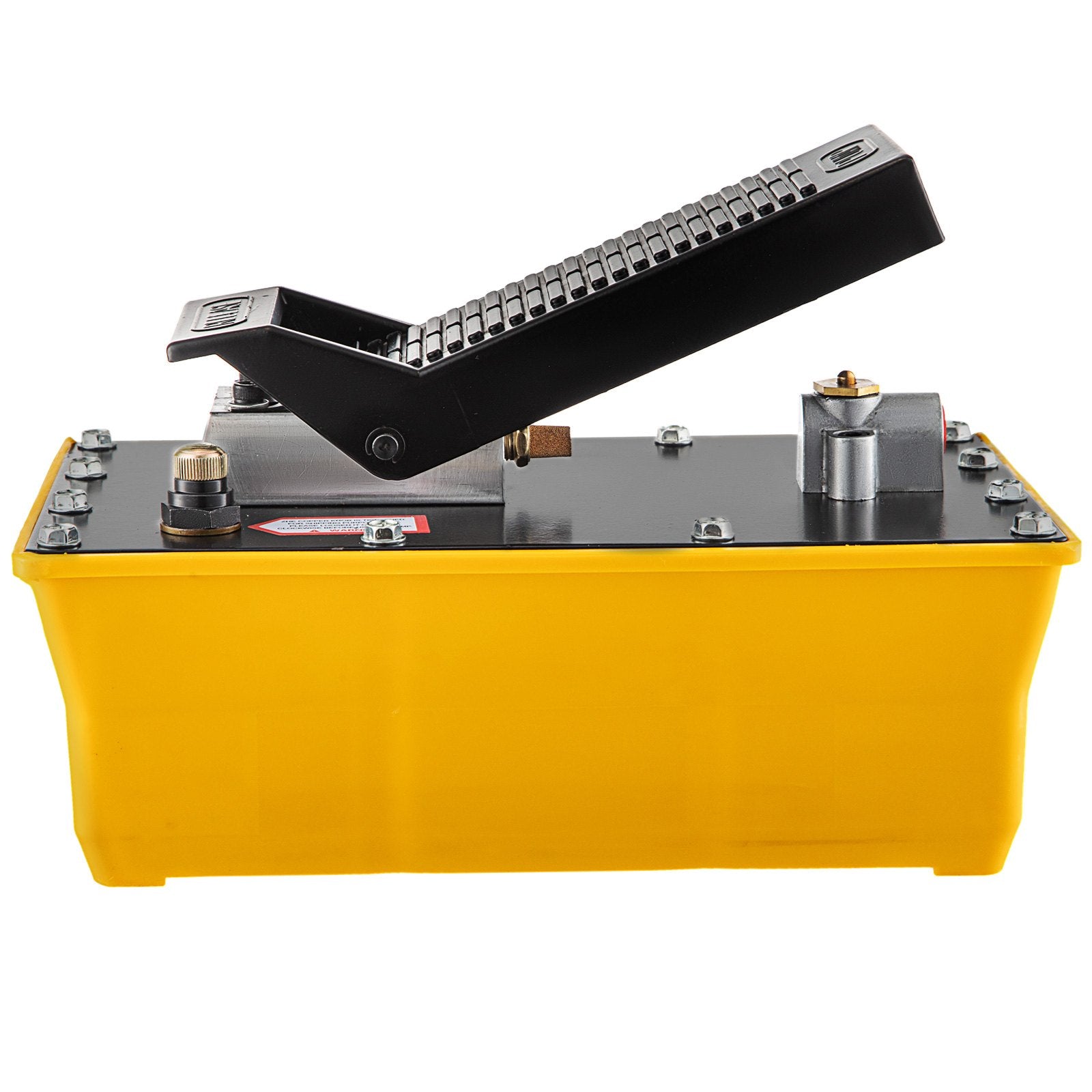

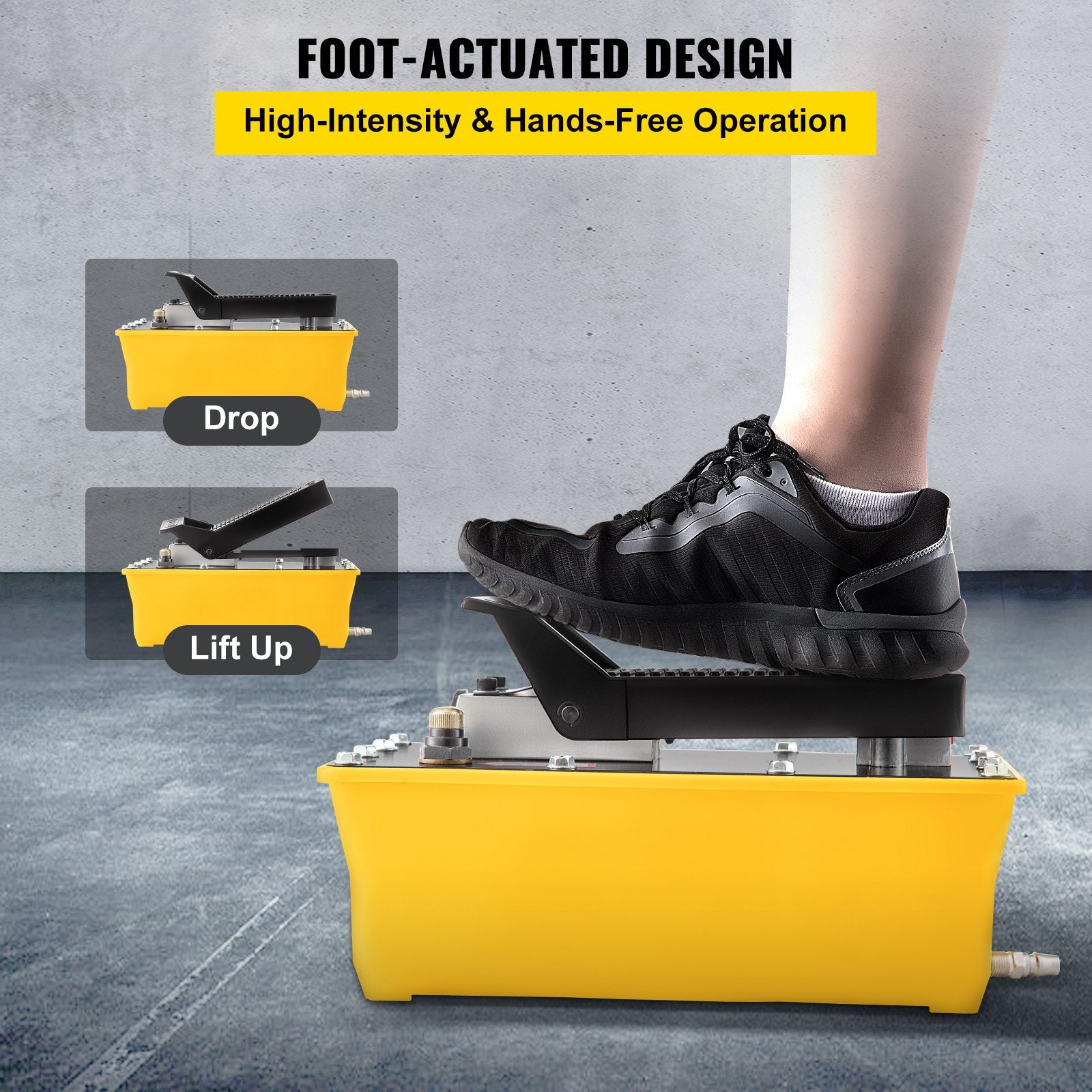

• Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, which is able to save the operator's time and effort with strong power and high output pressure.

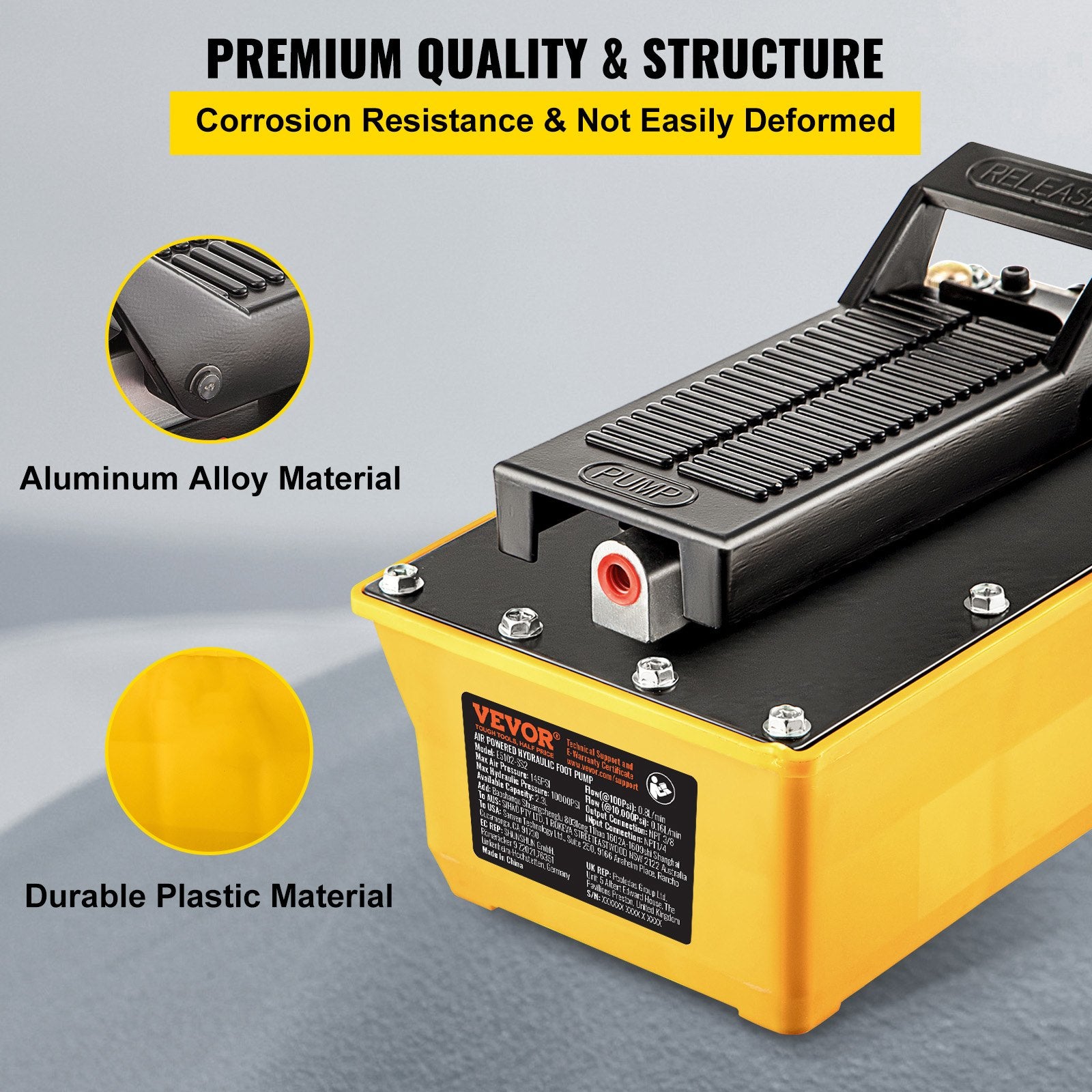

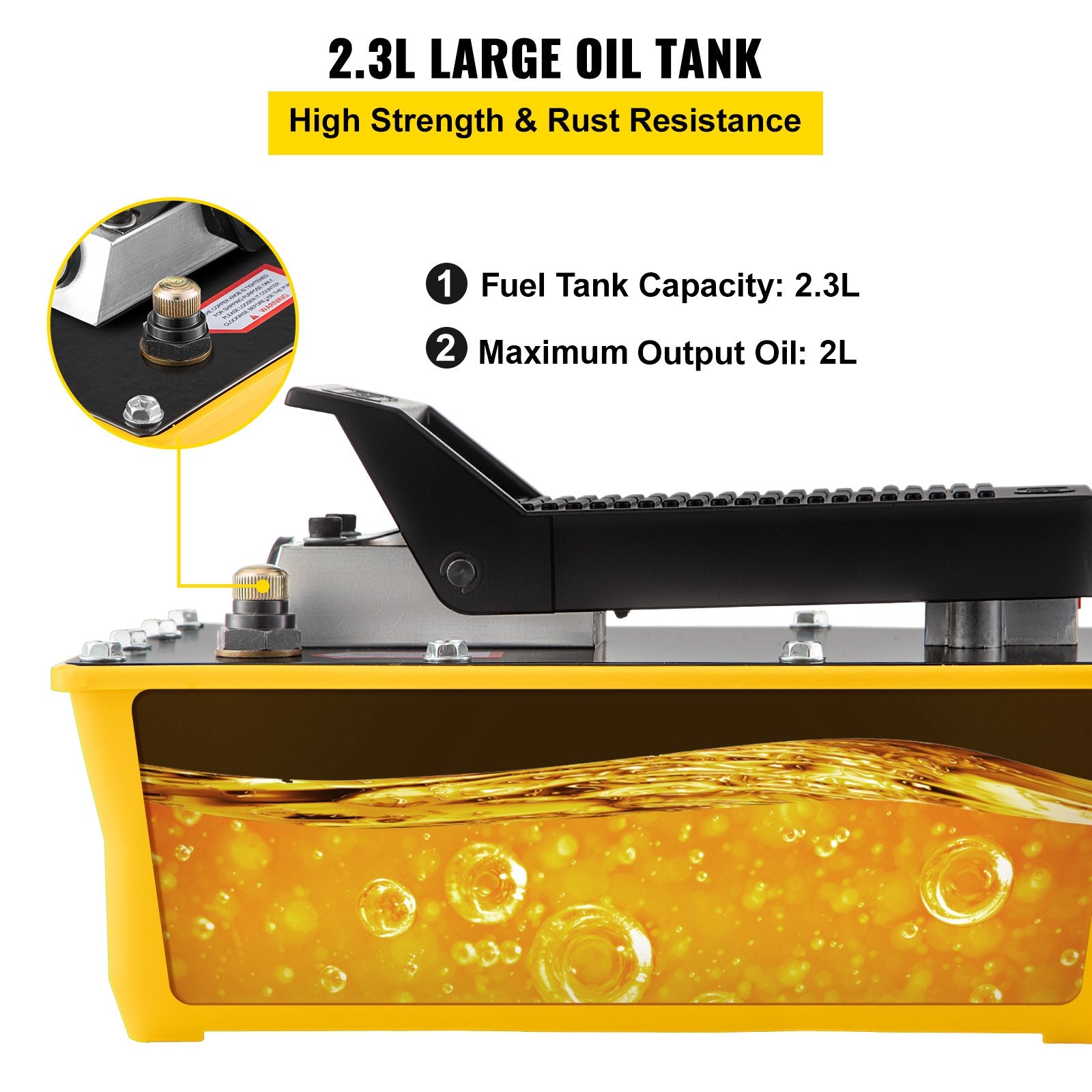

• Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality plastic shell to handle tough industrial applications.2.3L oil tank has a larger capacity with 2 liters maximum oil output.

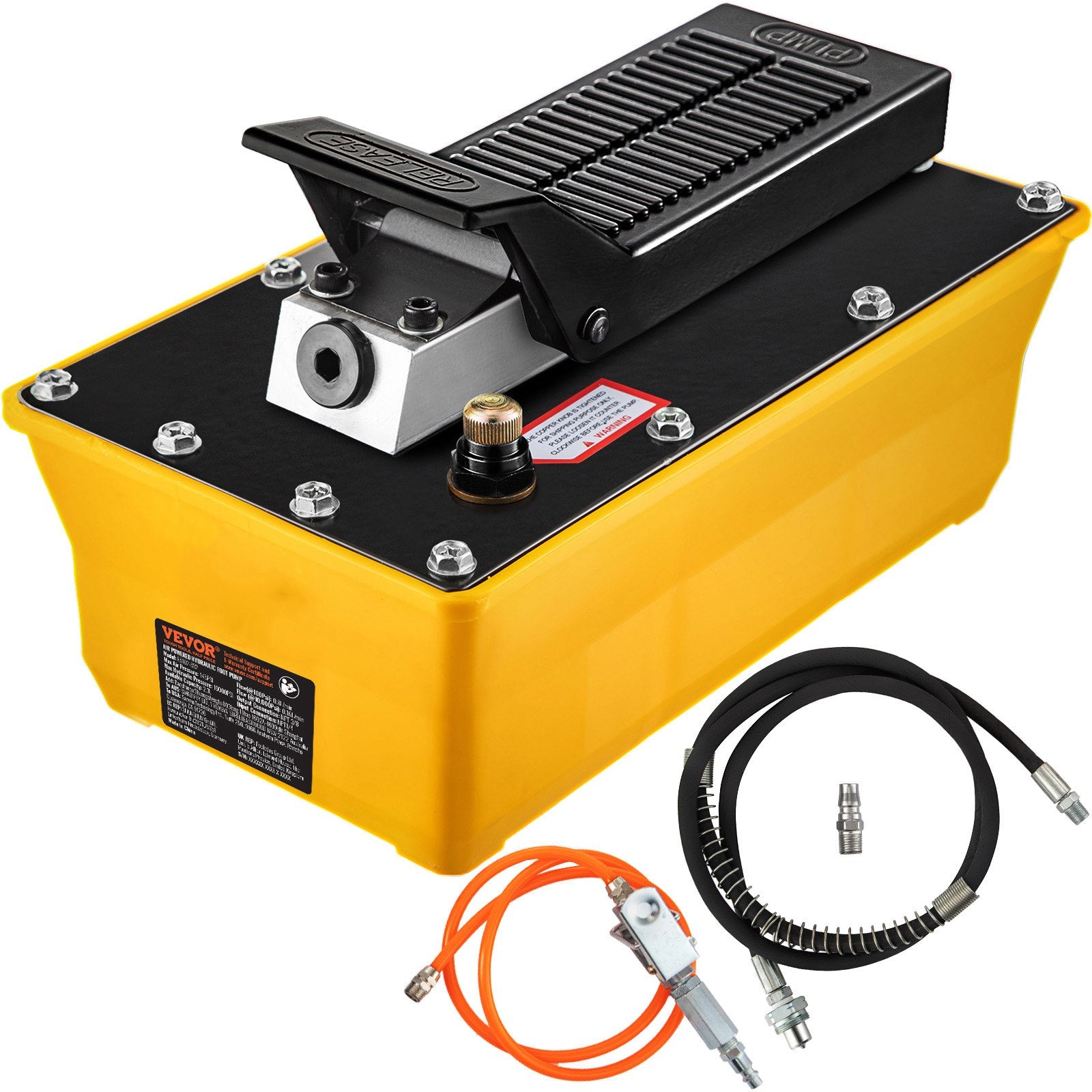

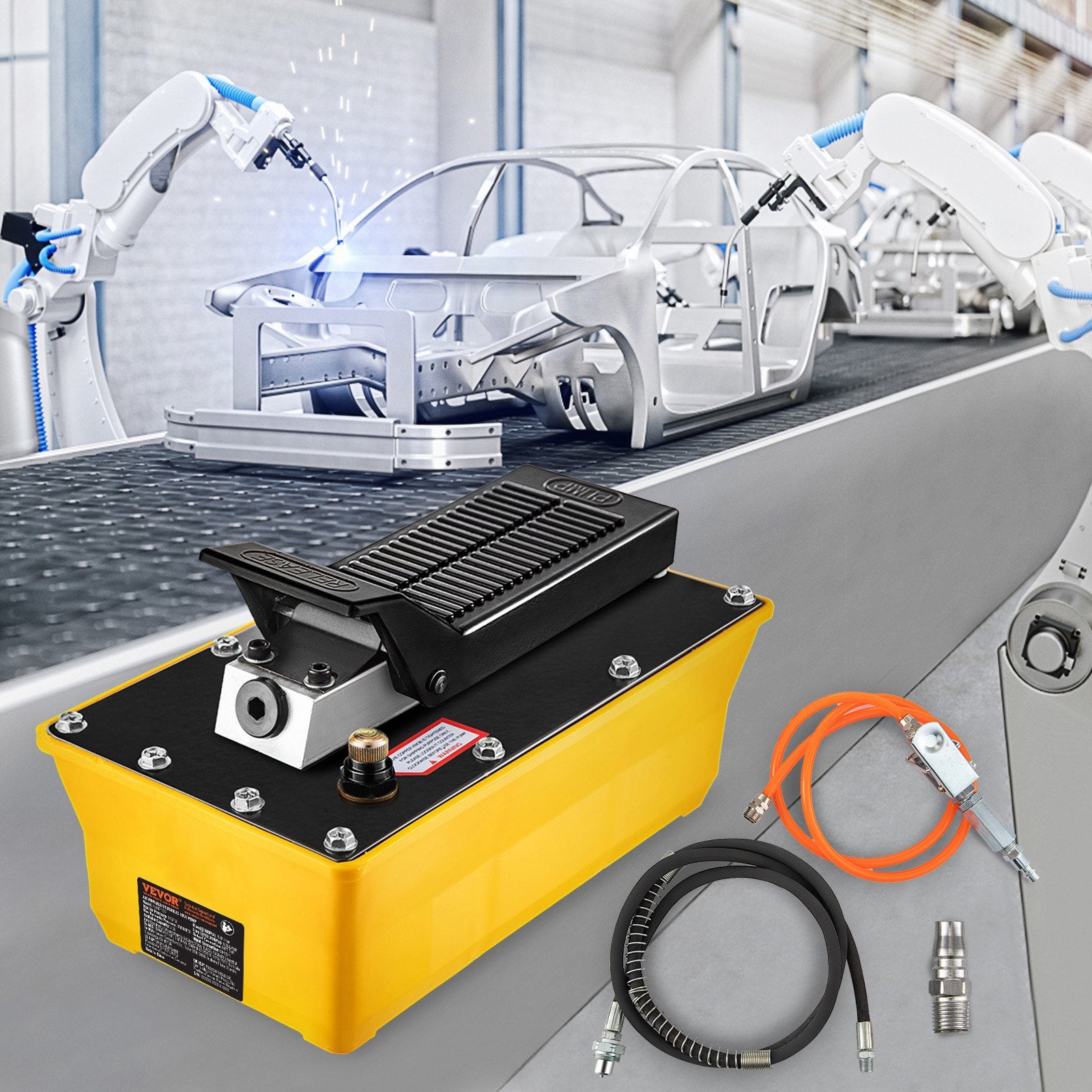

• Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 6.56 ft/200 cm high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included.

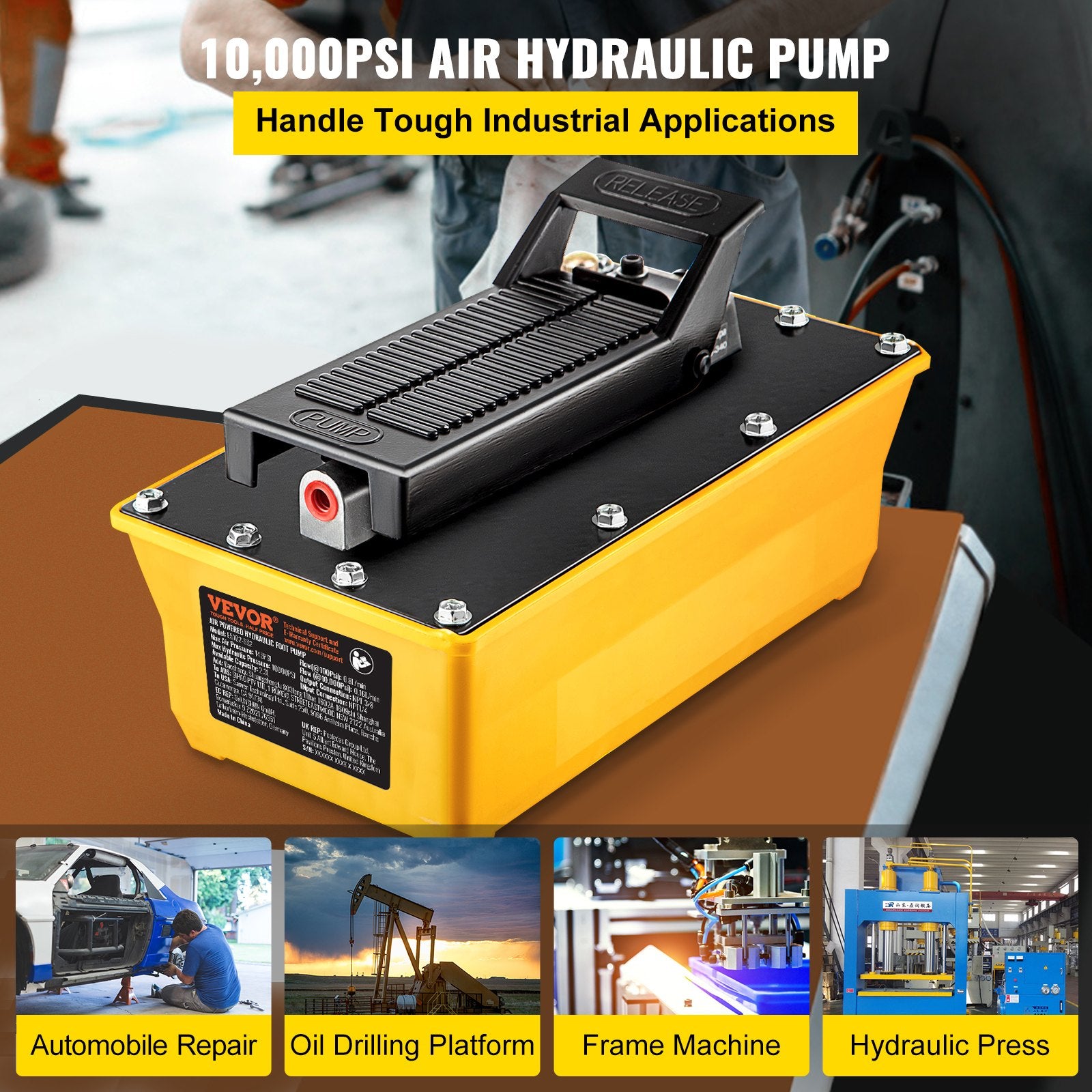

• 10,000 PSI for Wide Application: This hydraulic pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. It is a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Specification

• Maximum Output Oil: 2L
• Action: Single Acting
• Pressure Range: 0. 7-1MPa
• Maximum Adjustable Pressure: 10000 psi, 700 kg/square cm
• Oil Output Pressure: 70mpa
• Oil Pipe Length: 200 cm / 6. 56 ft
• Output Oil Hole: 3/8'' NPTF Connection
• Flow: 0. 75-0. 95 liters per minute
• Flow Rate: 49. 5 cu. in. with no load, 7.6 cu. in. with load

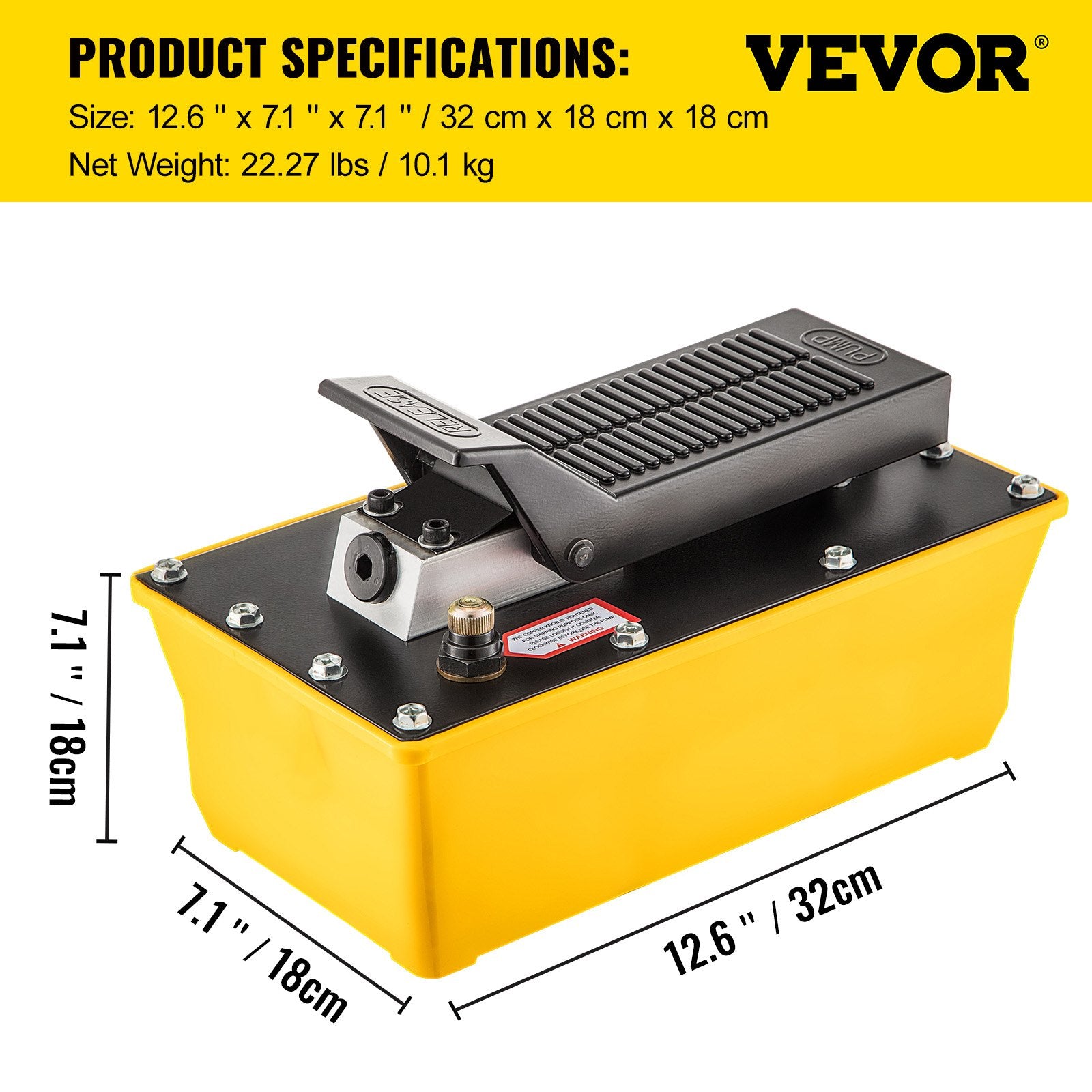

• Item Dimensions(L x W x H): 32 x 18 x 18 cm / 12.6 x 7.1 x 7.1''
• Model: NAP001
• Spray Gun Length: 100 cm / 3.28 ft
• Fuel Tank Capacity: 2.3L
• Intake: 1/4'' NPT Connection
• Net Weight: 10.1 kg / 22.27 lbs
