Features & Details

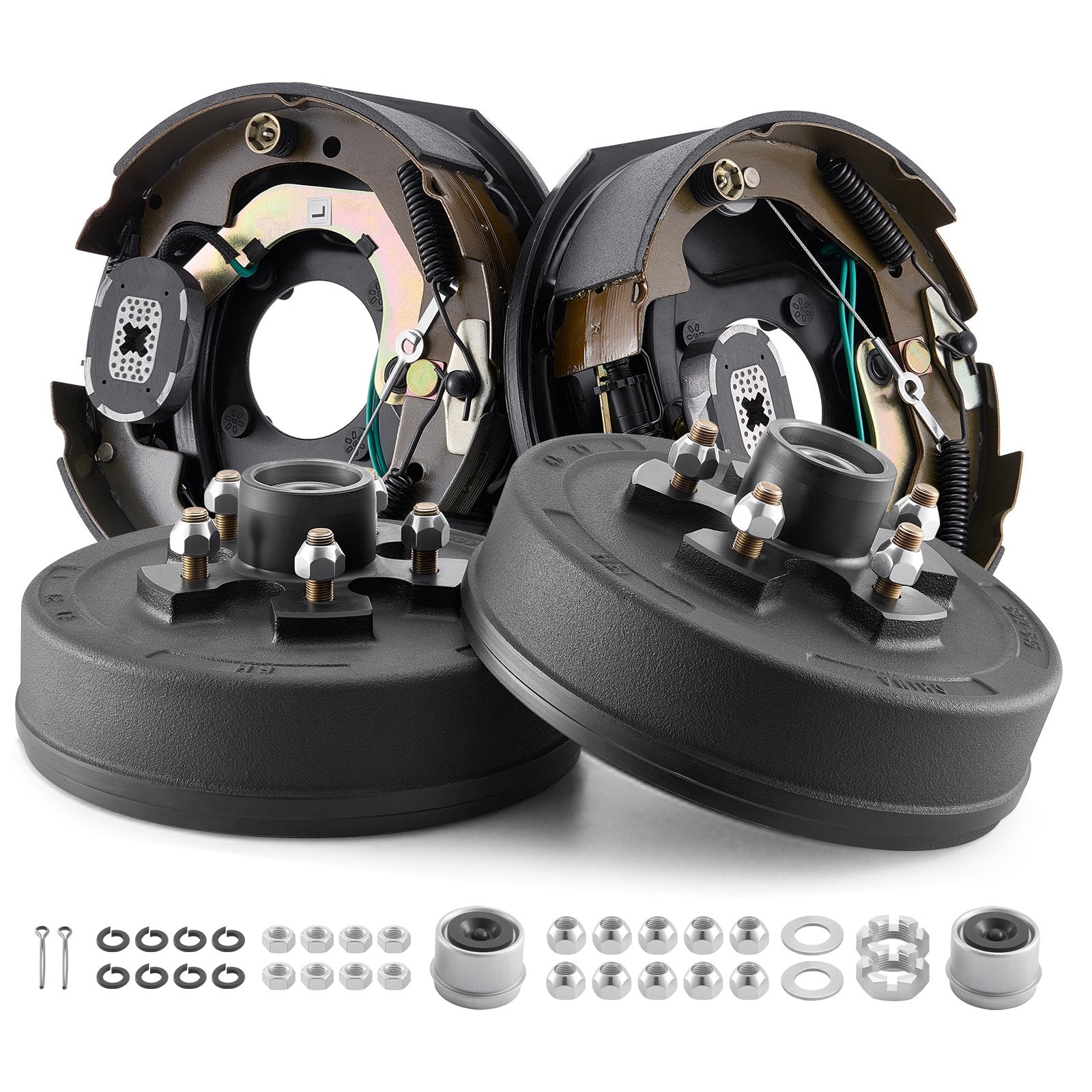

Our electric trailer brake kit includes 2 brake assemblies and 2 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

Key Features

• Upgrade Your Brake System: Our electric trailer brake kit includes 2 brake assemblies and 2 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

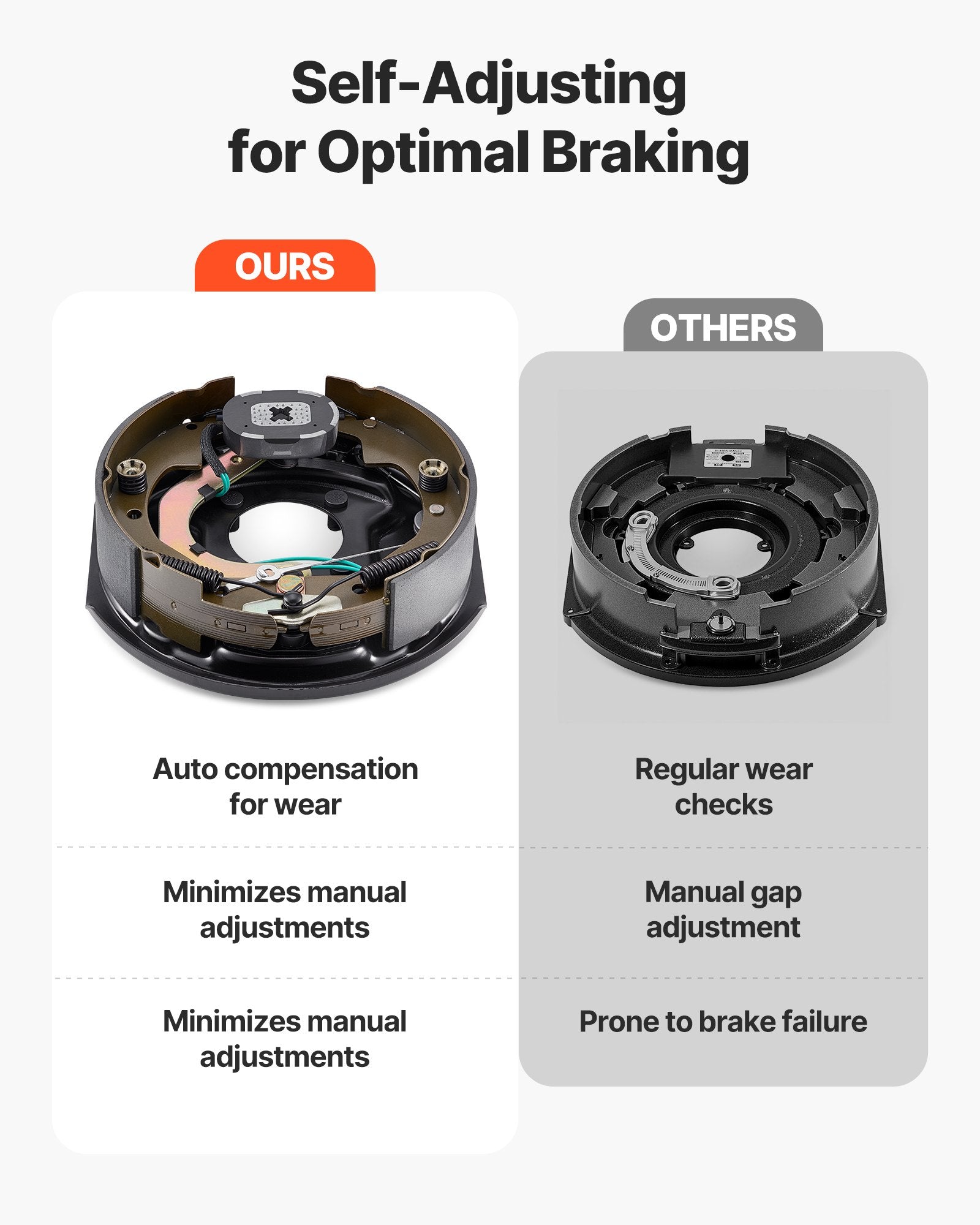

• Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

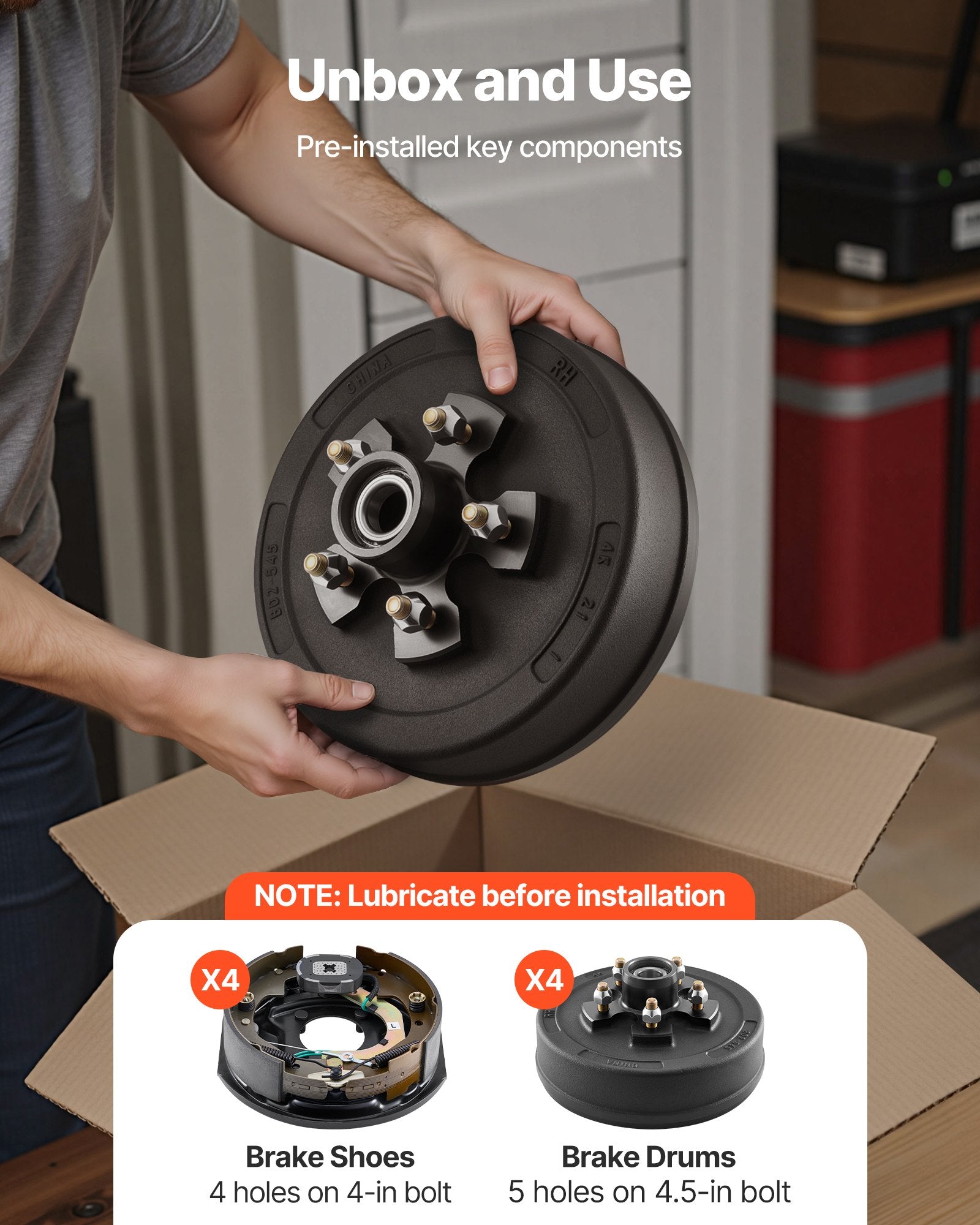

• Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
• Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise¡ªfit for heavy-load, downhill, and frequent braking
• ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

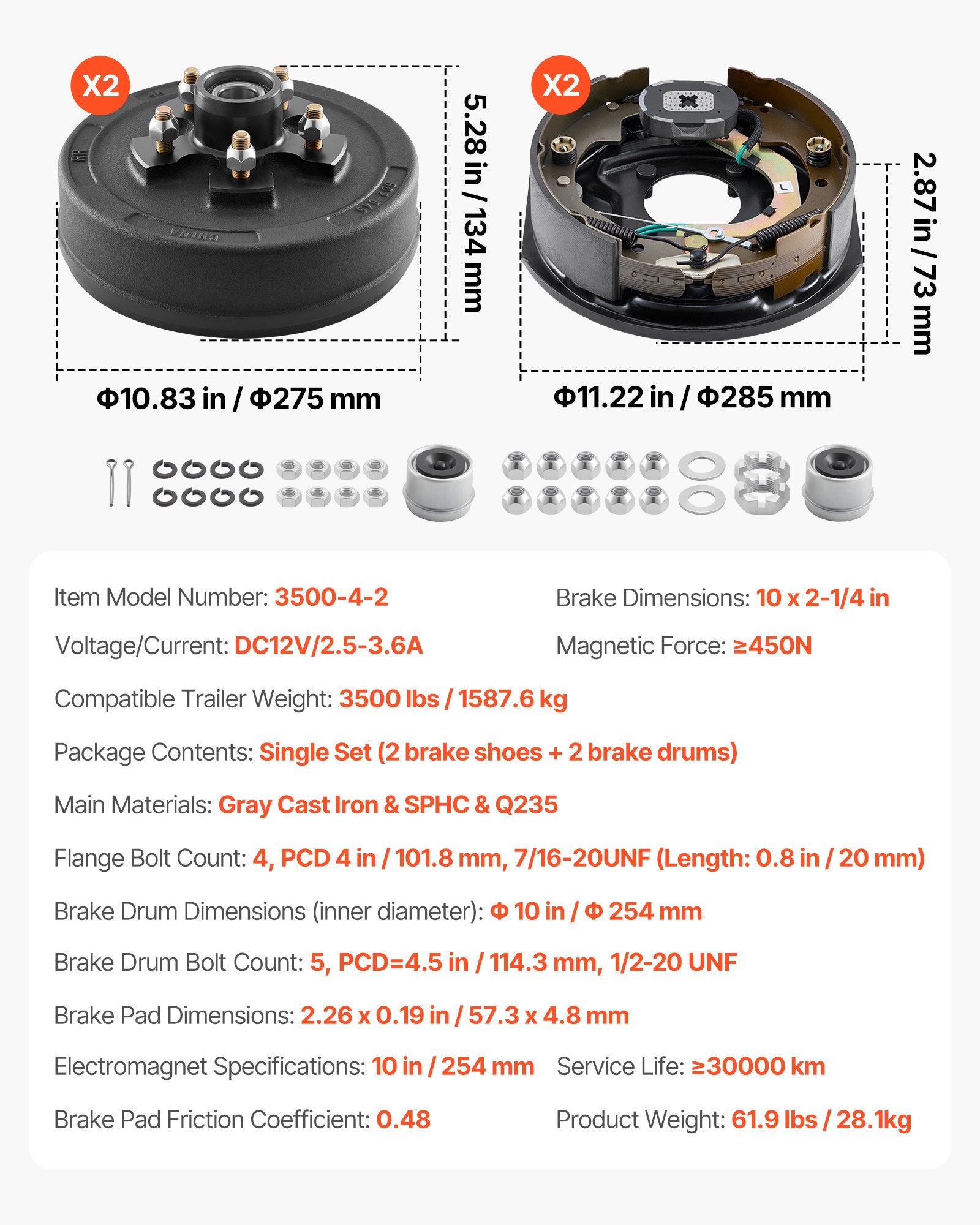

Specification

• Electromagnet Specifications: 10 in / 254 mm
• Brake Pad Dimensions: 2. 26 x 0. 19 in / 57. 3 x 4. 8 mm,Product Dimensions (Outer diameter × Height):
• Compatible Trailer Weight: 3500 lbs / 1587. 6 kg
• Brake Pad Friction Coefficient: 0. 48

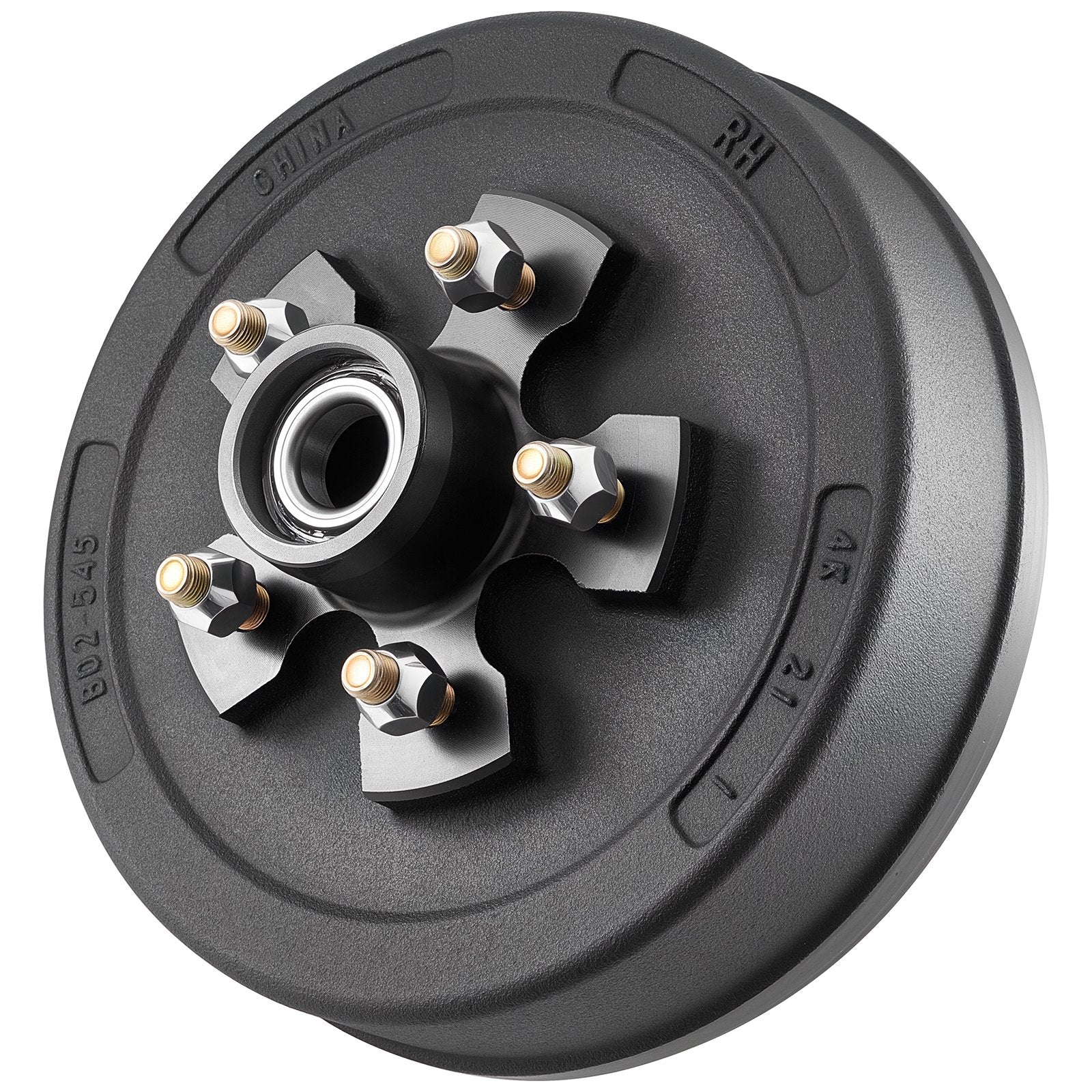

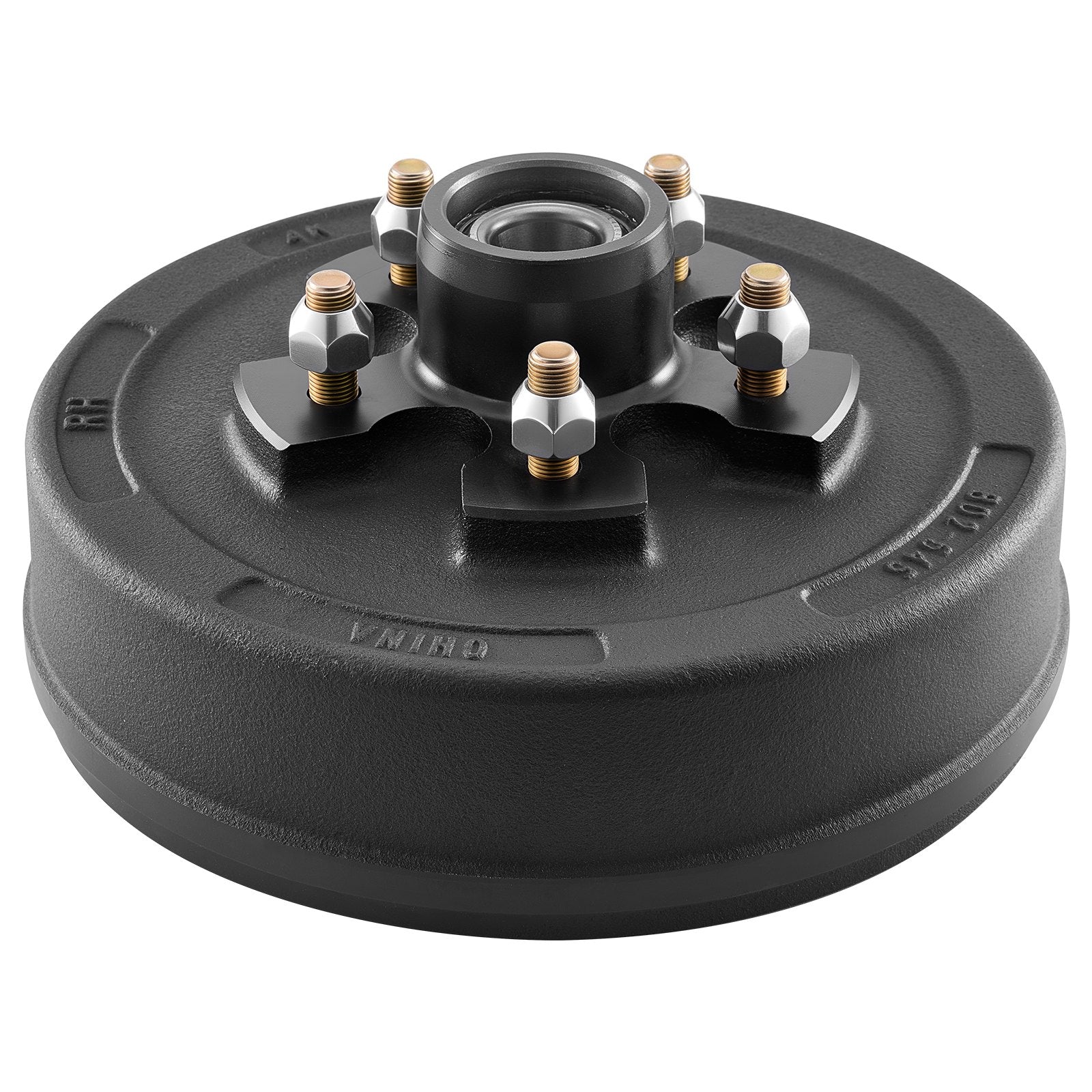

• Brake Drum: μ10. 83 x 5. 28 in / μ275 x 134 mm
• Brake Dimensions: 10 x 2-1/4 inch
• Magnetic Force: ≥450N
• Brake Drum Dimensions (inner diameter): μ 10 in / μ 254 mm
• Flange Bolt Count: 4, PCD 4 in / 101. 8 mm, 7/16-20UNF (Length: 0. 8 in / 20 mm)
• Service Life: ≥30000 km
• Package Contents: Single Set (2 brake shoes + 2 brake drums)
• Main Materials: Gray Cast Iron & SPHC & Q235
• Brake Drum Bolt Count: 5, PCD=4. 5 inches / 114. 3 mm, 1/2-20 UNF
• Item Model Number: 3500-4-2
• Product Weight: 61. 9 lbs / 28. 1kg

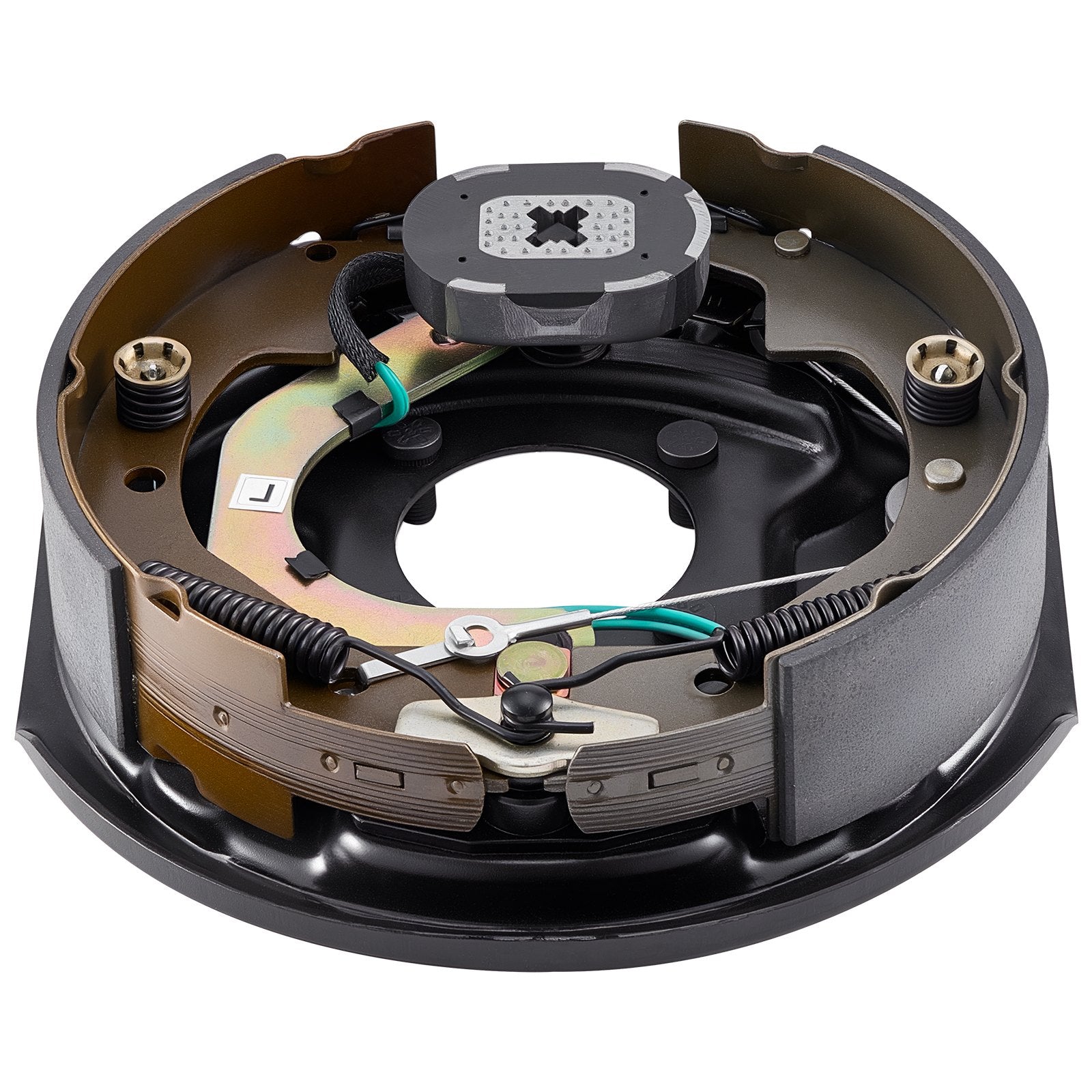

• Brake Shoe: μ11. 22 x 2. 87 in / μ285 x 73 mm
• Voltage/Current: DC12V/2. 5-3. 6A
