Features & Details

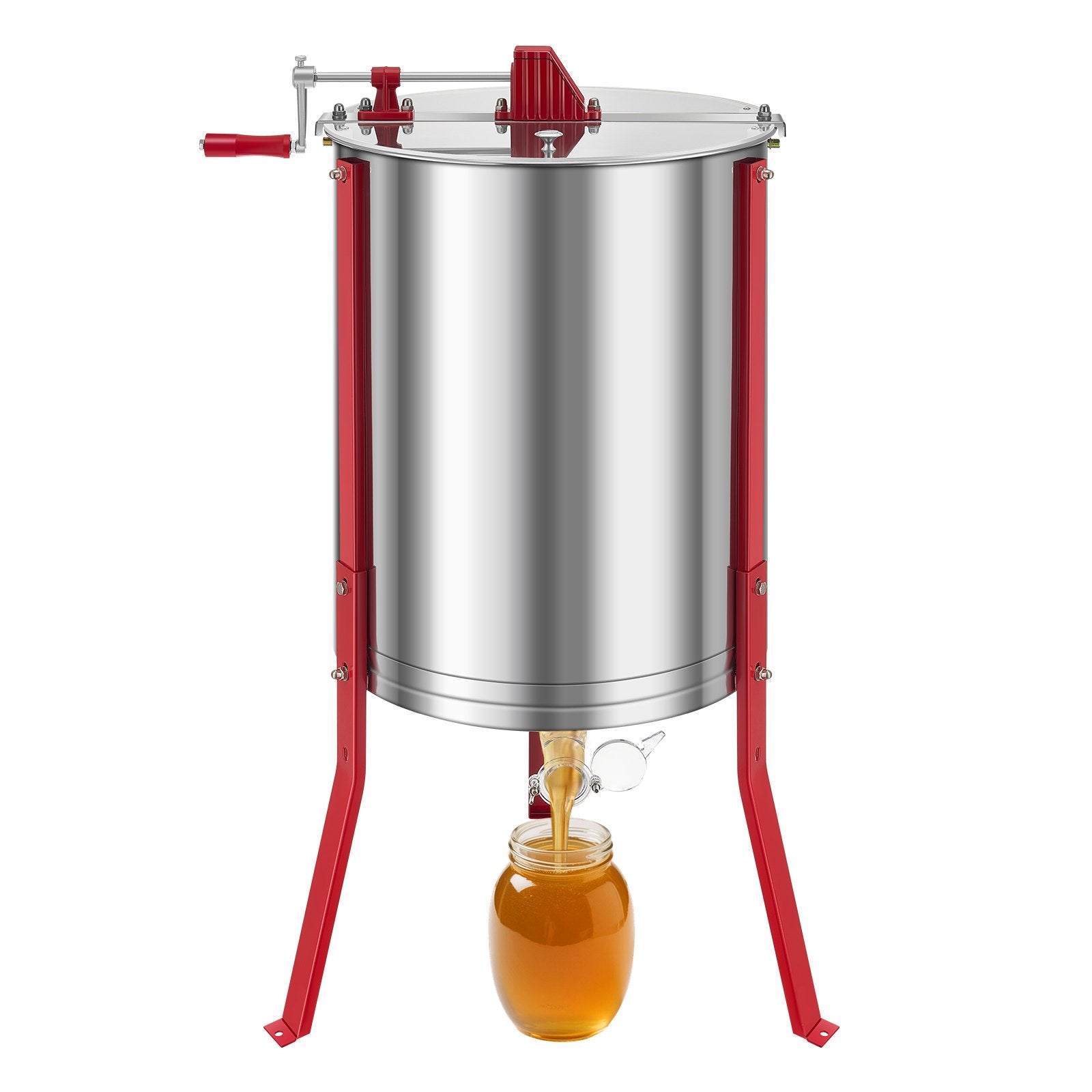

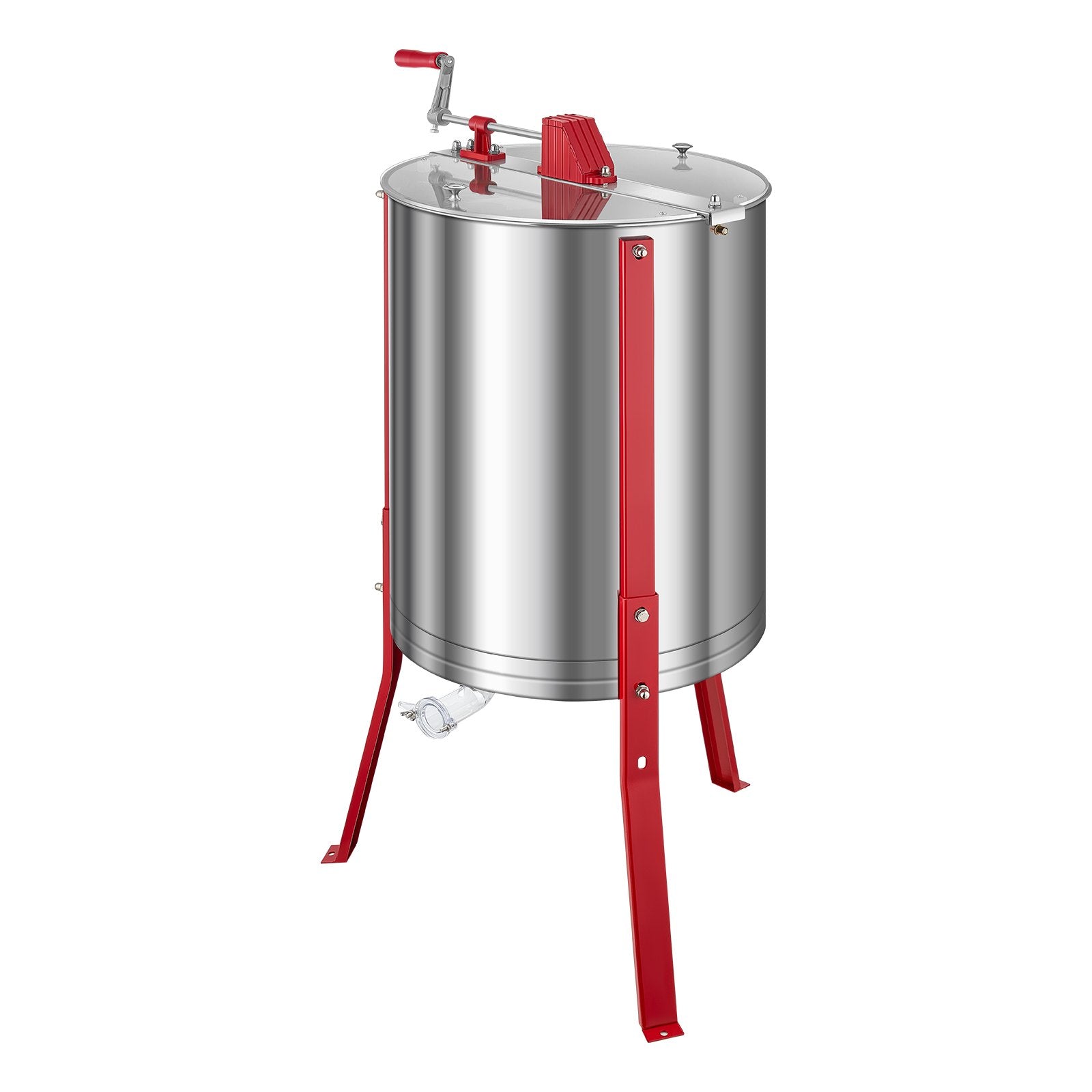

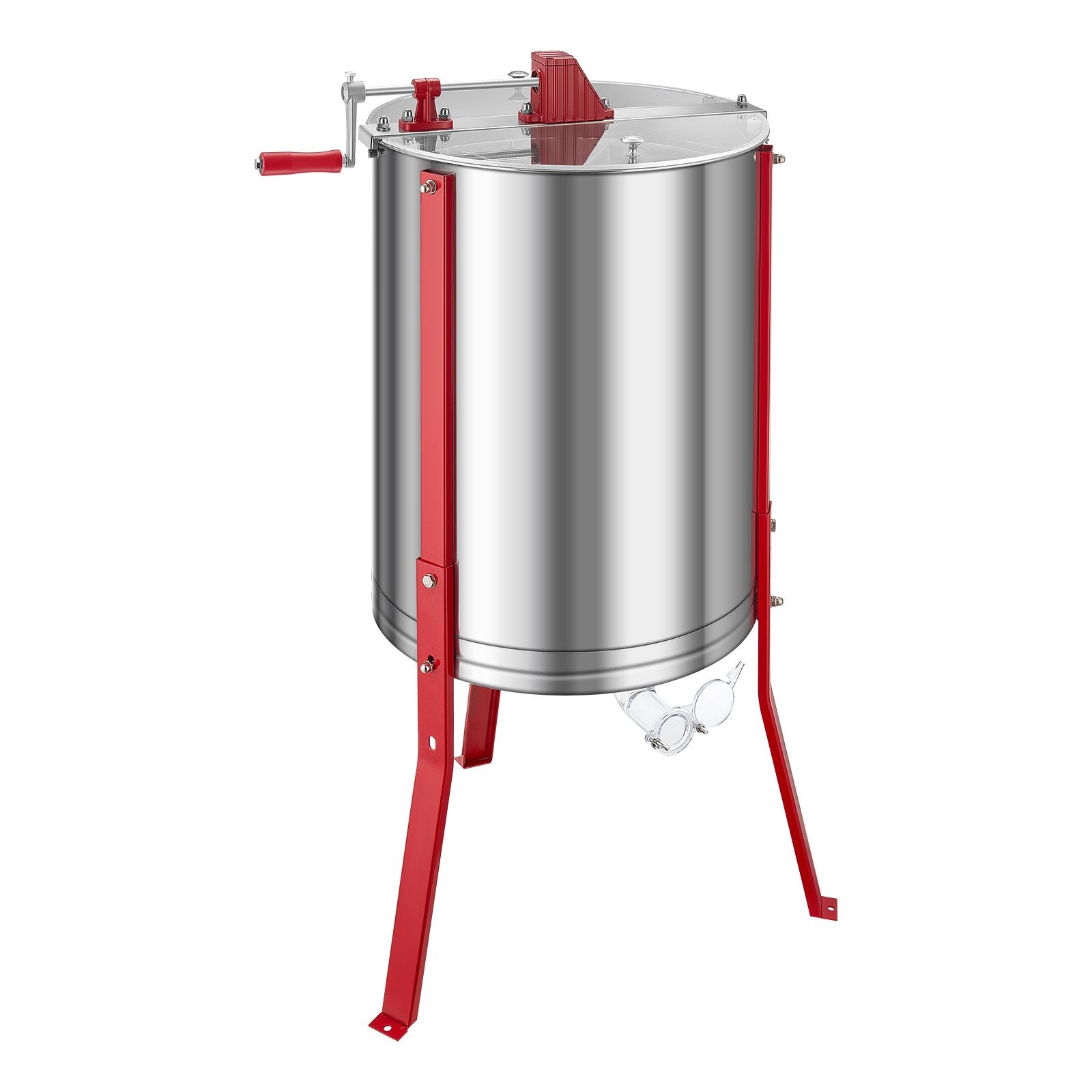

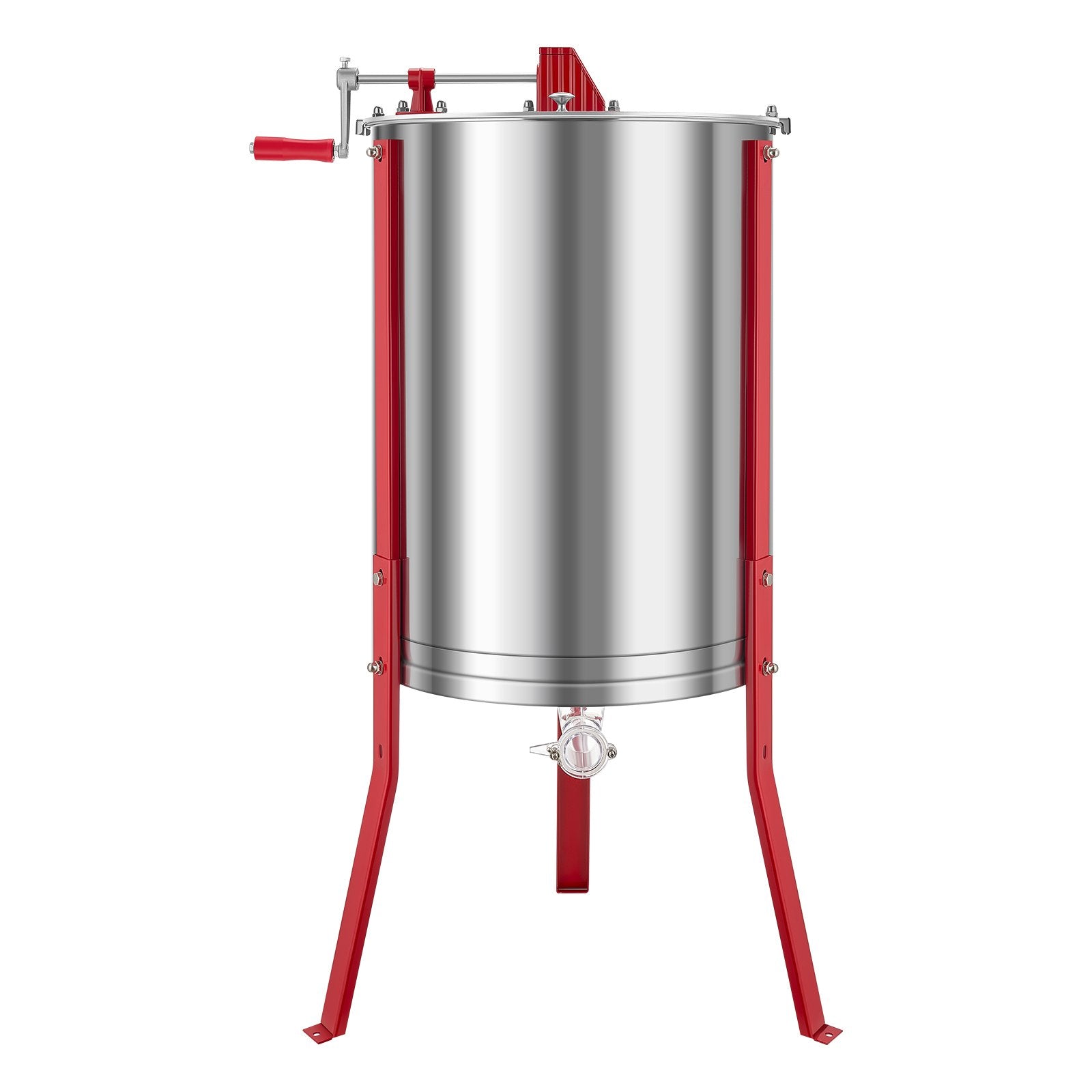

This 6-frame manual honey extractor is designed for shallow and medium frames, featuring a radial inner frame that ensures even honey distribution during extraction. The forward and reverse operation saves time and energy.

Key Features

• 6-Frame Manual Honey Extractor: This 6-frame manual honey extractor is designed for shallow and medium frames, featuring a radial inner frame that ensures even honey distribution during extraction. The forward and reverse operation saves time and energy.

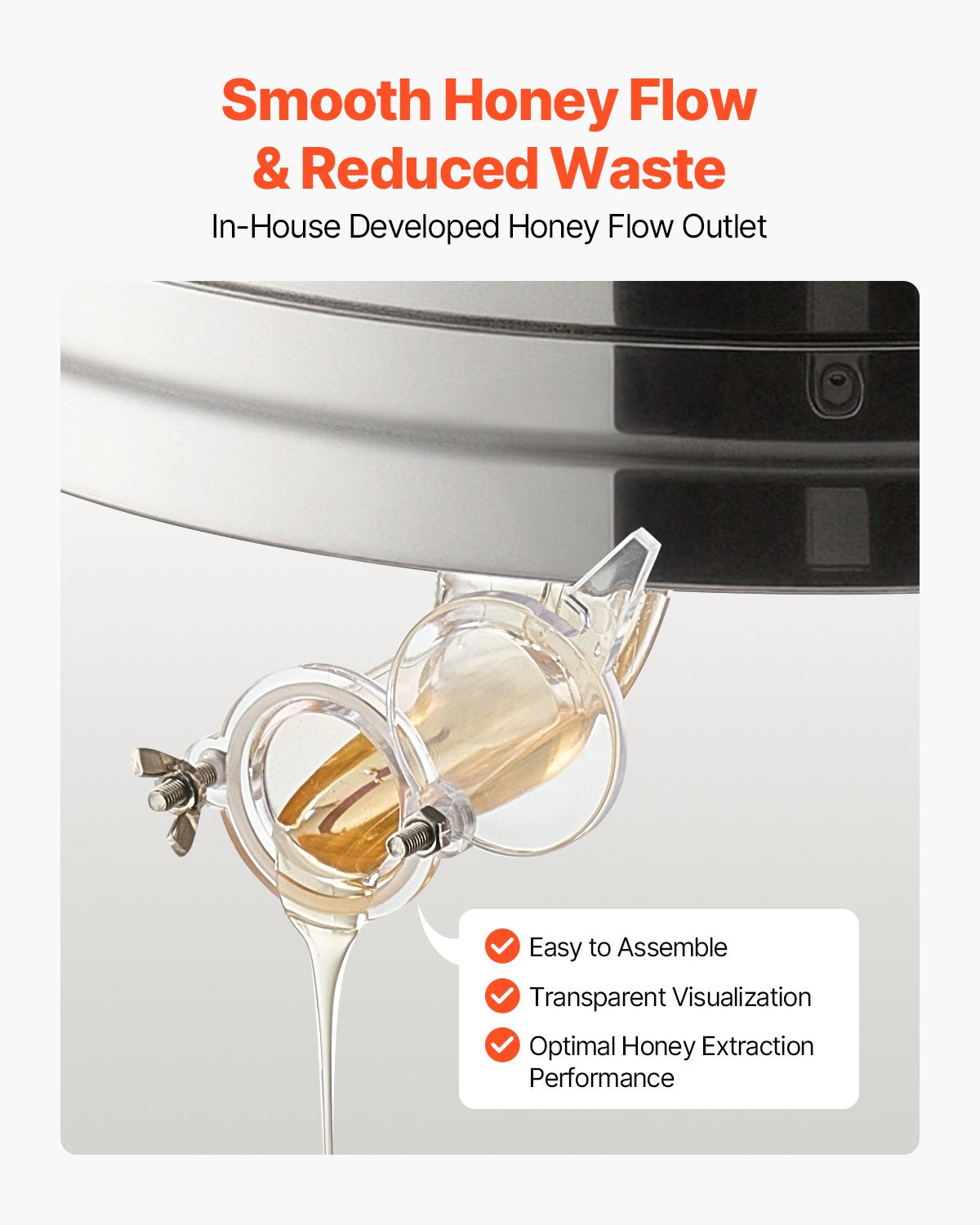

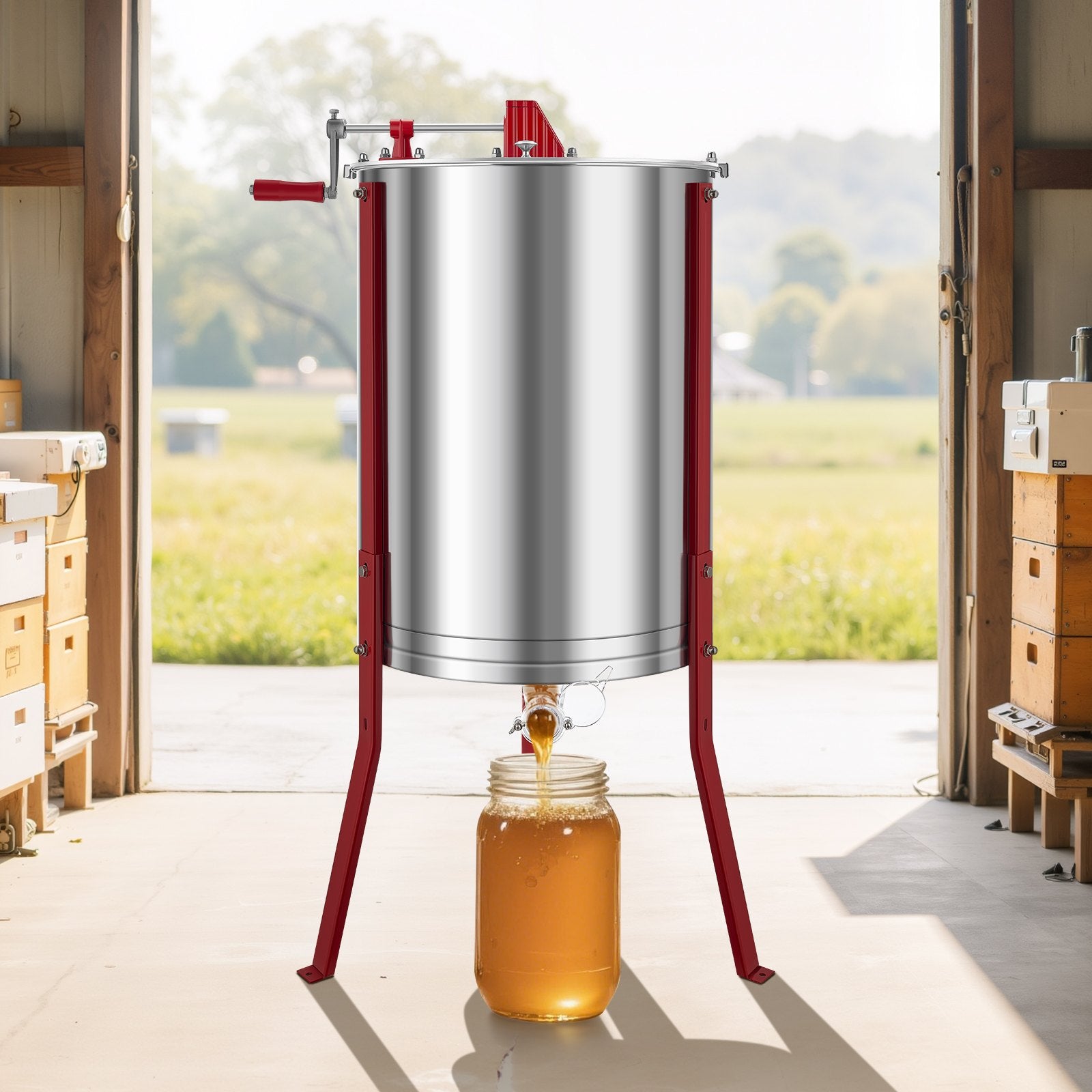

• Easy to Clean Design: The metal gear is fully enclosed to keep honey clean. The specially developed honey drain ensures thorough honey extraction with minimal residue, providing clear visibility while reducing cleaning time.

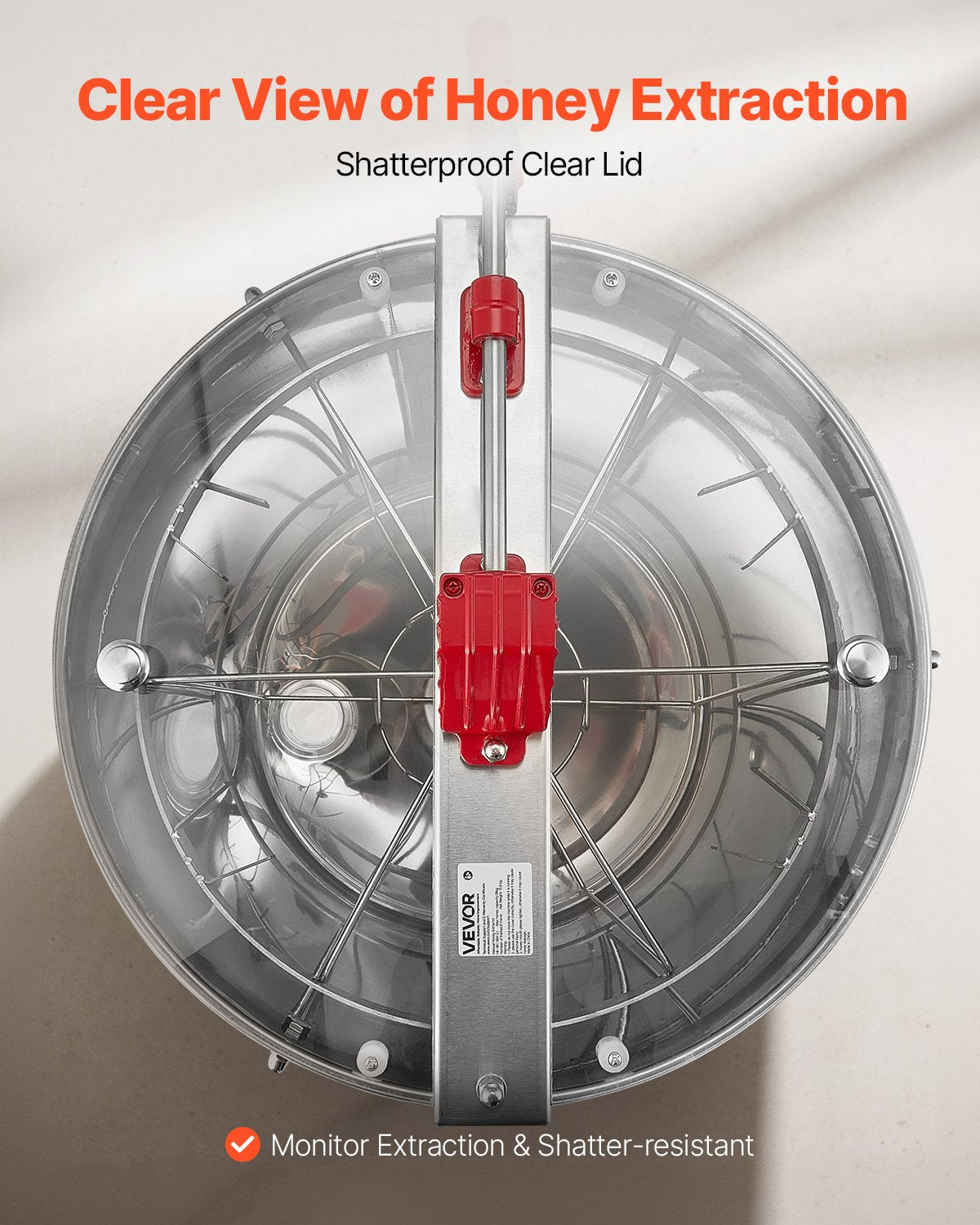

• Unique Design: The honey spinner comes with a specially designed handle for easy movement, and the transparent acrylic lid allows you to monitor the extraction process, enhancing your beekeeping experience.

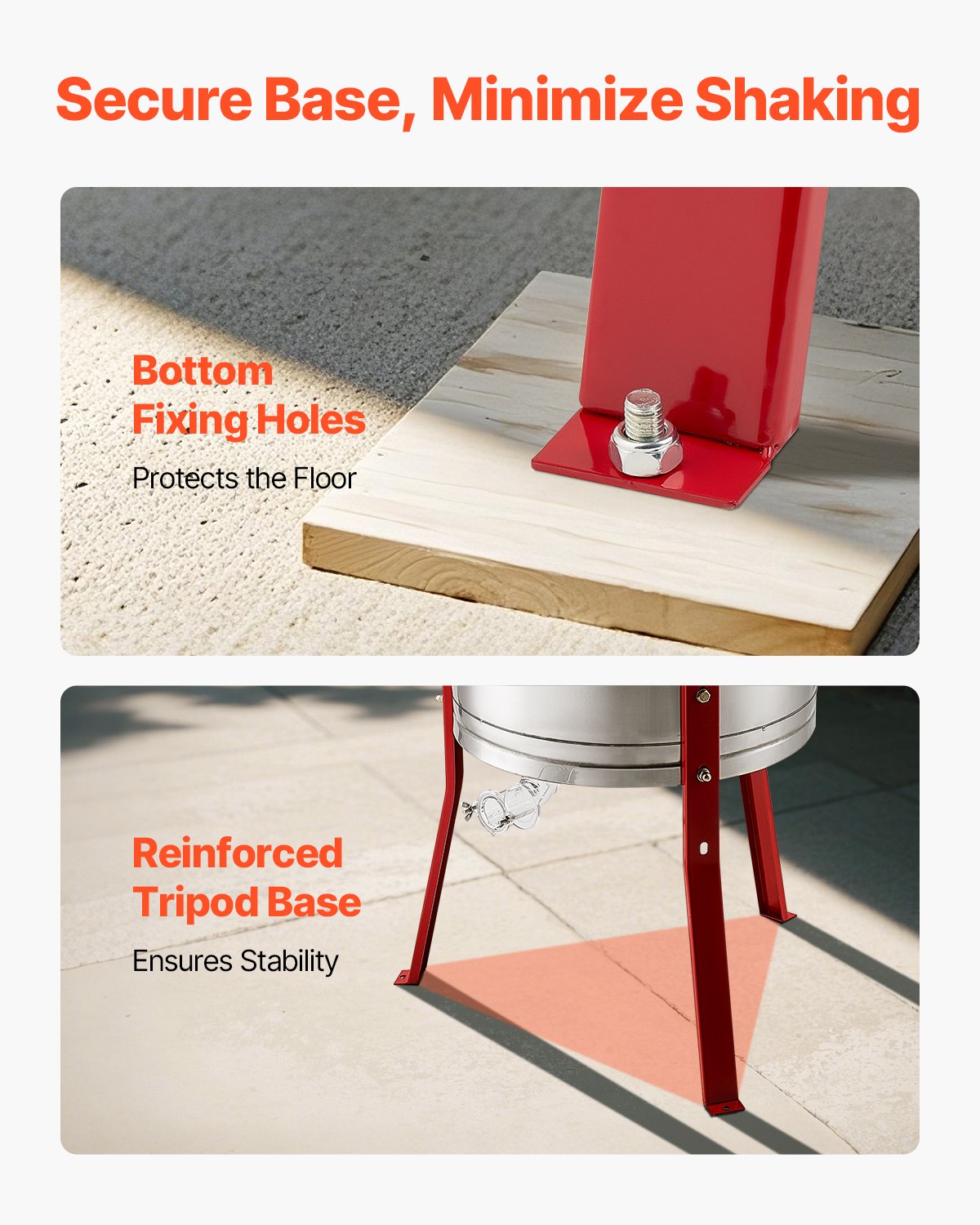

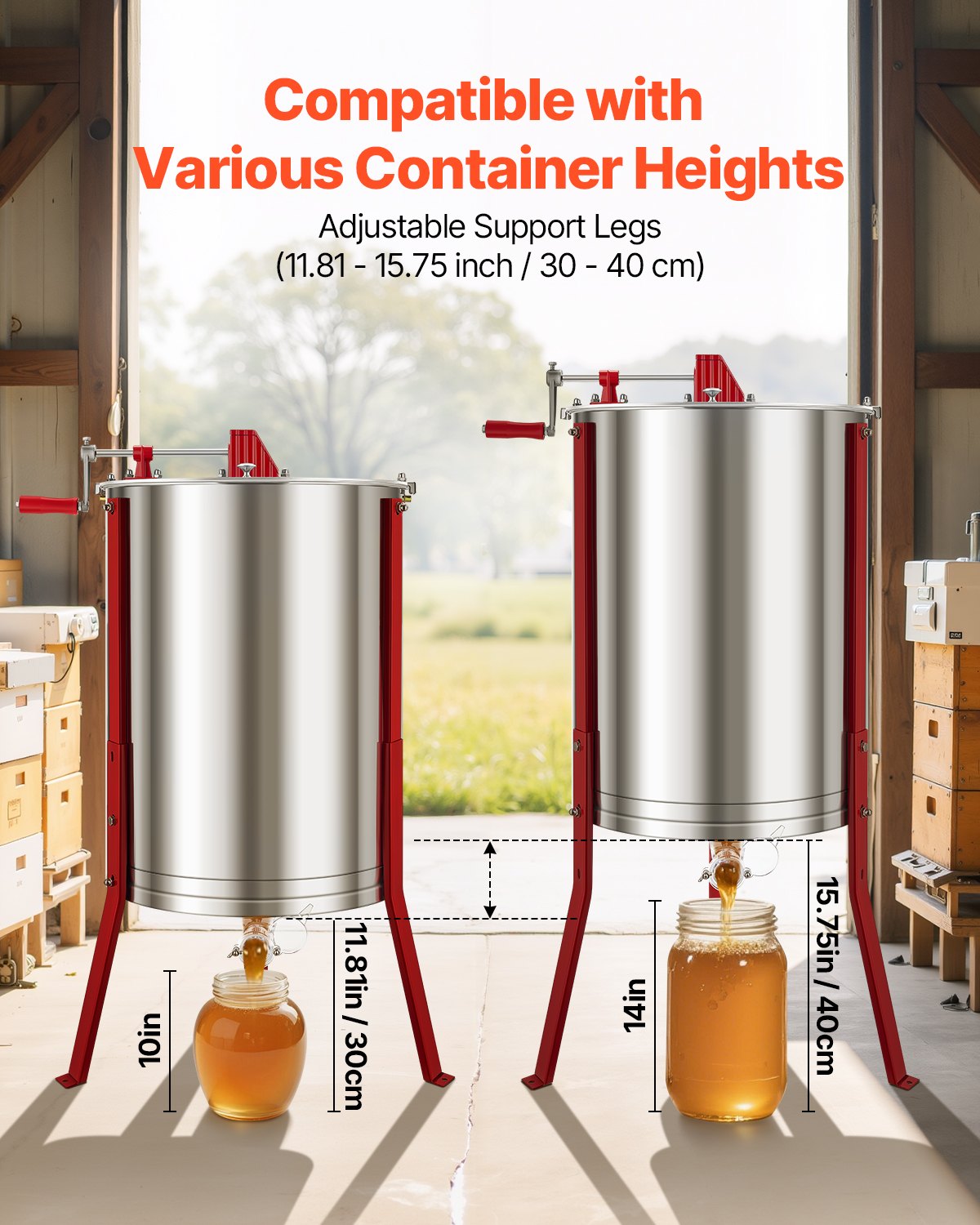

• Stability & Adjustable Height: With a triangular 3-leg structure, this honeycomb extractor offers enhanced stability. The height is adjustable from 11.81 inches (30 cm) to 15.75 inches (40 cm) to accommodate different users' needs.
• Ergonomic Handle: Equipped with a non-slip design, the bee honey extractor with ergonomic handle, makes manual cranking easy and reduces effort, providing a comfortable and user-friendly operation.

Specification

• Support Leg Top Section Size: 38mm (1. 5 in) × 12mm (0. 47 in) × 605mm (23. 82 in)
• Max Honey Capacity: 18/ 39. 68
• Inner Frame Size: 175mm (6. 89 in) × 55mm (2. 17 in) × 440mm (17. 32 in)
• Bucket Wall Thickness: 0. 65mm/ 0. 026 in
• Support Leg Bottom Section Size: 45mm (1. 77 in) × 14. 5mm (0. 57 in) × 535mm (21. 06 in)
• Frame Capacity: 6 frames

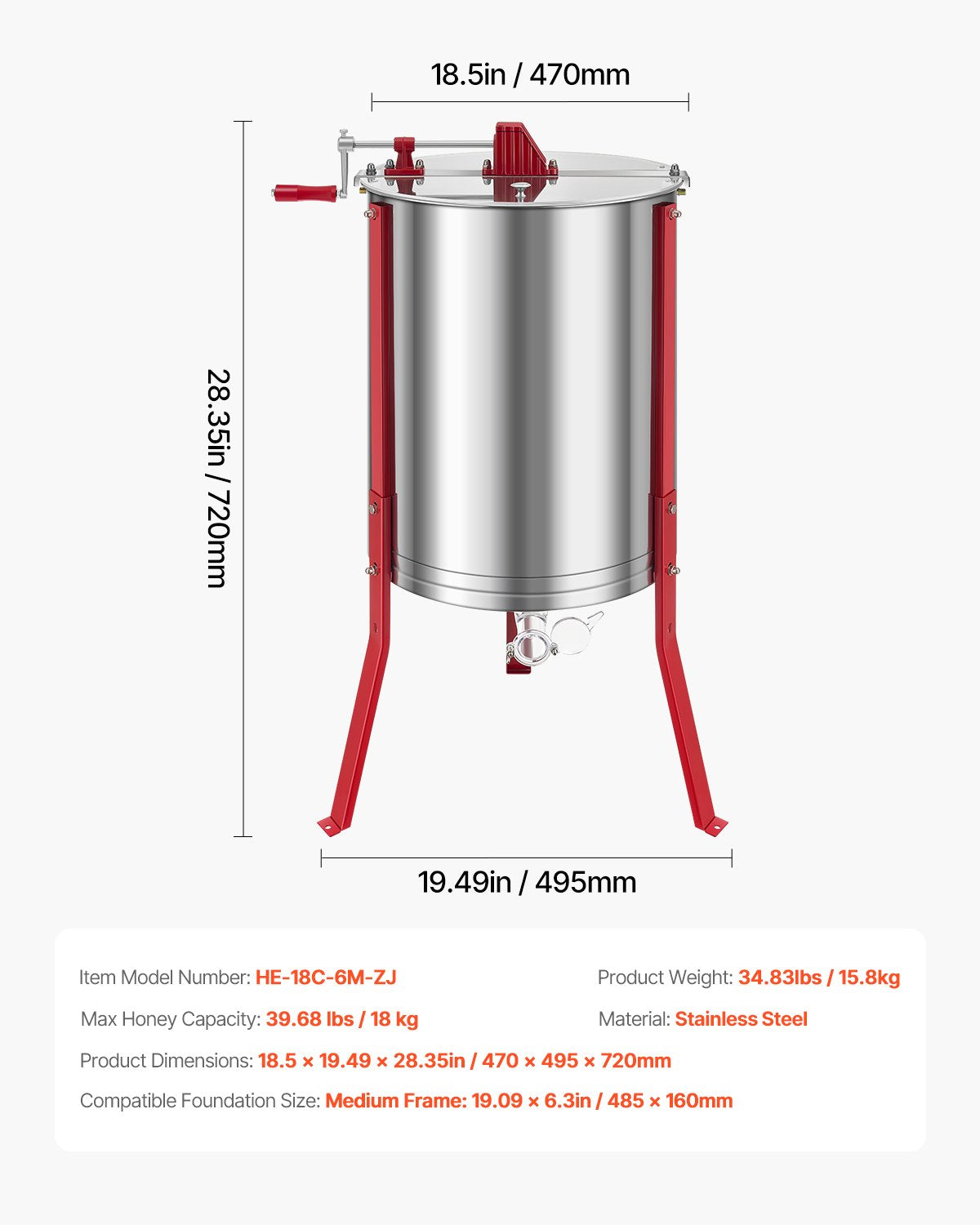

• Dimensions: 470mm × 495mm × 720mm/ 18. 50 x 19. 49 x 28. 35 in
• Bucket Material: 201 Stainless Steel
• Material: Steel with paint coating(red)
• Inner Frame Material: 201 Stainless Steel
• Item Model Number: HE-18C-6M-ZJ
• Product Weight: 15. 8 kg (including all accessories) / 34. 8 lbs
• Top Section Thickness: 1. 5mm/ 0. 059 in
• Shallow Frame: 485mm (19. 09 in) (L) × 140mm (5. 51 in) (W)
• Bucket Size: Diameter: 470mm (18. 5 in)
• Height: 615mm (24. 21 in) (including conical bottom)
• Height from Ground: 30-40cm (Adjustable) / 11. 81-15. 75 in
• Bottom Section Thickness: 1. 9mm/ 0. 075 in

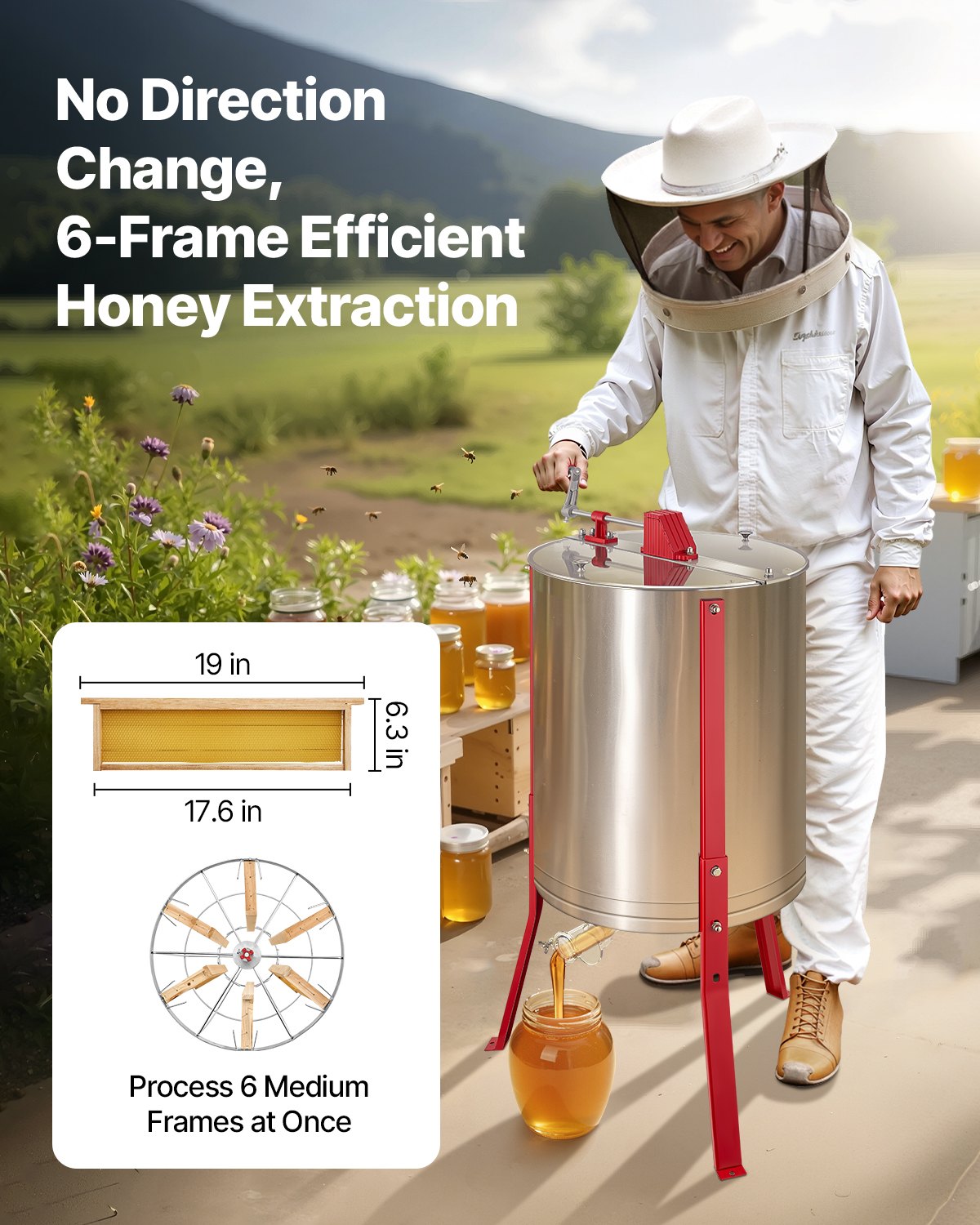

• Compatible Frame Sizes: Medium Frame: 485mm (19. 09 in) (L) × 160mm (6. 3 in) (W)
• Main Material: 201 Stainless Steel
