VEVOR Hydraulic Log Splitter Valve 1 Spool, 25 GPM Hydraulic Directional Control Valve, 3626PSI Hydraulic Loader Valve, Hydraulic Joystick Control Valve for Small Tractors, Loaders, Log Splitter

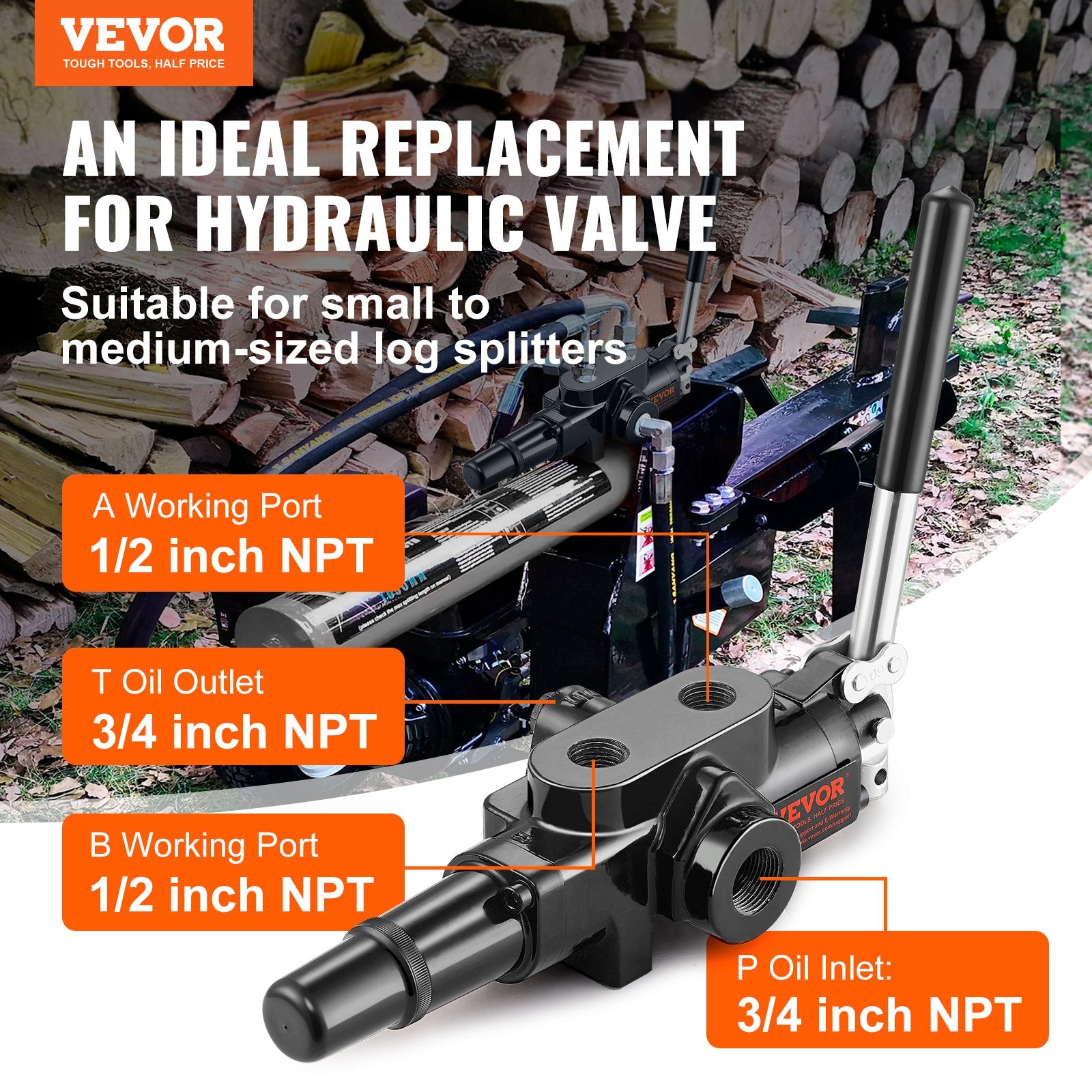

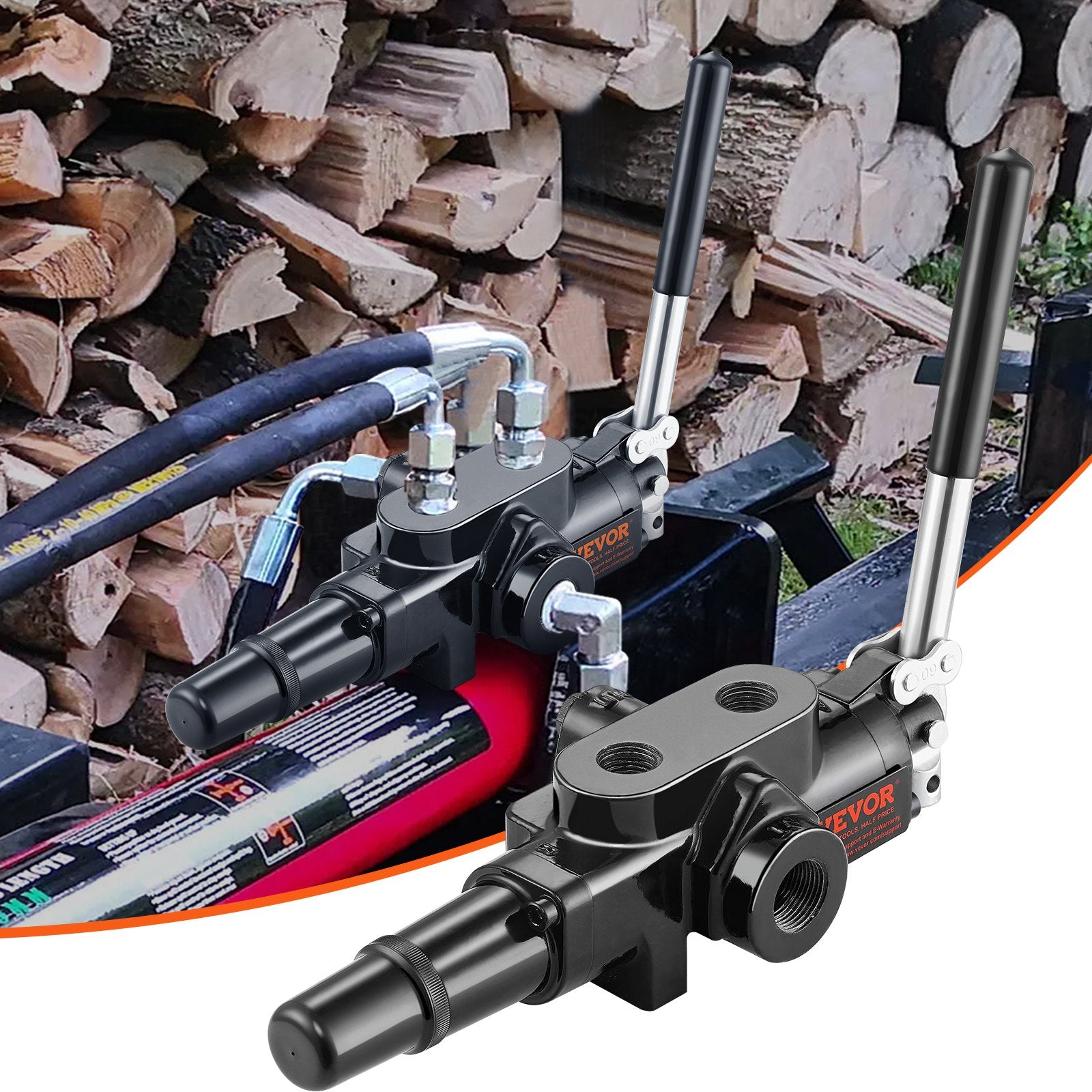

For Small to Medium-Sized Hydraulic Log Splitters: VEVOR's 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry.It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports.

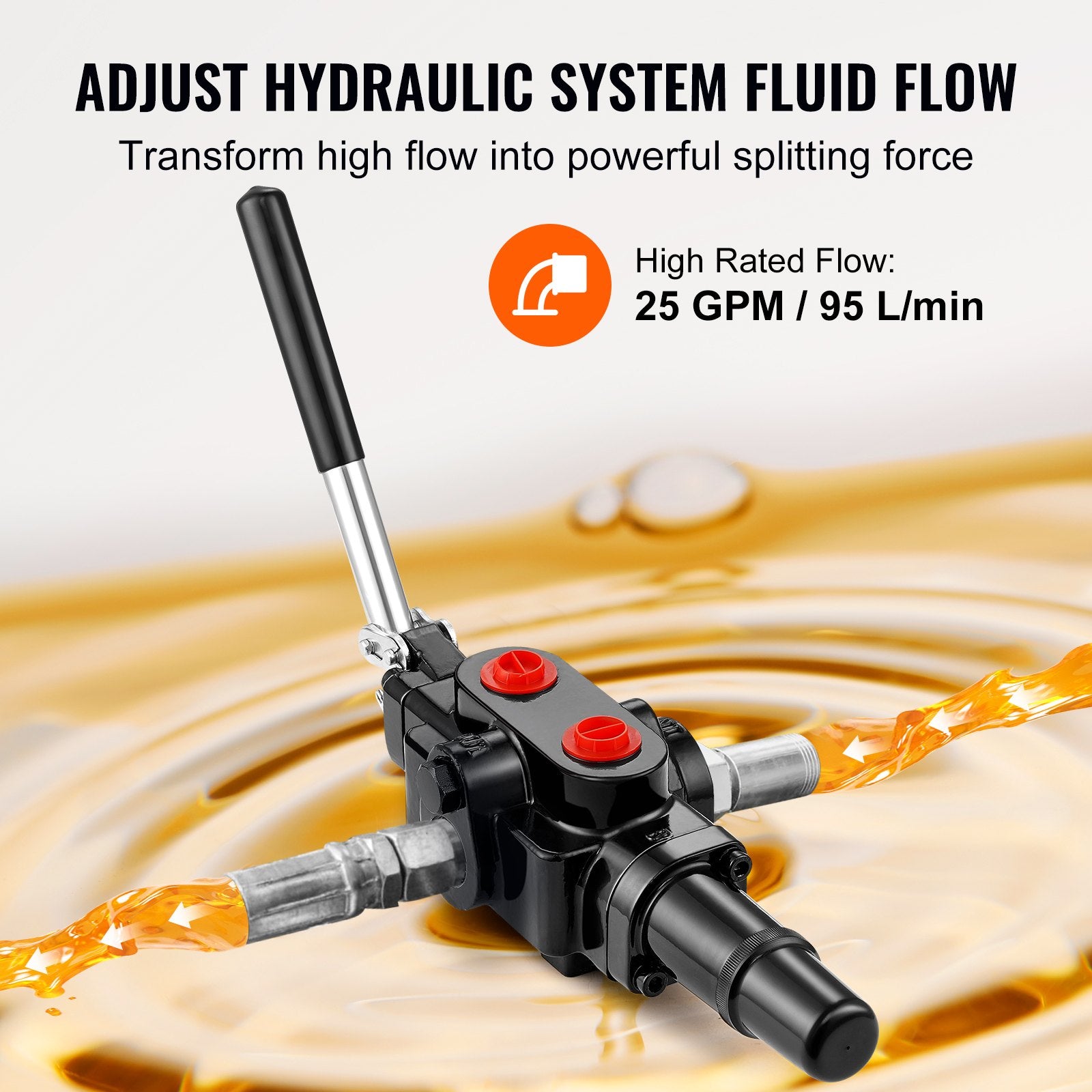

High Flow, High Efficiency: With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting.

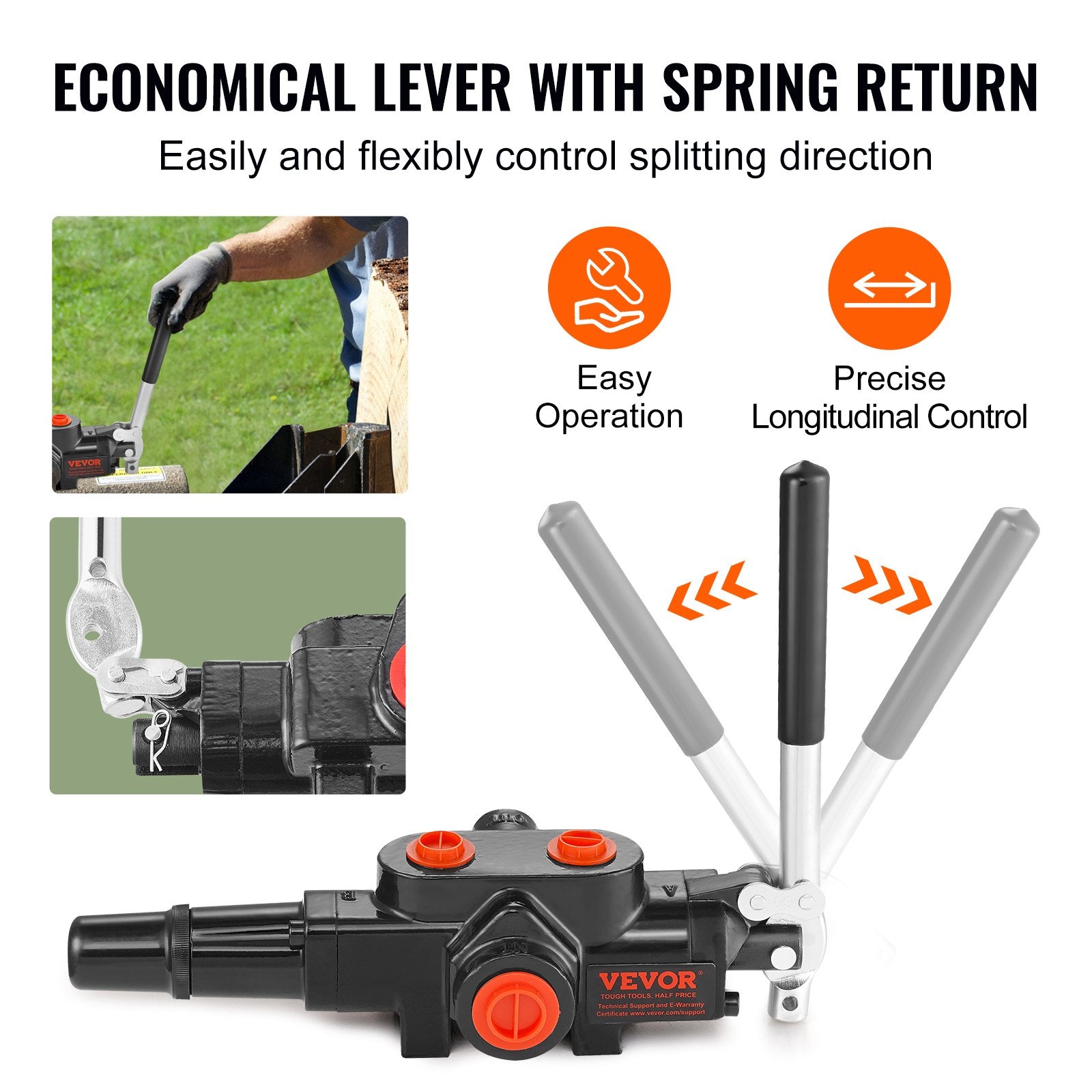

Built-in Spring Return: The standard spool features a spring return mechanism, automatically resetting to the neutral position.Additionally, there is a spring at the base of the handle, making joystick control smoother and easier.

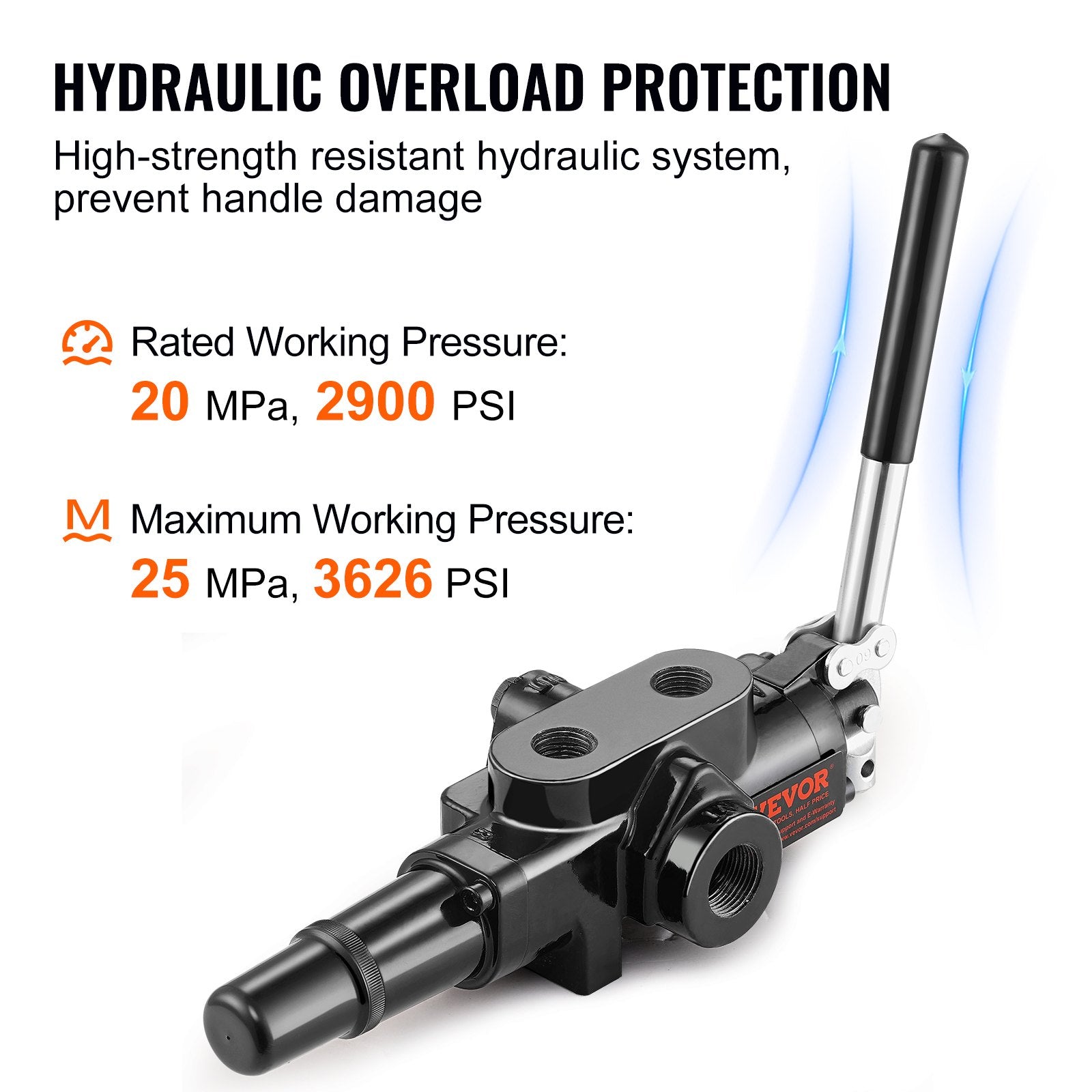

Durable and Secure: Equipped with a hydraulic safety valve, VEVOR 1-spool hydraulic loader valve can withstand up to 25 MPa / 3626 PSI maximum pressure, ensuring durability and preventing damage.Its solid vermicular graphite cast iron construction can provide long-term service.

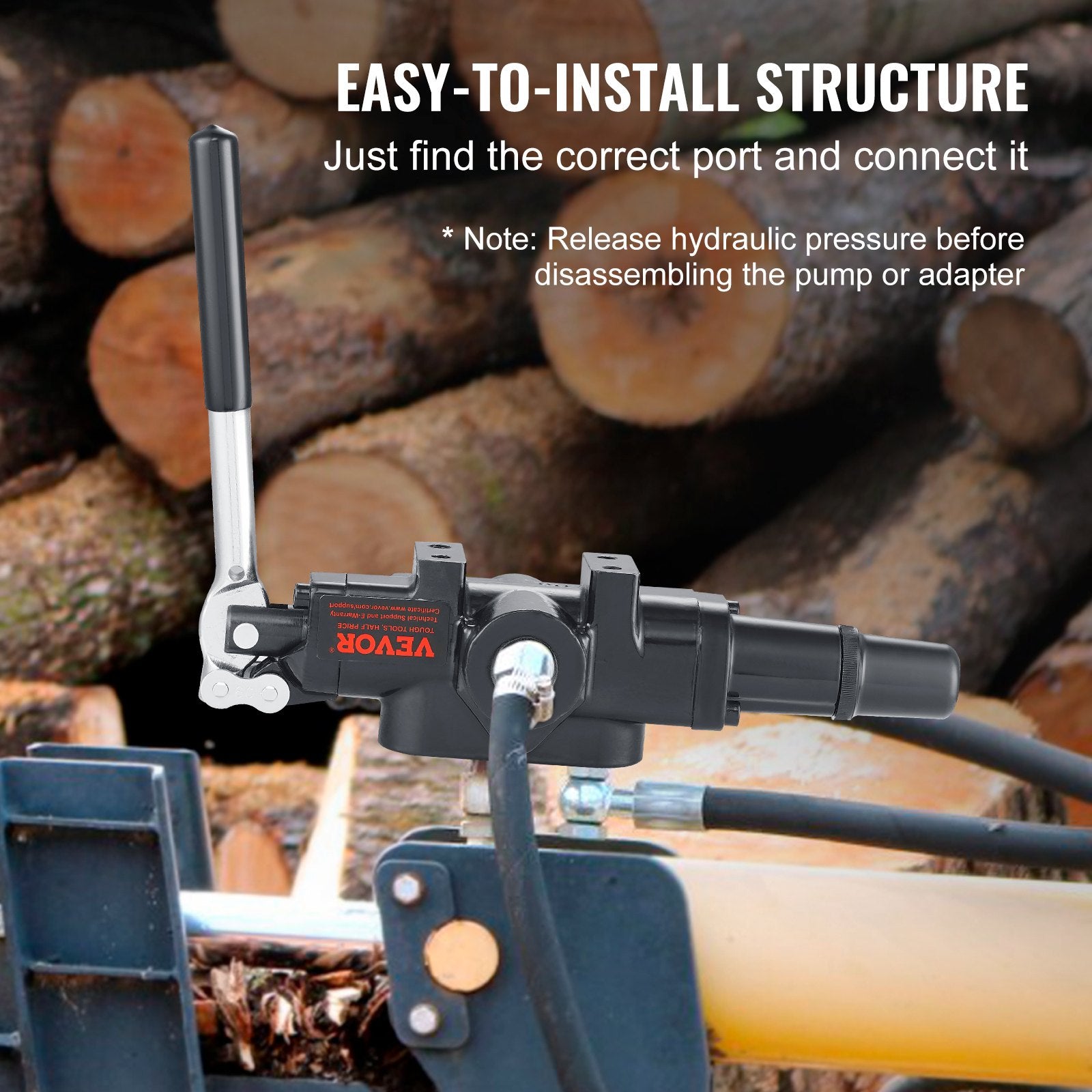

Simple Installation: Installing or replacing this loader control valve is straightforward.Identify the ports, connect the pipelines, and tighten each interface to complete the installation.Remember to release the hydraulic pressure before disassembling the pump or adapter for safety.

VEVOR Hydraulic Log Splitter Valve 1 Spool, 25 GPM Hydraulic Directional Control Valve, 3626PSI Hydraulic Loader Valve, Hydraulic Joystick Control Valve for Small Tractors, Loaders, Log Splitter
High-Flow Control
Precise & Convenient Control
Robust Structure
Simple Operation
Compact Handle Design
High Quality

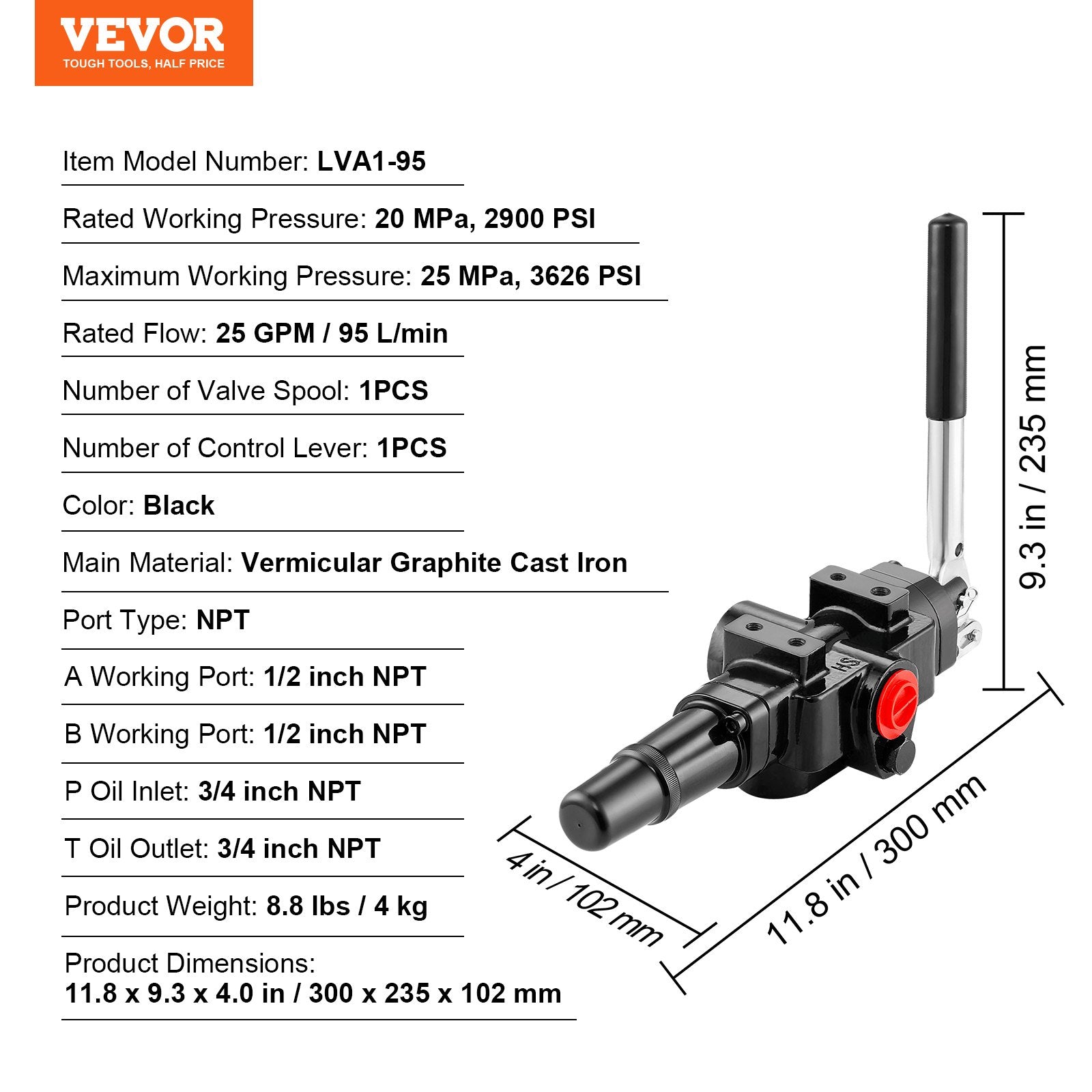

Rated Working Pressure: 20 MPa, 2900 PSI,Maximum Working Pressure: 25 MPa, 3626 PSI,Number of Control Lever: 1PCS,Color: Black,P Oil Inlet: 3/4 inch NPT,Product Dimensions: 11. 8 x 9. 3 x 4. 0 in / 300 x 235 x 102 mm,Rated Flow: 25 GPM / 95 L/min,Port Type: NPT,A Working Port: 1/2 inch NPT,Number of Valve Spool: 1PCS,B Working Port: 1/2 inch NPT,Item Model Number: LVA1-95,Product Weight: 9. 5 lbs / 4. 3 kg,Main Material: Vermicular Graphite Cast Iron,T Oil Outlet: 3/4 inch NPT
