Features & Details

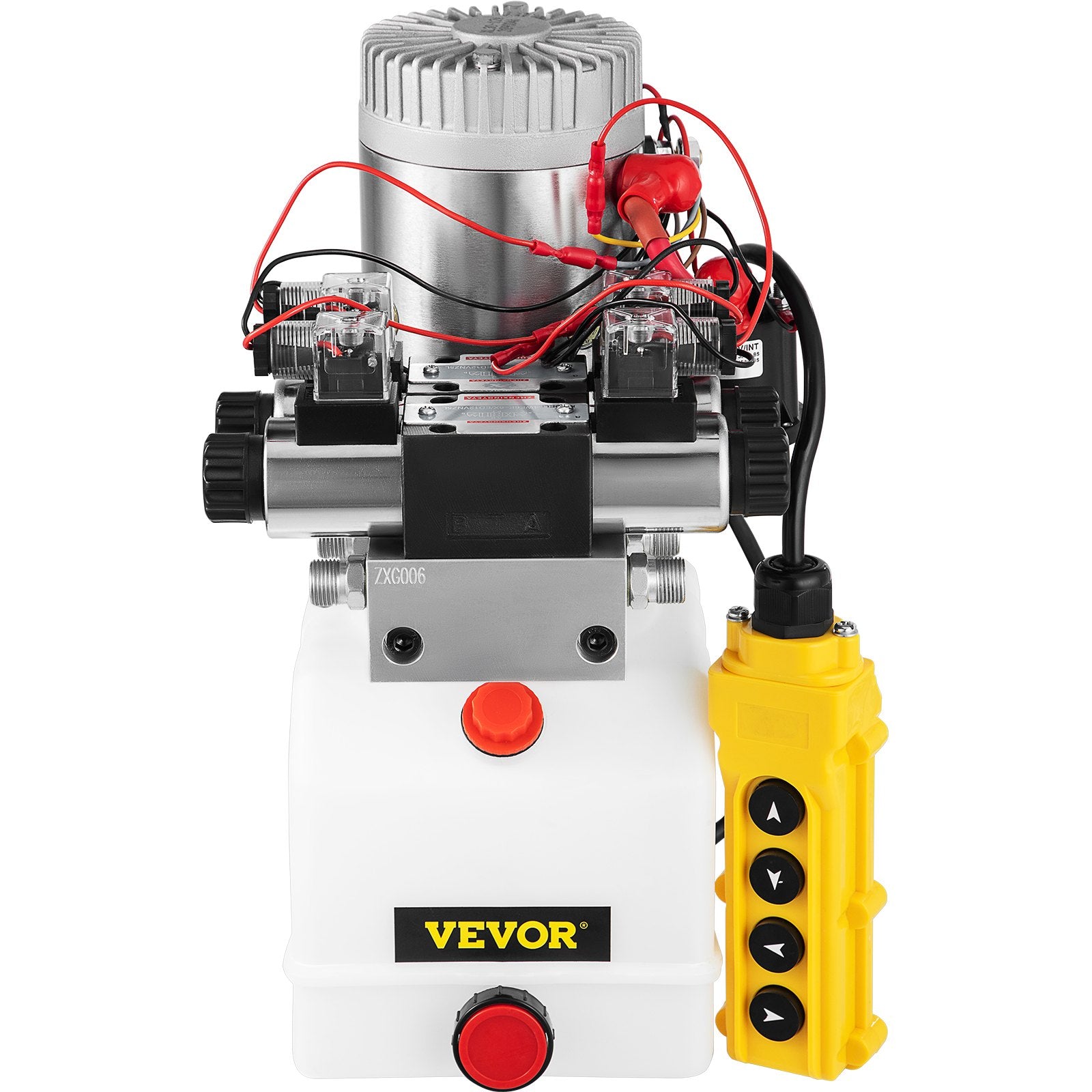

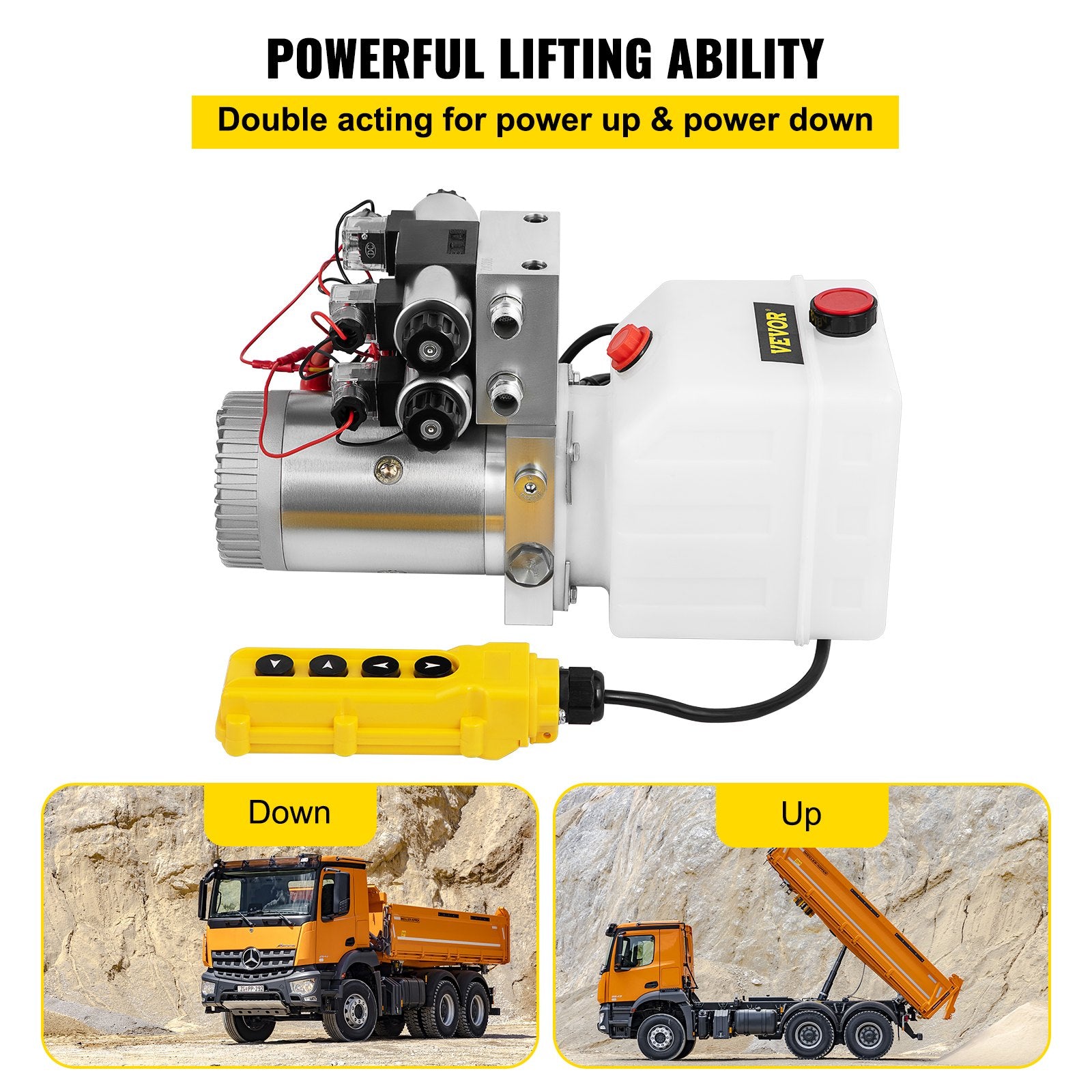

Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4.5-quart reservoir. The max relief pressure setting is 3200 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

Key Features

• Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4.5-quart reservoir. The max relief pressure setting is 3200 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

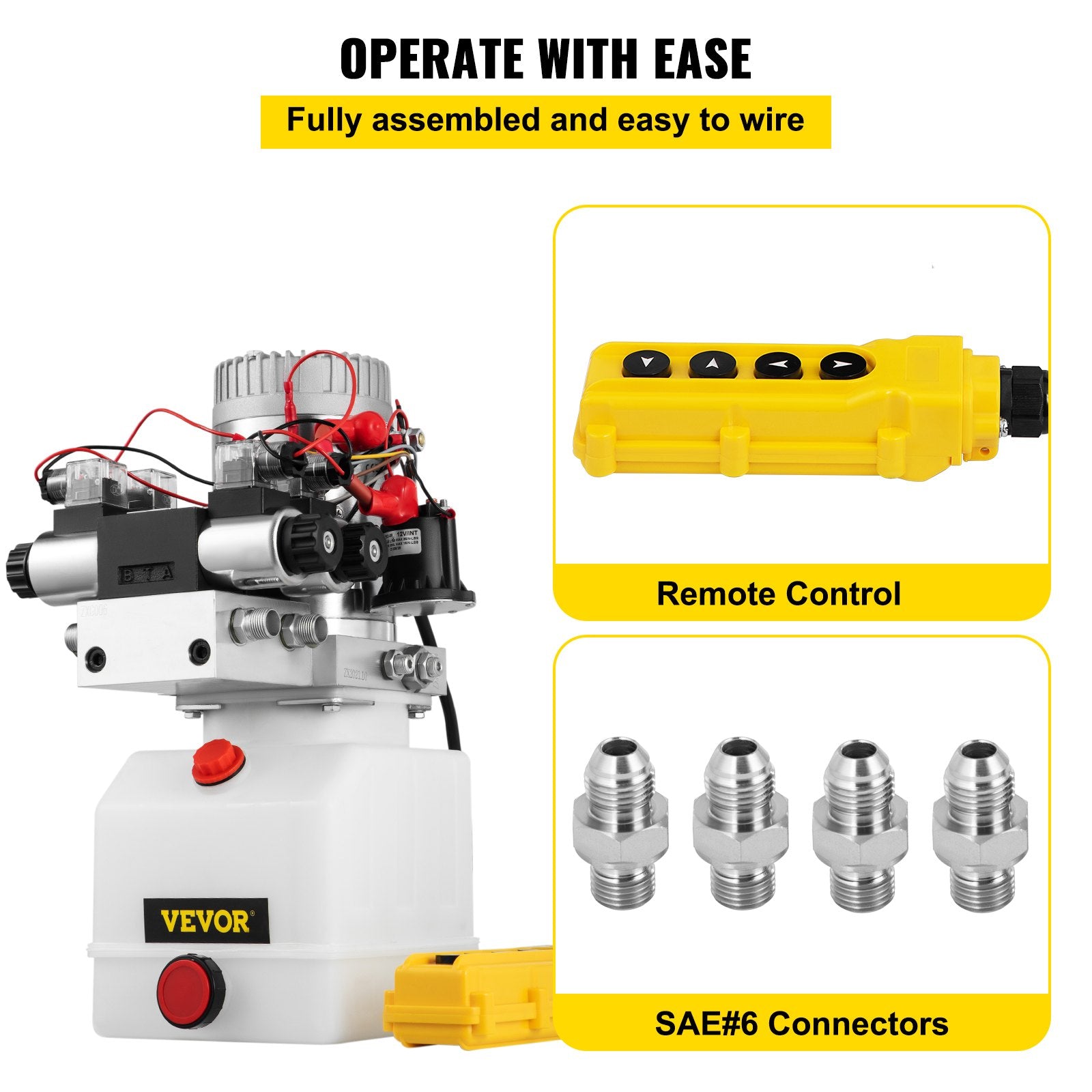

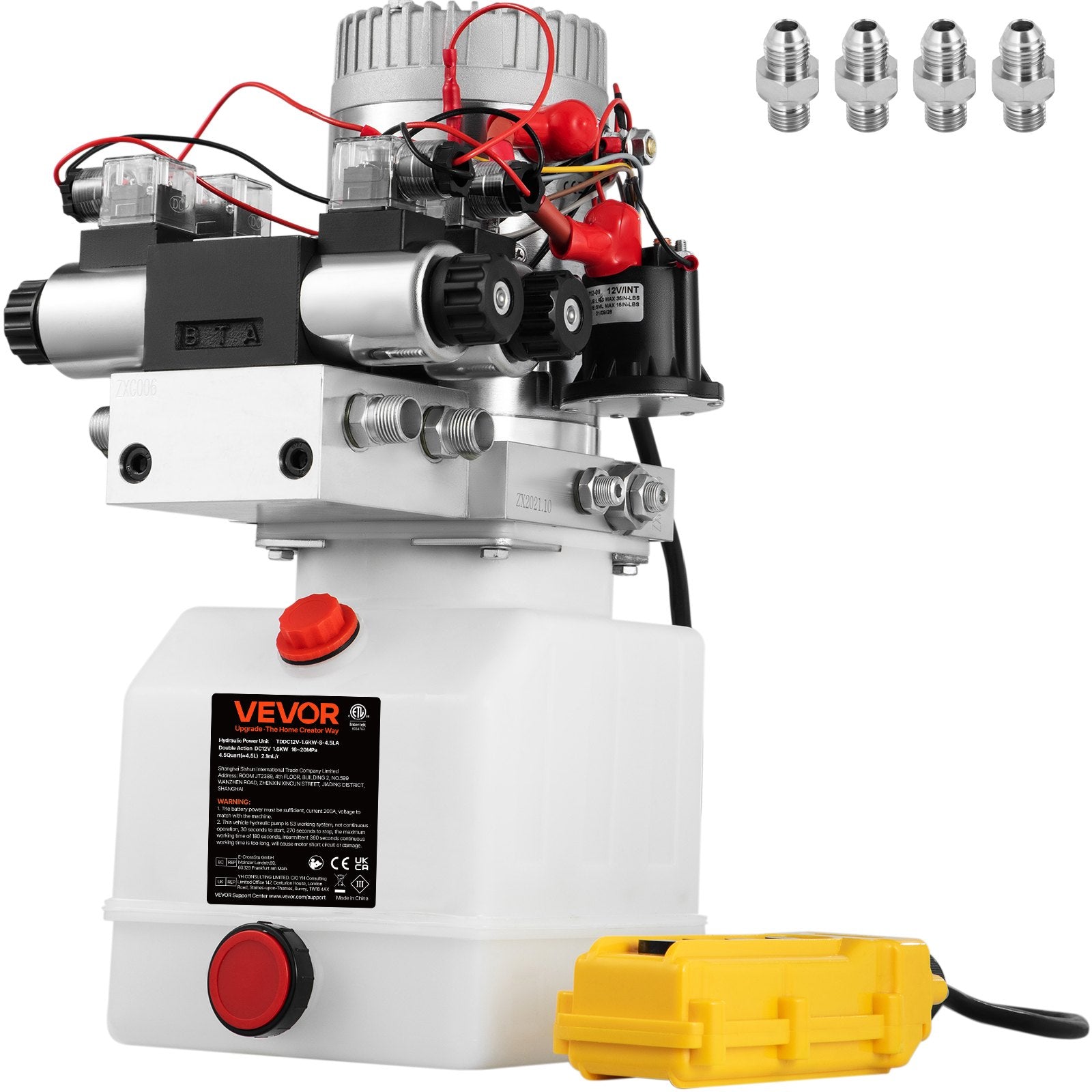

• Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 4-button detachable pendant ( 15 ft ) are included in the package.

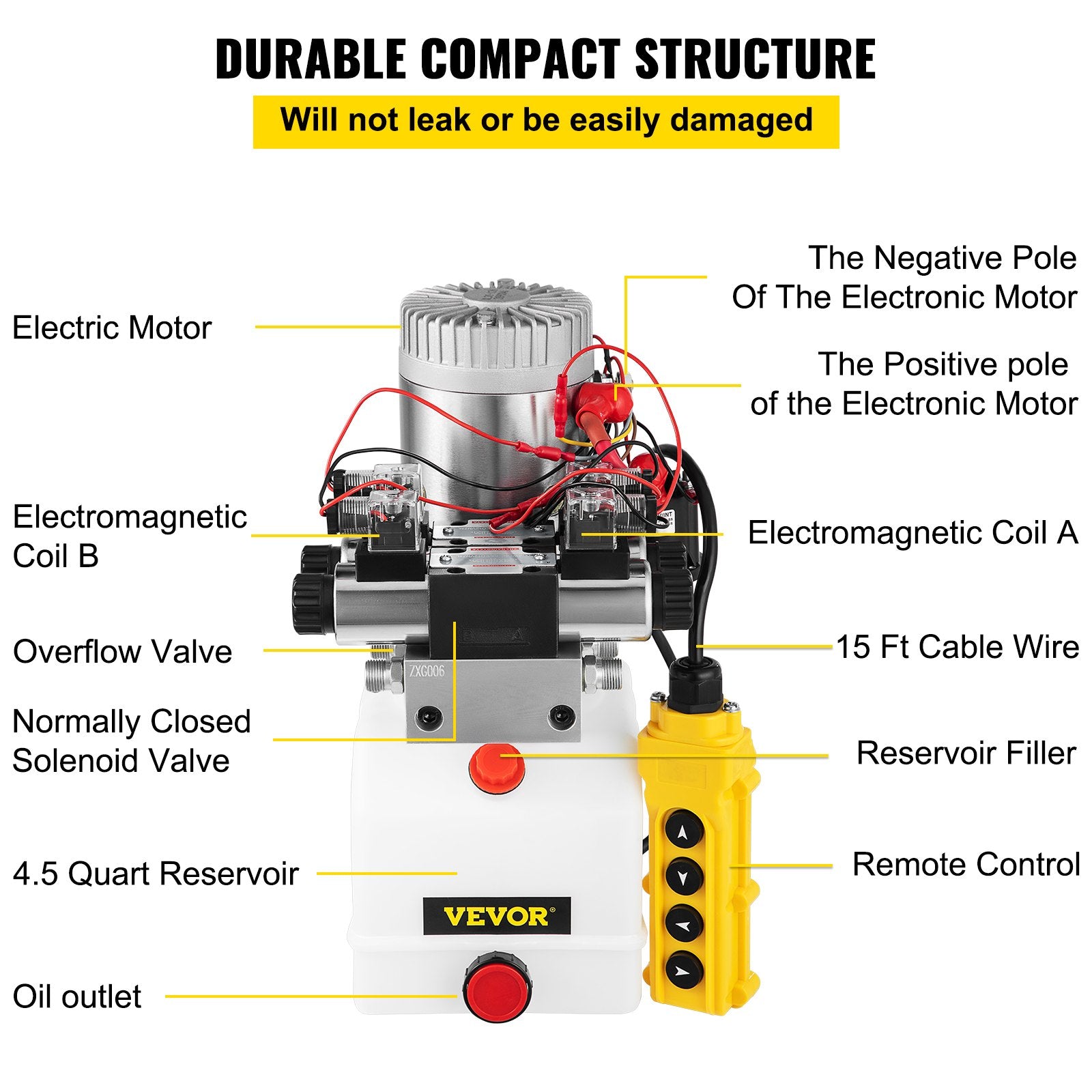

• Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.

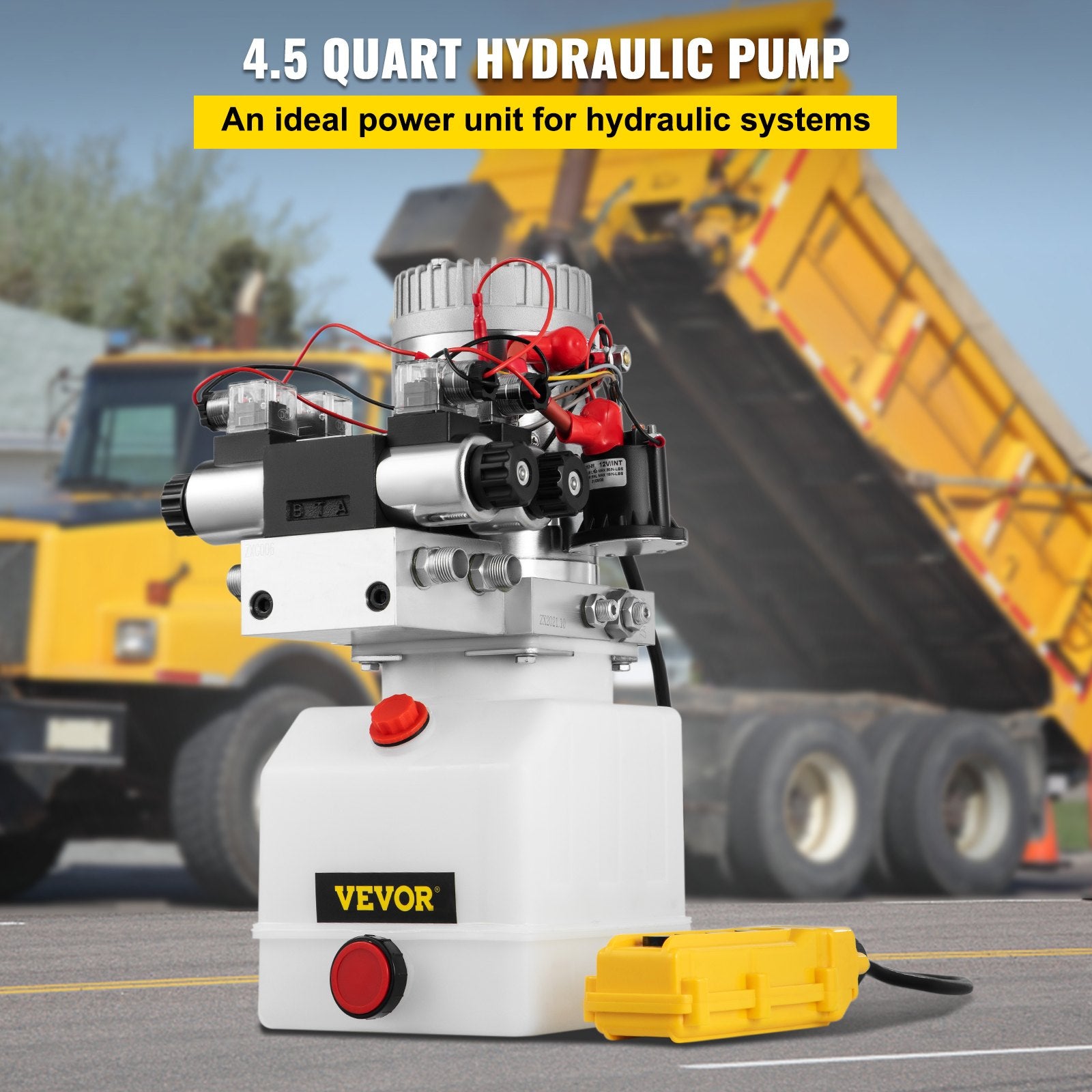

• Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
• Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

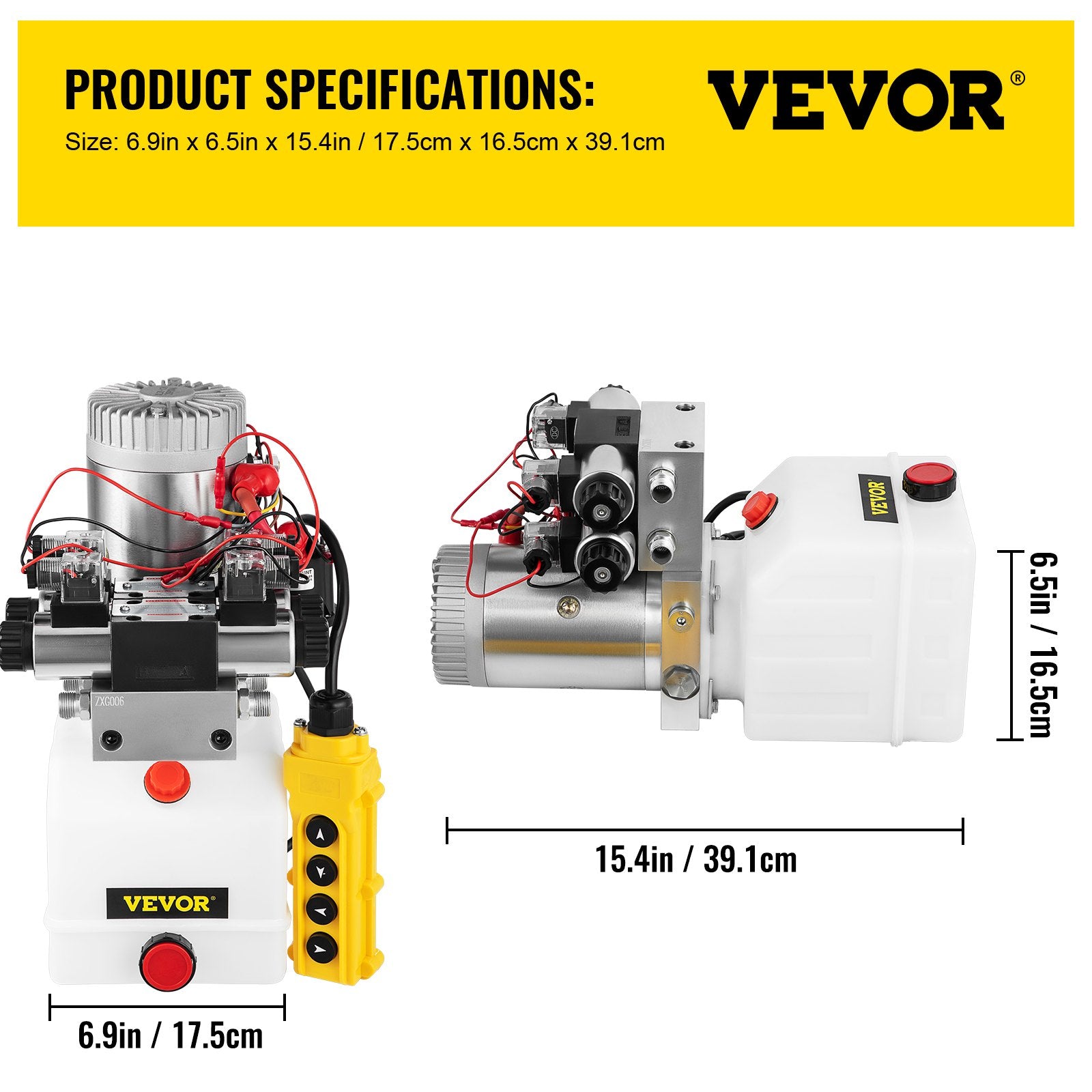

Specification

• Motor: 12VDC electric motor c/w relay
• Plug: 4.5-liter or 8-liter reservoir c/w drain plug
• Mount: Horizontal mounting
• Max Flow: 5 L/min
• Reservoir Capacity: 4.5L
• Flow: 2 GPM,Port size 3/8" BSP:
• Delivery Rate at 160 bar: approx. 5 L / min (adjustable from 40-200 bar as standard)
• Voltage: 12V DC
• Max PSI: 3200 PIS
• Features: Powerpack complete with suction strainer, return oil conveyer and filler breather,2.1cc/rev gear pump:
• Power: 1600w
