Features & Details

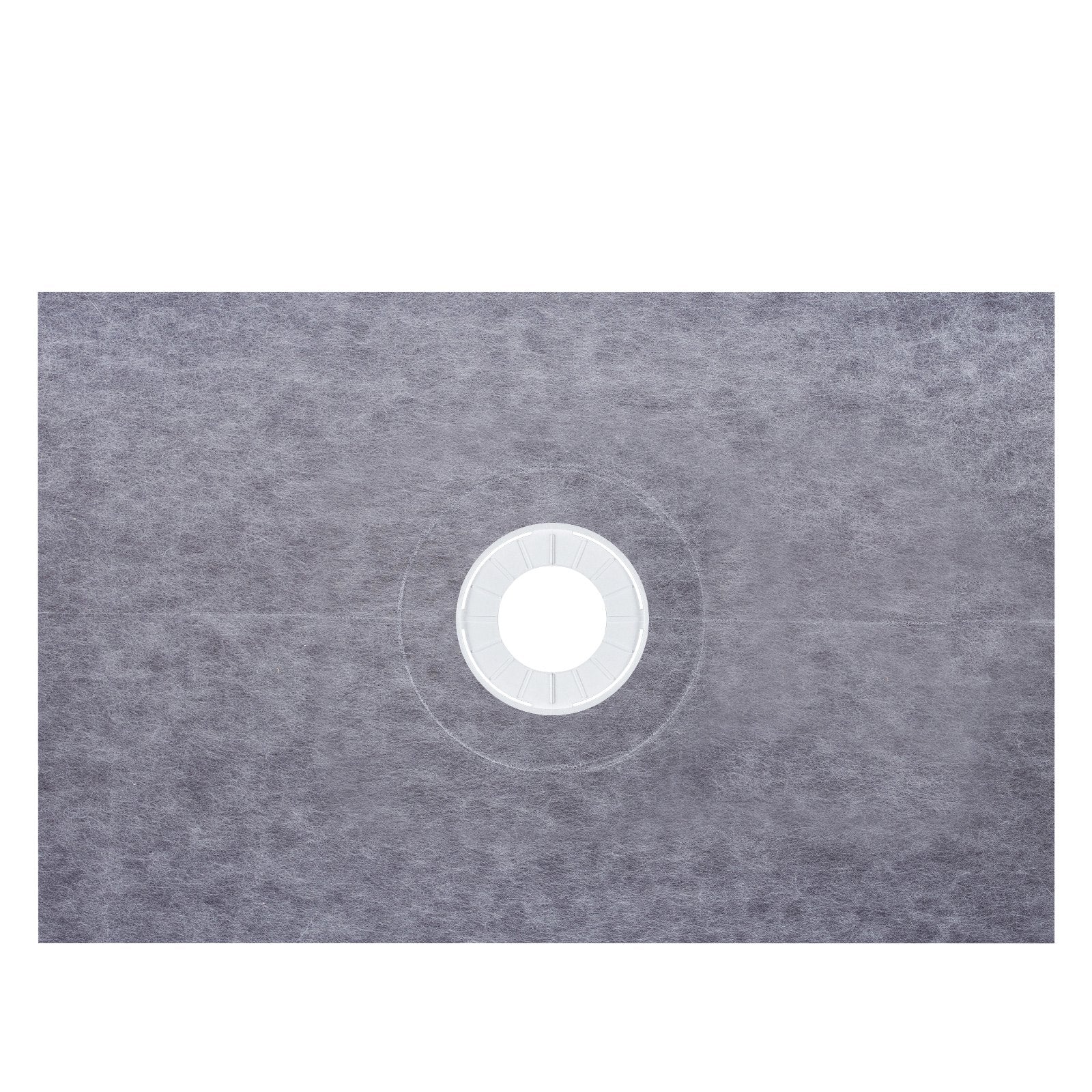

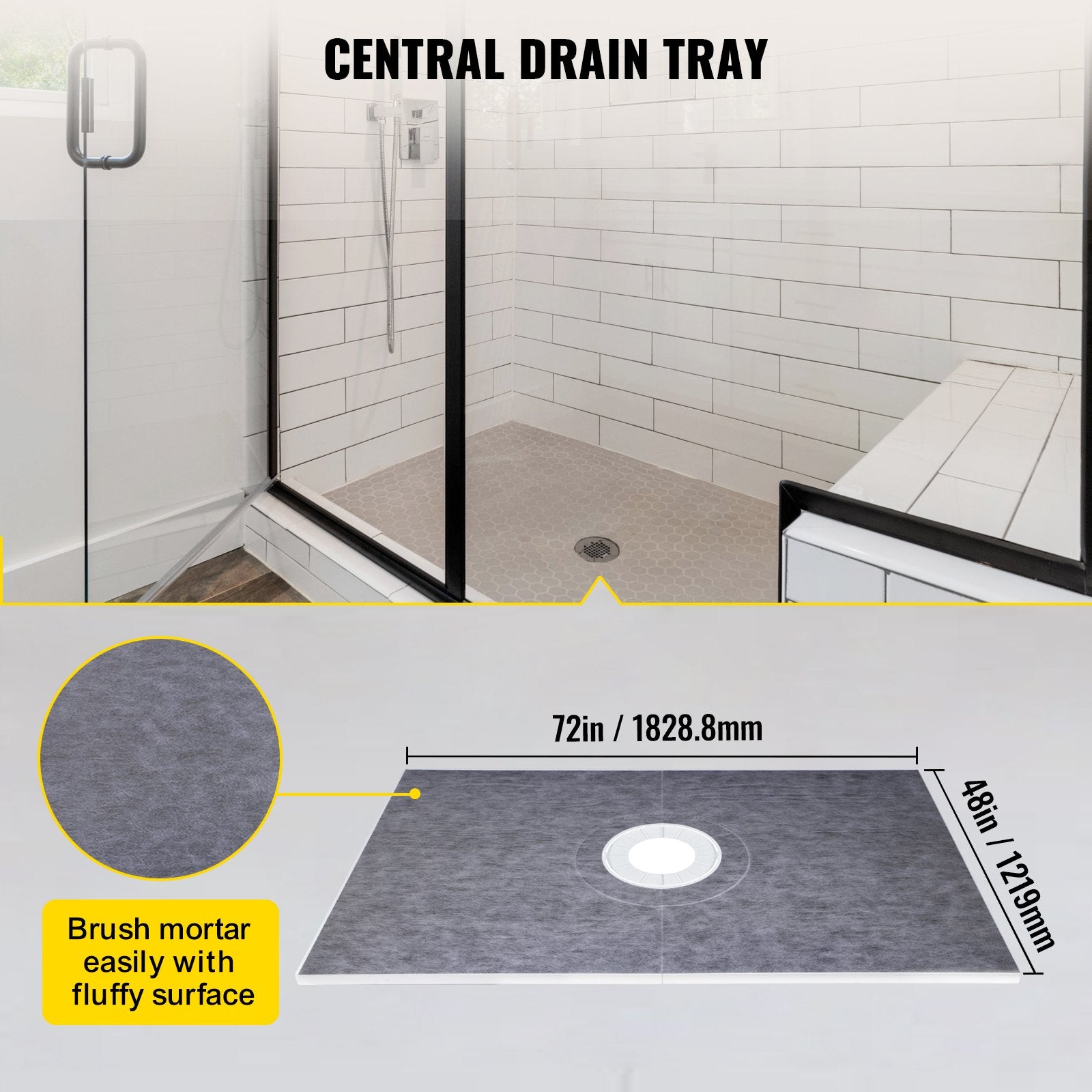

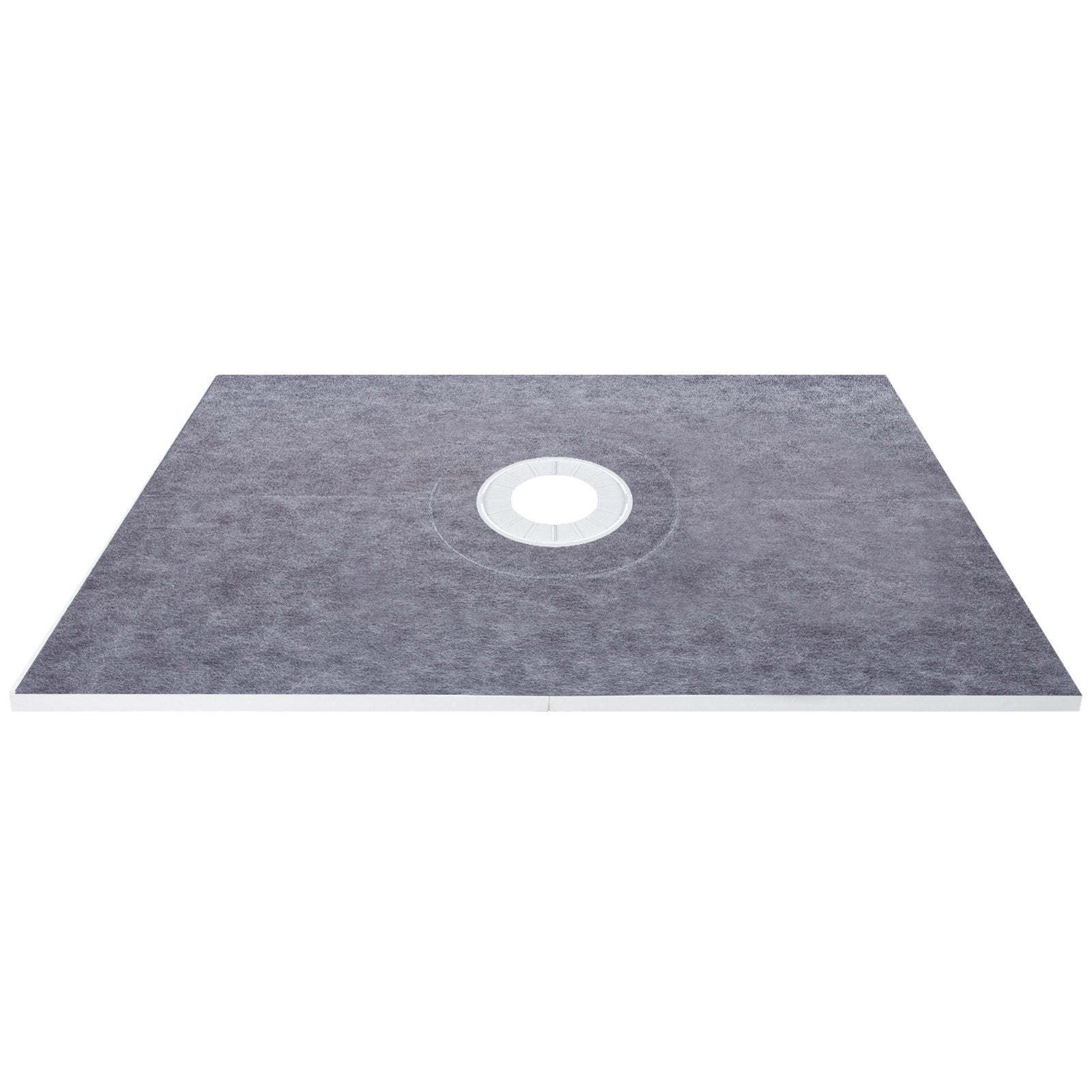

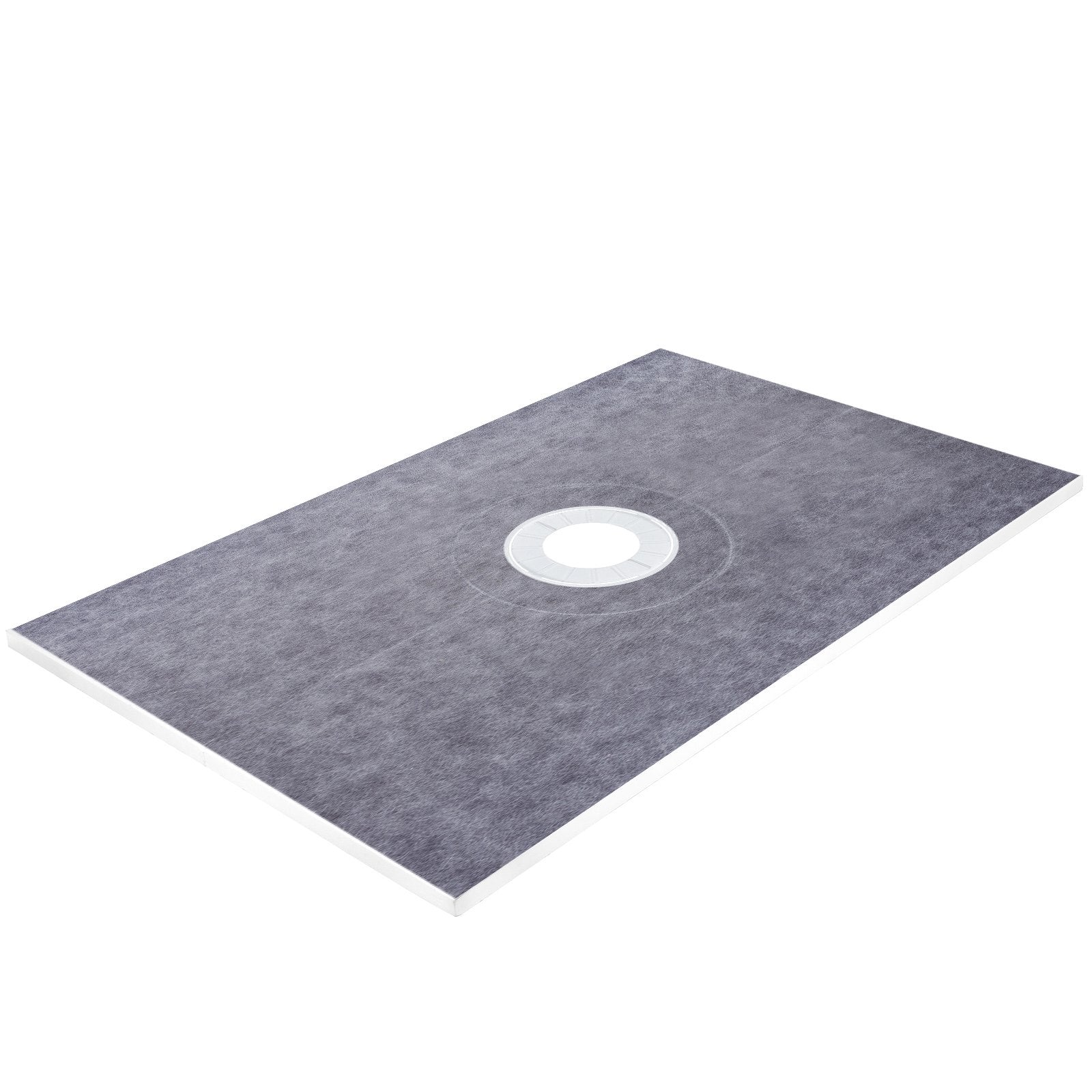

¡¾PREMIUM SHOWER TRAY¡¿ - Our shower curb kit provides you a shower tray made of EPS high-pressure foam board. Overall size: 48 in x 72 in (1219.2 mm x 1828.8 mm). The drainage hole is set in the middle with a 4 in (10 cm) diameter for effective water running. The shower tray is equipped with a gray water-impermeable membrane with fluffy texture on the surface, convenient for mortar brushing.

Key Features

• Product Detail: ¡¾PREMIUM SHOWER TRAY¡¿ - Our shower curb kit provides you a shower tray made of EPS high-pressure foam board. Overall size: 48 in x 72 in (1219.2 mm x 1828.8 mm). The drainage hole is set in the middle with a 4 in (10 cm) diameter for effective water running. The shower tray is equipped with a gray water-impermeable membrane with fluffy texture on the surface, convenient for mortar brushing. The tray forms a 5° inclination from four sides to the middle, which is convenient for drainage.

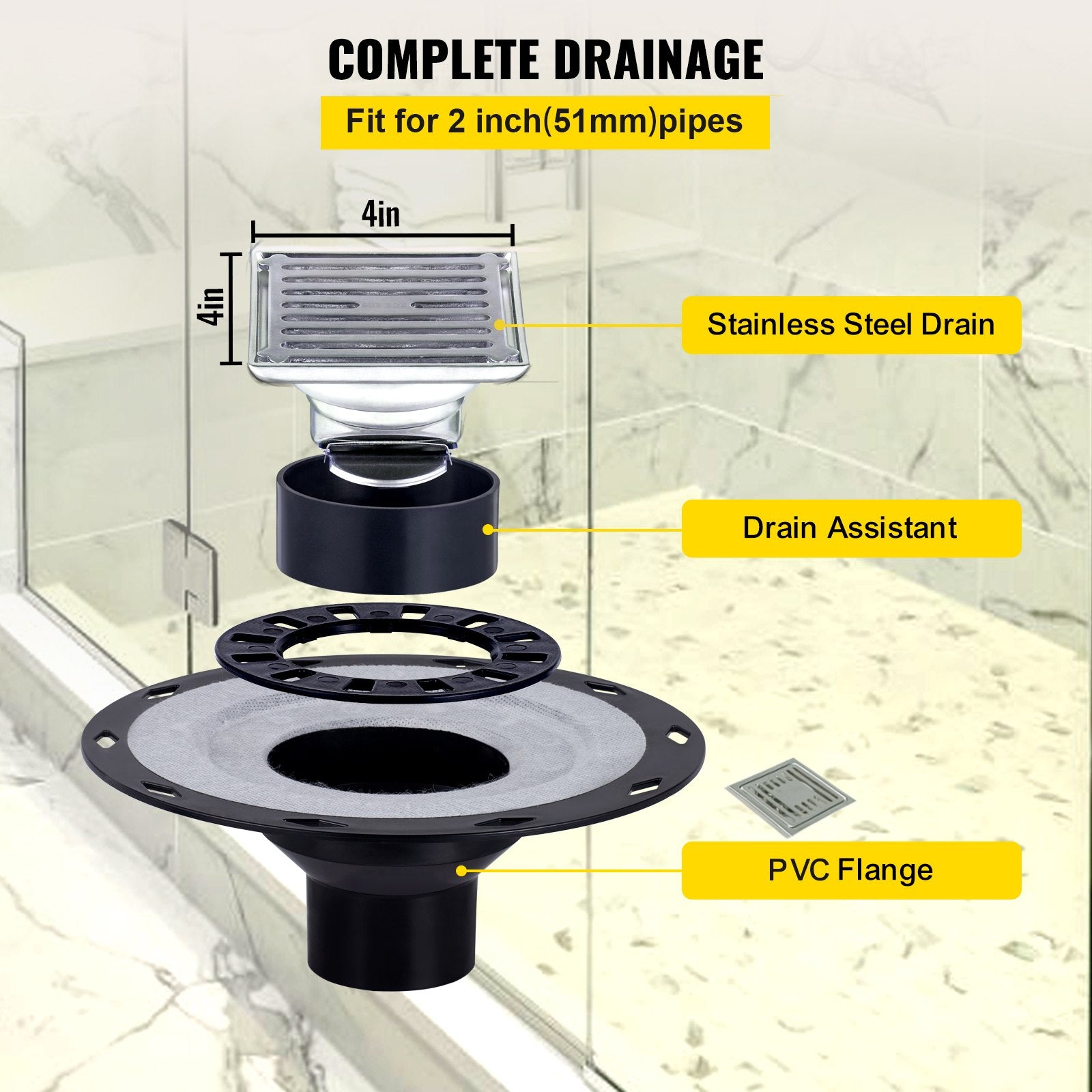

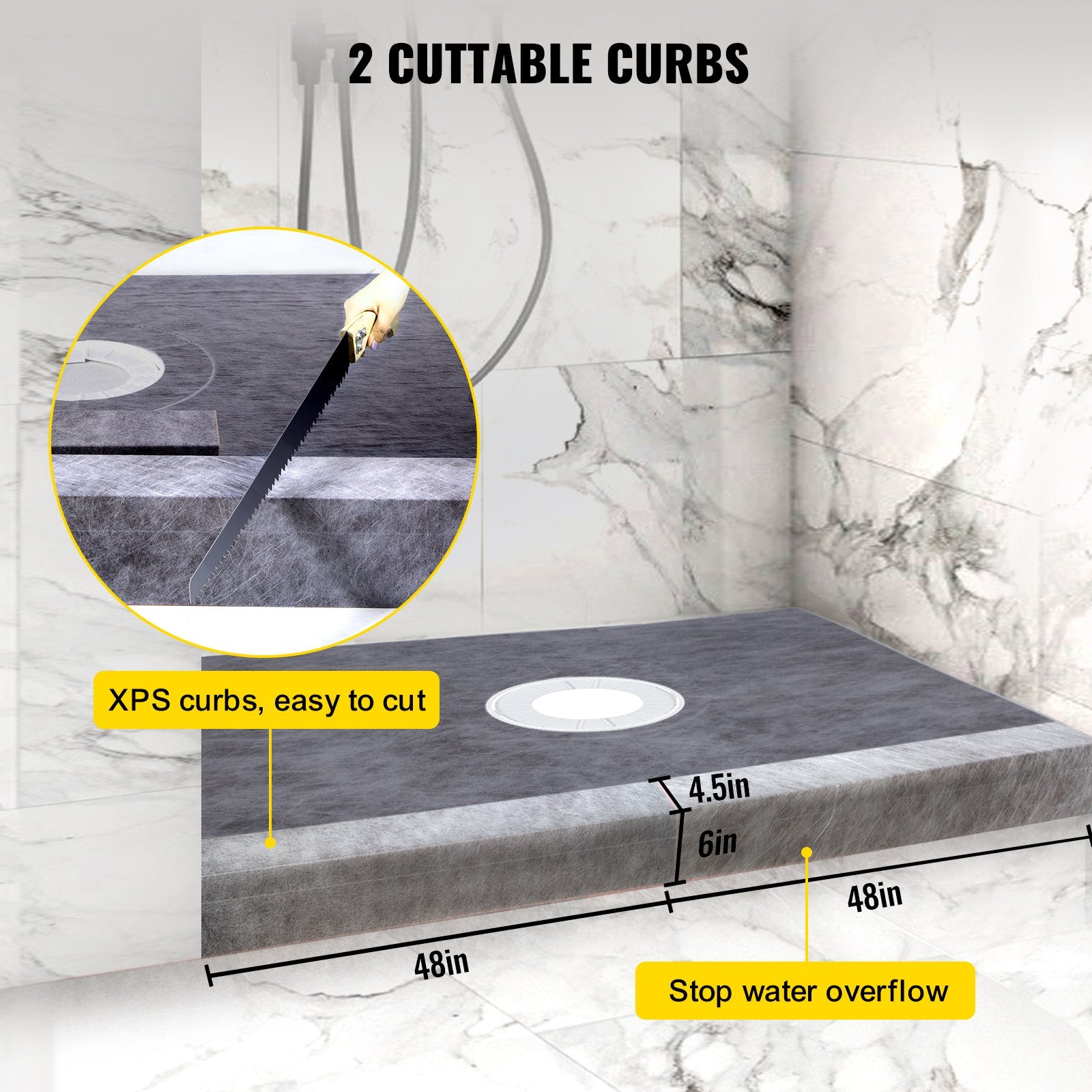

• Product Detail: ¡¾DRAINAGE ACCESSORIES¡¿ - The shower curb overlay includes a durable PVC flange and auxiliary drainage device (fit for 2 inch pipes) to ensure smooth water flowing. With a gravity automatic seal grate, pipes won¡¯t be blocked. In addition, we offer 2 shower curbs with the size of 48 inX4.5 inX6 in(1219.2 mmX114.3 mmX152.4 mm). Adopting XPS plastic extruded board, 2 shower curbs are easy to cut and can be adjusted according to the actual needs of the length.

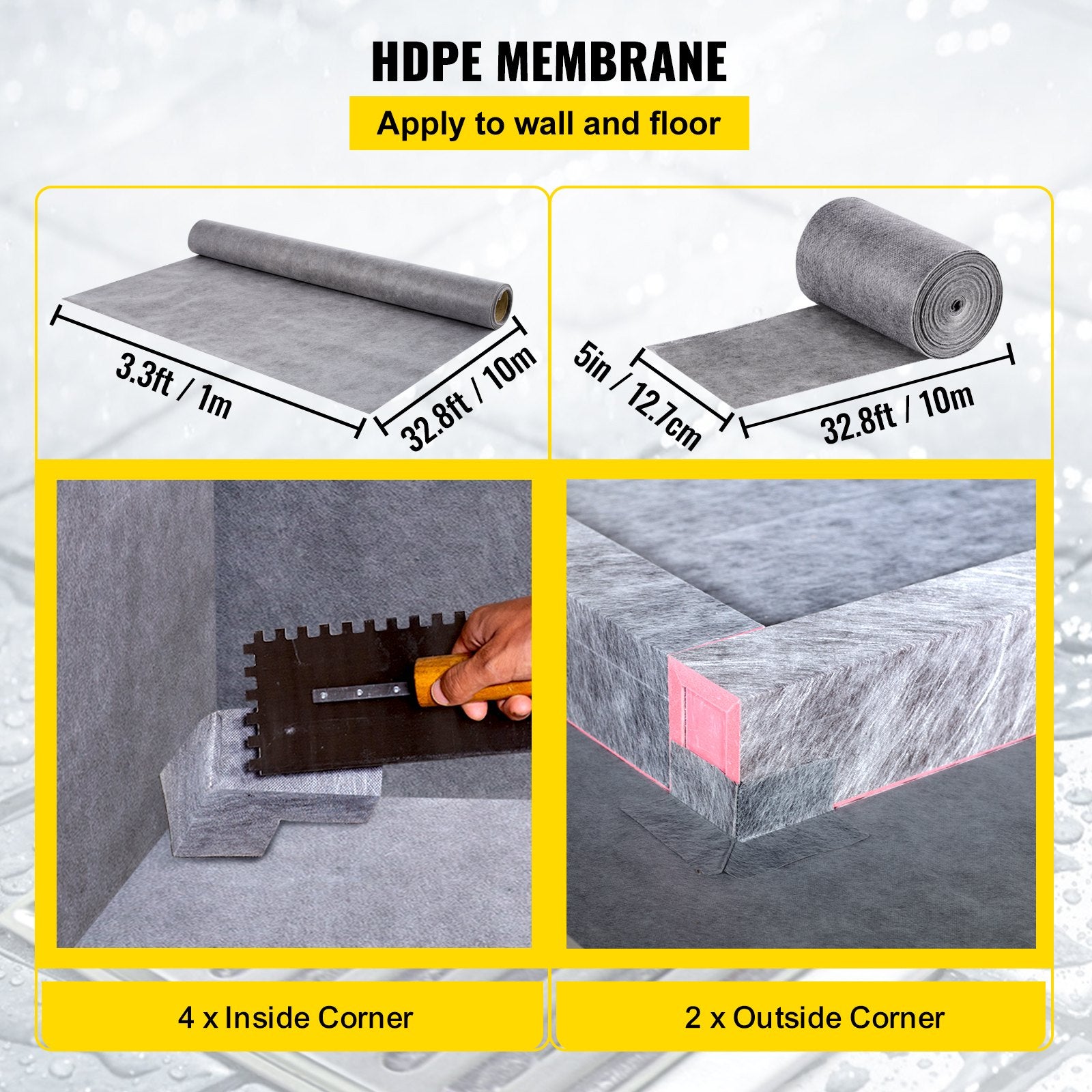

• Product Detail: ¡¾WATER IMPERMEABLE¡¿ - 2 rolls of HDPE material water-impermeable membrane are included in our shower base kit. Small roll size: 5 inX32.8 ft(12.7 cmX10 m). Large roll size: 3.3 ftX32.8 ft(1 mX10 m). You are allowed to choose the membrane for different areas of the wall or floor. For your quick use, 4 inside corners and 2 outside corners of the membrane are provided without time-consuming cutting.

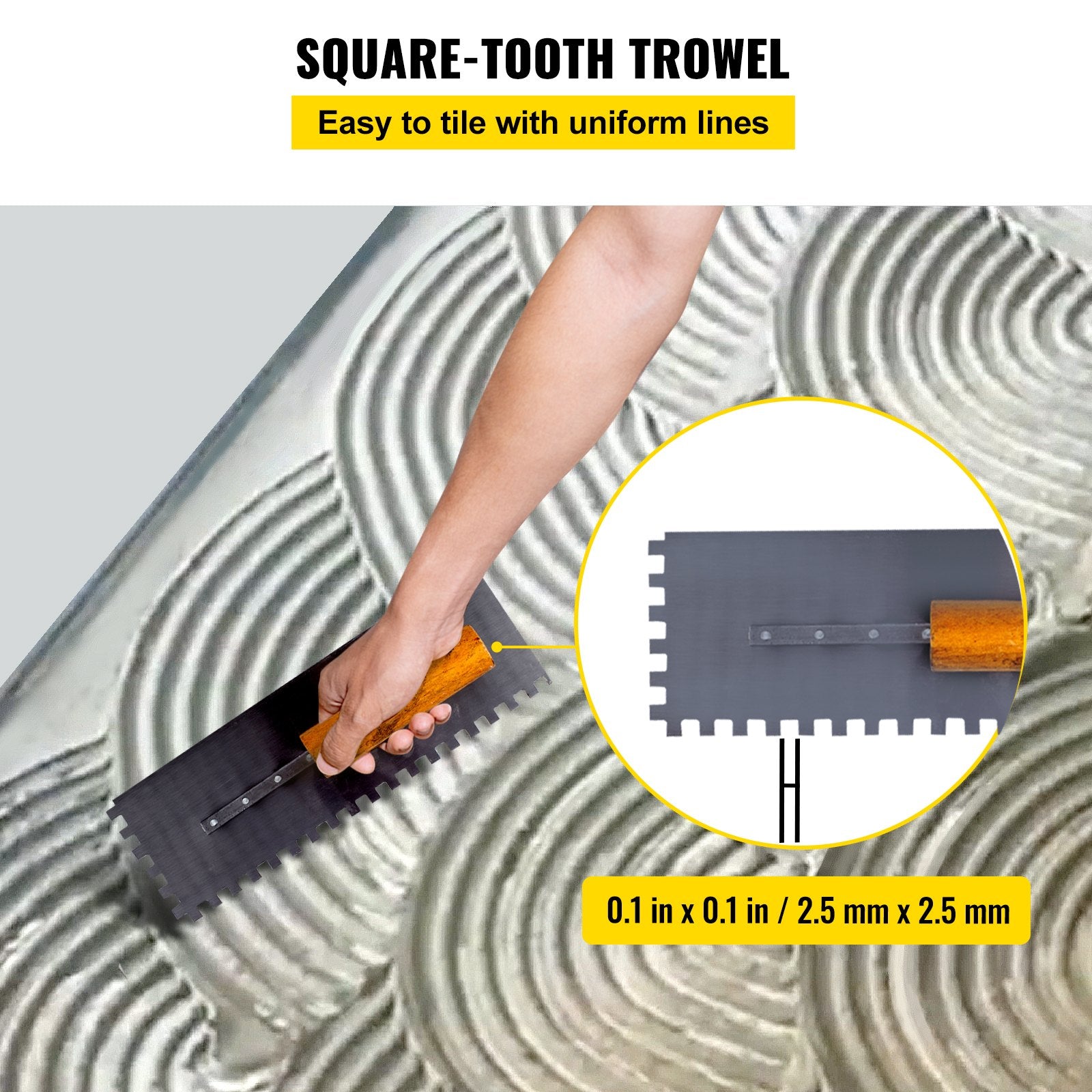

• Product Detail: ¡¾STAINLESS STEEL TROWEL¡¿ - We give you an excellent square-toothed stainless steel trowel for mortar brushing, which is not provided by other products. This trowel is solid and non-deformed. The trowel blade features square-serrated to keep the mortar on the surface uneven, enhancing the adhesion between the membrane and the wall or floor.

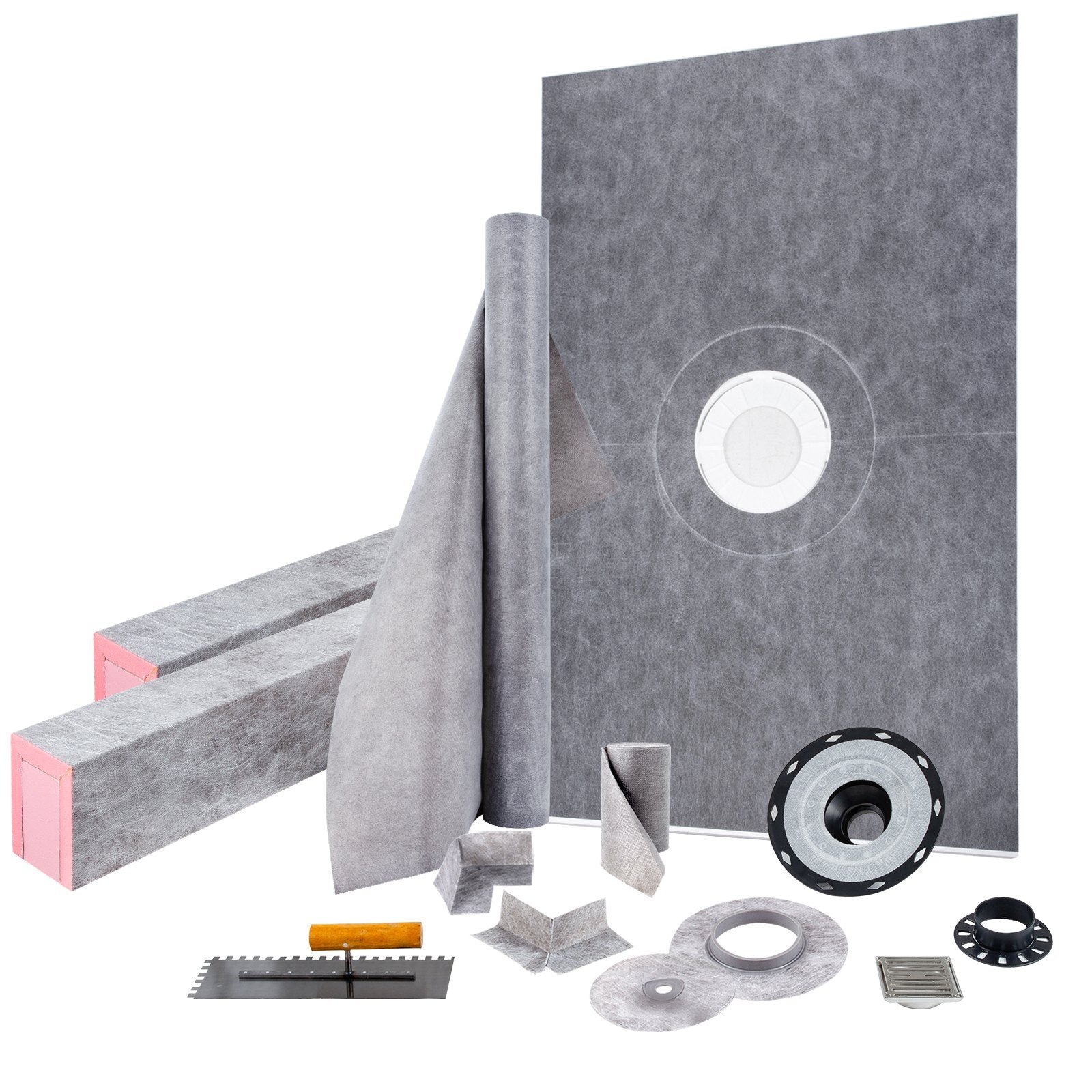

• Product Detail: ¡¾EFFORTLESS INSTALLATION¡¿ - Install a shower bed kit is not difficult and won¡¯t cost you a long time. It contains all the water-impermeable components, including the shower tray, flange, stainless steel drain, membrane, and shower curb, required to create a non-maintenance, watertight shower assembly. You should use an unmodified thin set to install it. Our product is a good choice for your water-impermeable bathroom.

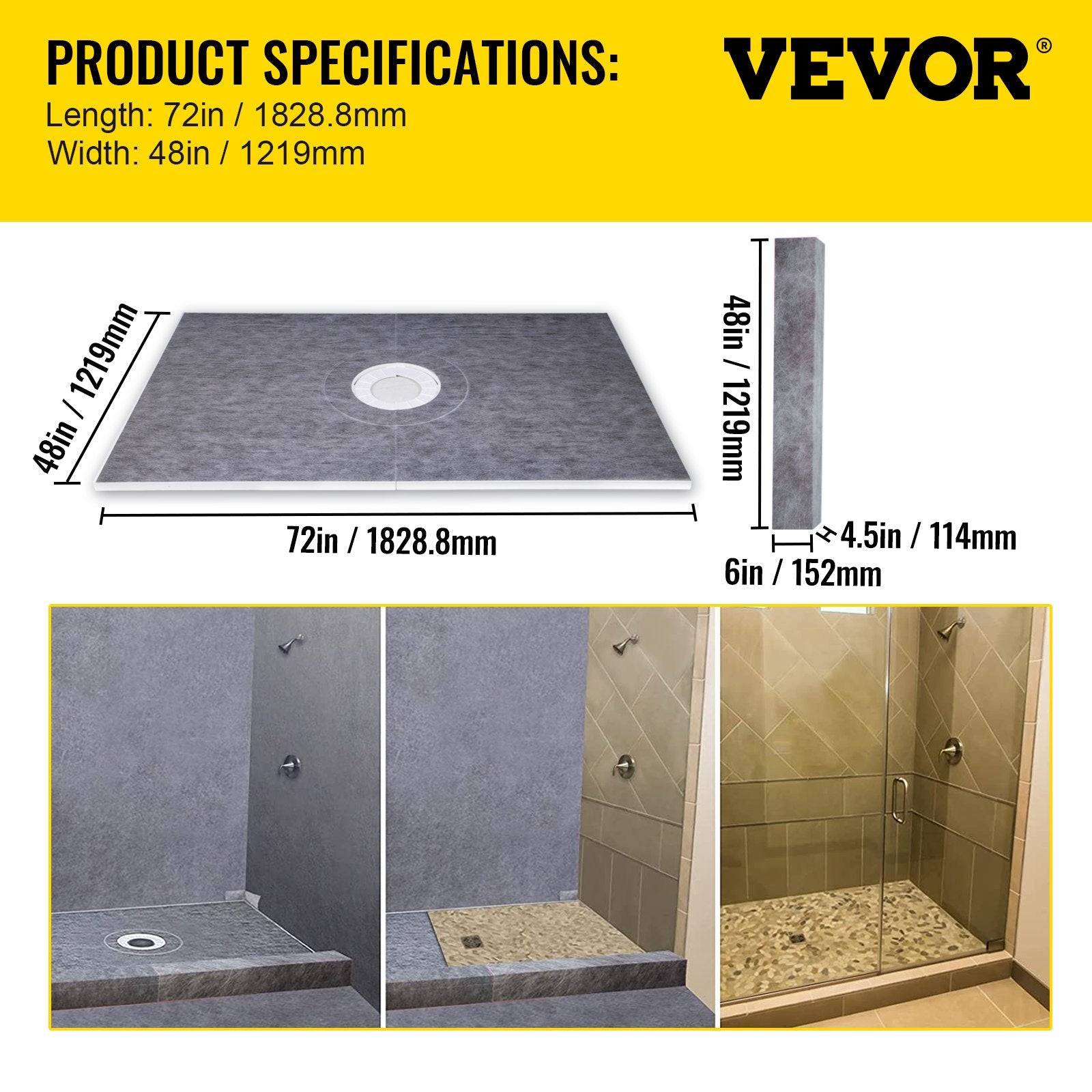

Specification

• Size of the Membrane: 121. 3 sq ft/ 11. 3 m2
• Material of the Flange: PVC
• Size of the Shower Tray (W x L): 48 in x 72 in/ 1219. 2 mm x 1828. 8 mm
• Size of the Grate (W x L): 4 in x 4 in/ 10 cm x 10 cm
• Model: VV-LYDZ-PVC4872Z
• Material of the Grate: 304 Stainless Steel
• Size of the Shower Curb (L x W x H): 48 inX4. 5 inX6 in/ 1219. 2 mmX114. 3 mmX152. 4 mm
